Piston Kit - Honda CR125 R ('92-'99) (53.95-55.95mm) - Wossner

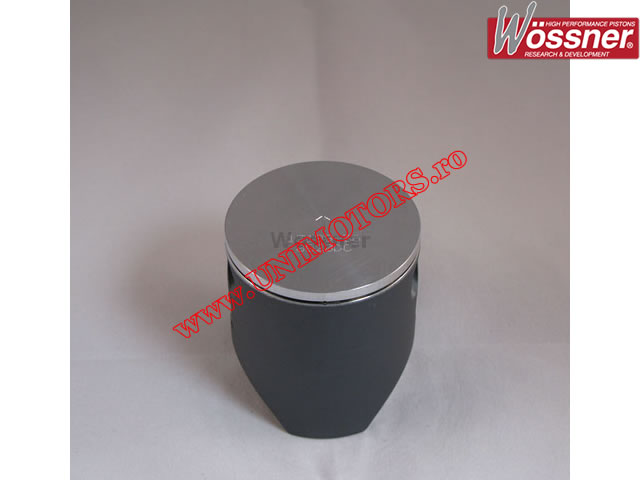

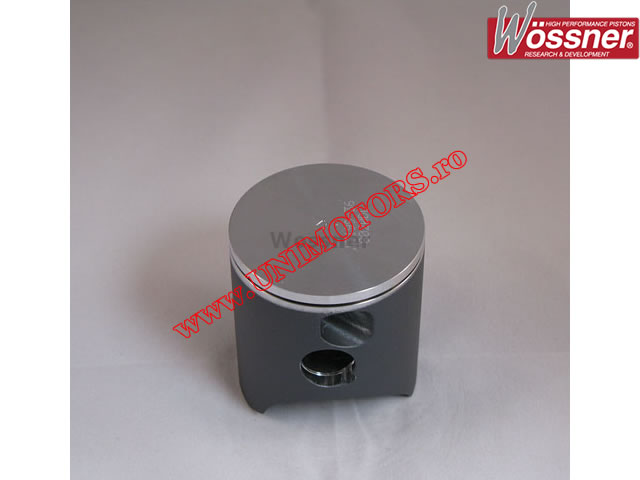

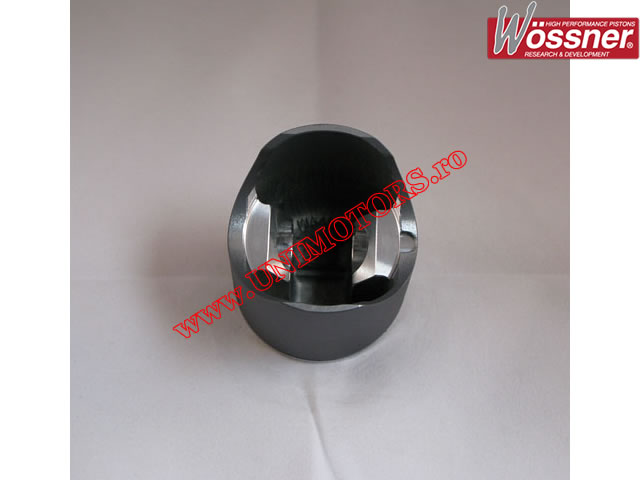

Forged piston kit Wossner for Honda CR 125R manufactured between 1992-1999.

The kit includes piston, ring, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 54.00mm
- thermal clearance: 0.05mm
- pin-to-cap distance (measured from the center of the pin): 28.00mm
- piston pin dimensions: 15x10x45mm.

Available piston sizes:
- A (53.95 mm)
- B (53.96mm)
- C (53.97mm)
- D (53.98mm)
- +0.50 mm
- +1.00mm
- +2.00mm
