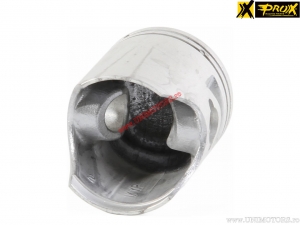

Piston Kit - Honda NH 90 - 90 2T - ProX

Please select the piston size from the box above.

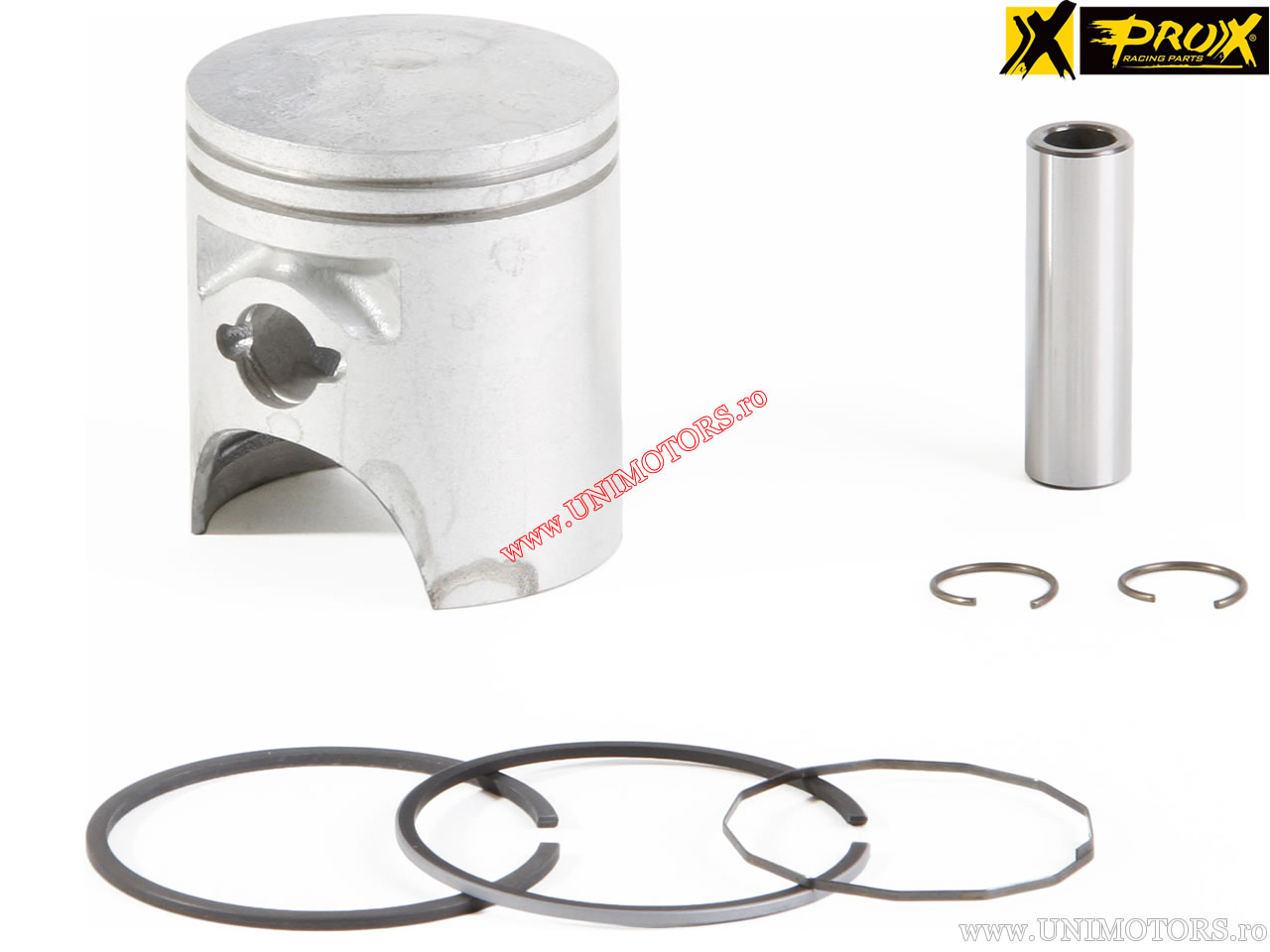

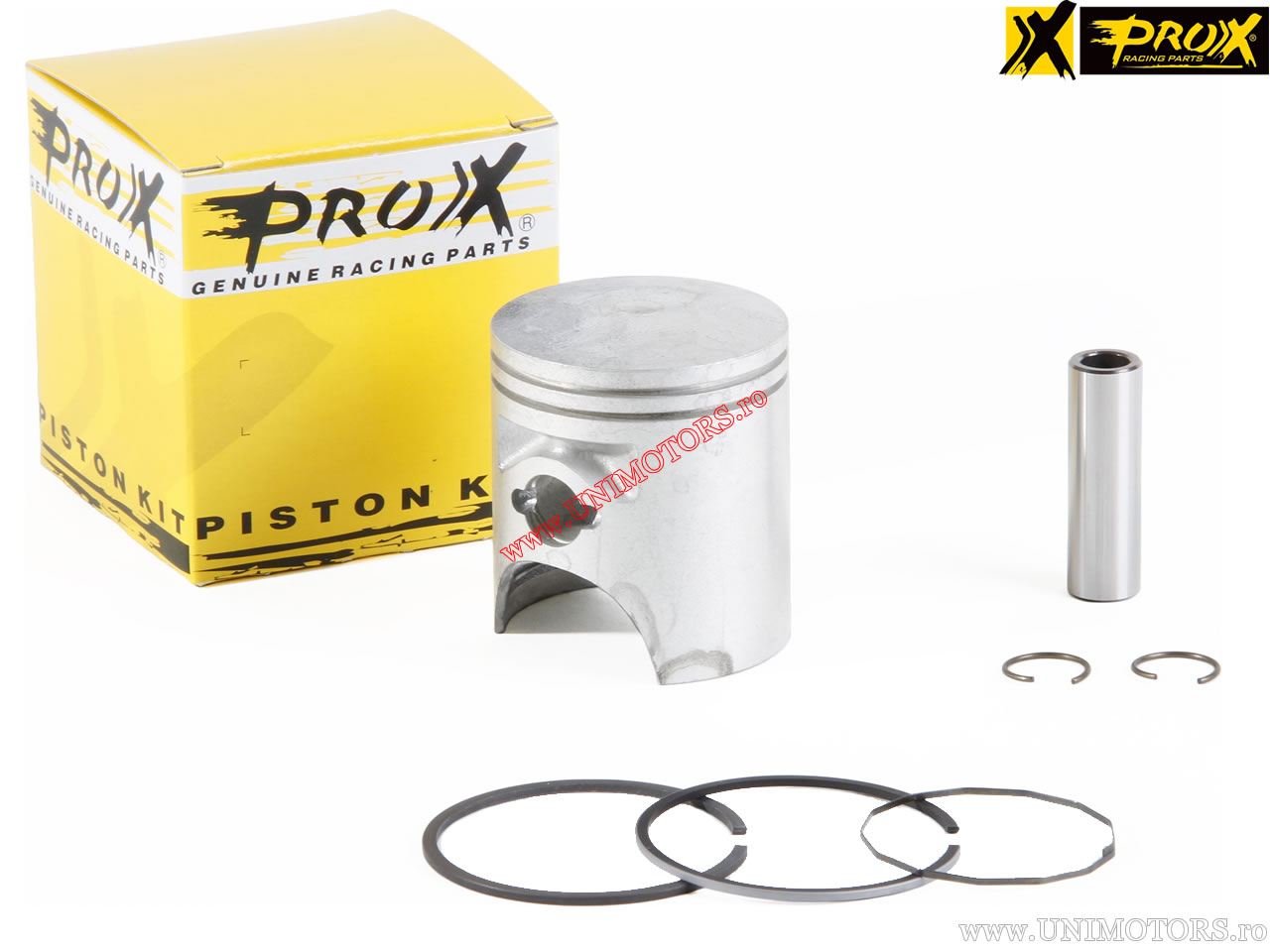

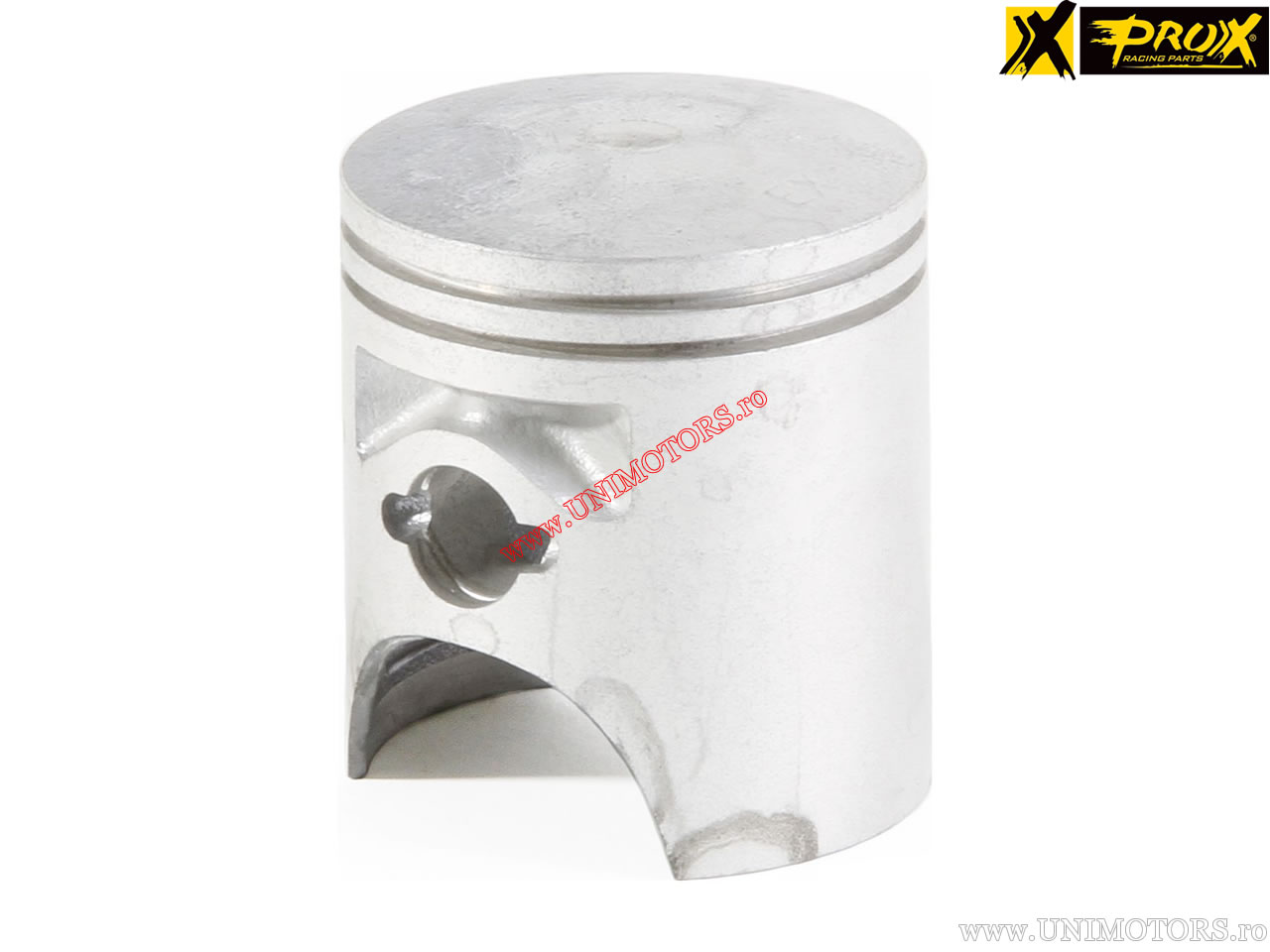

ProX piston kit for Honda NH 90 - 90cc 2T. The complete application list can be found below.

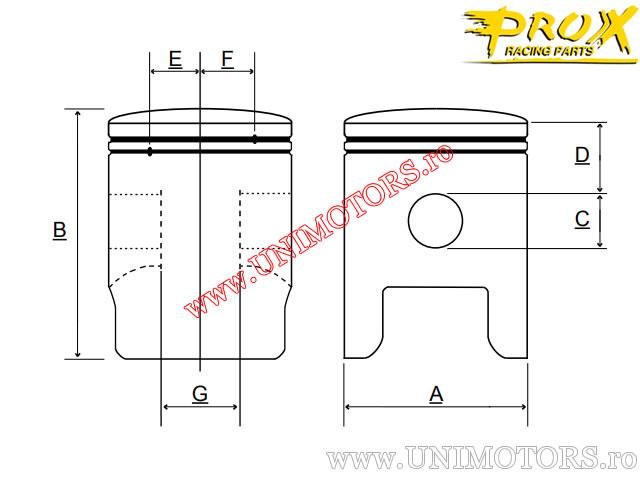

Technical specifications:
- standard cylinder diameter (factory diameter): 48.00 mm
- engine type: 2-stroke
- total piston length (B): 55.50 mm
- piston pin diameter (C): 12.00 mm
- compression height (D): 19.00 mm
- pin ring position measured from center (E): 13.50 mm
- pin ring position measured from center (F): 13.50 mm
- internal distance of piston pin (G): 15.50 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- standard (48.00 mm)
- +1.00mm (49.00 mm)
- +1.50mm (49.50 mm)
