Piston Kit - Honda New Dio 50 - 50 2T - ProX

Please select the piston size from the box above.

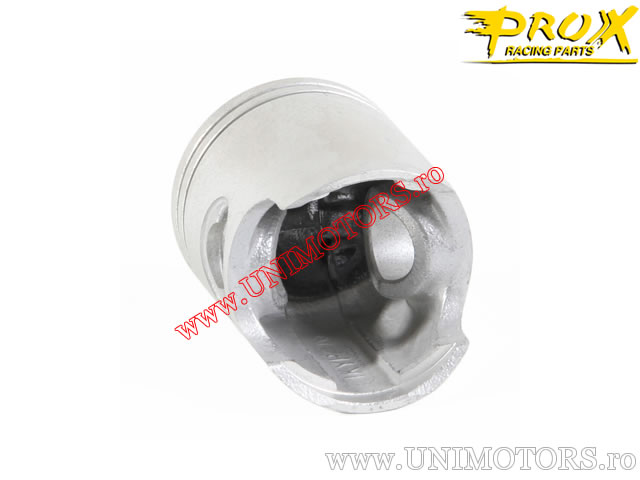

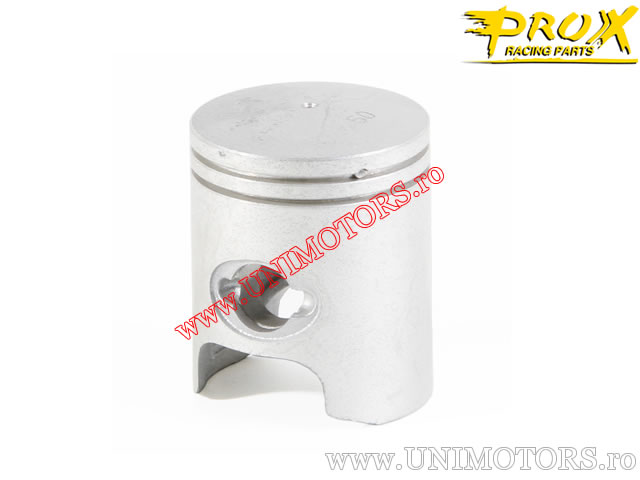

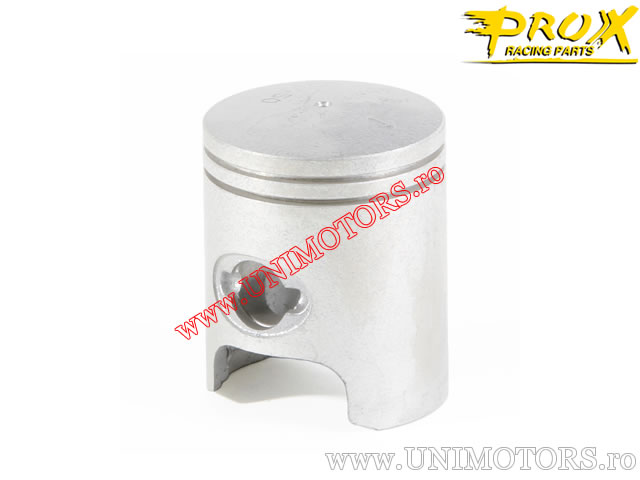

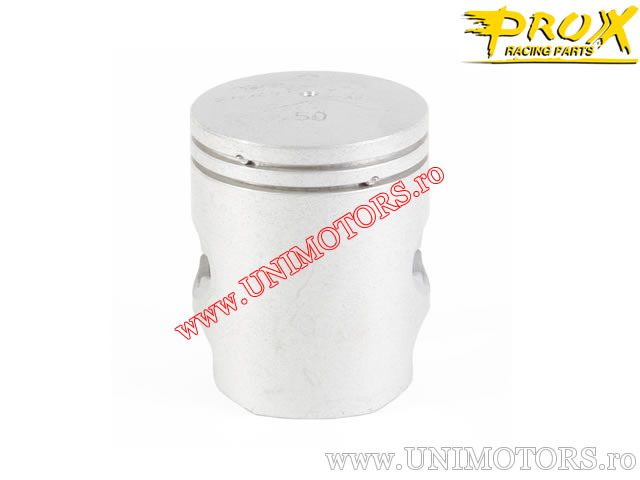

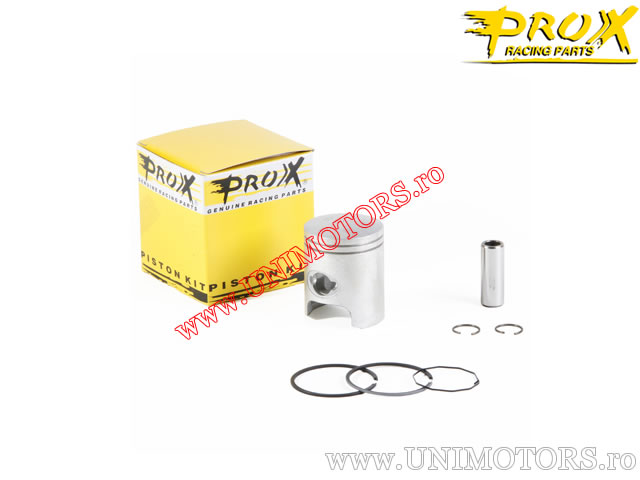

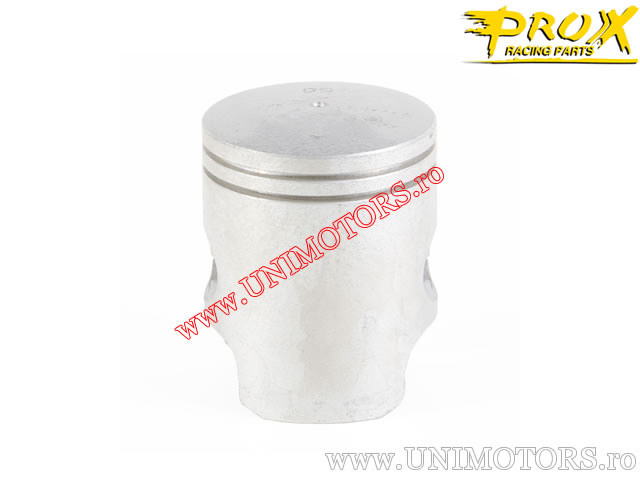

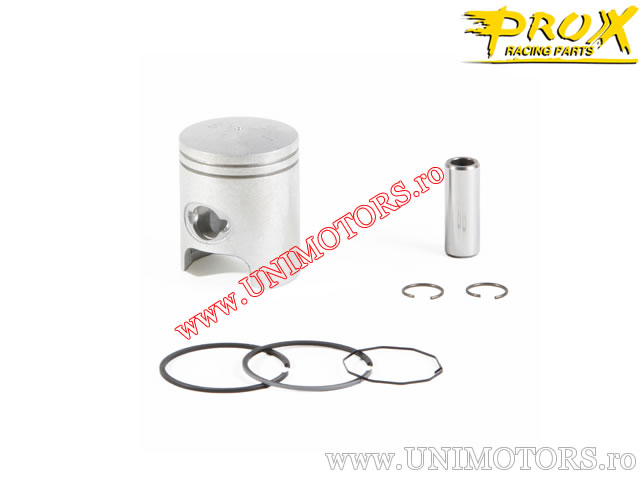

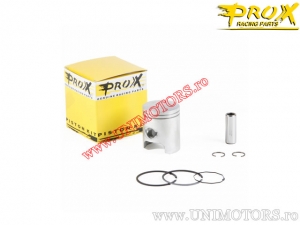

ProX piston kit for Honda New Dio 50 2T - 50cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 40.00 mm
- engine type: 2-stroke

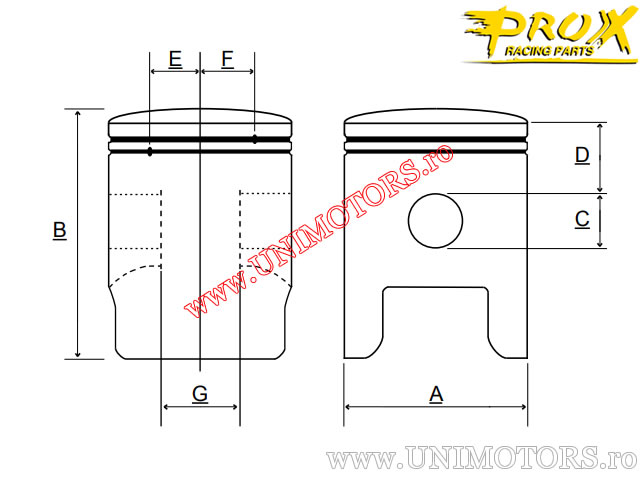

- total piston length (B): 51.00 mm
- piston pin diameter (C): 12.00 mm
- compression height (D): 19.25 mm
- pin ring position measured from center (E): 11.00 mm
- pin ring position measured from center (F): 11.00 mm
- internal distance of piston pin (G): 15.00 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- +1.50mm (41.50 mm)
- +2.00mm (42.00 mm)
