Piston Kit - Honda XL250 ('91-'96) / XR250 R ('86-'04) (72.94-76.94mm) - Wossner

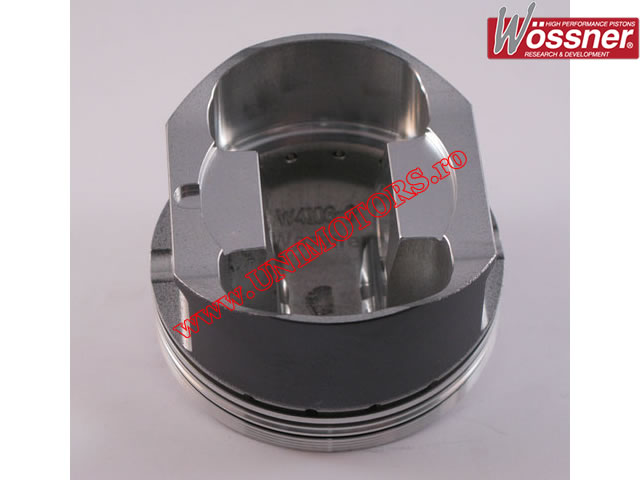

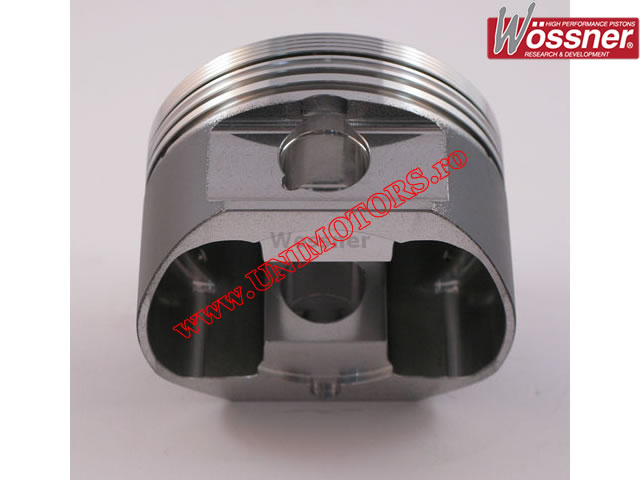

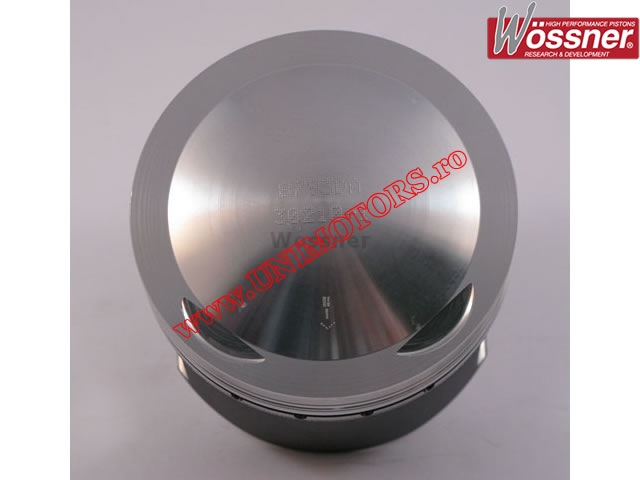

Forged piston kit Wossner for Honda XL250 (1991-1996) / XR 250 (1986-2004).

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 73.00mm
- thermal clearance: 0.06mm
- number of rings: 3 (two compression / one oil)
- compression ratio: 10.50:1 (increased compression 10.50:1 compared to 9.30:1 OEM)
- pin-to-cap distance (measured from the center of the pin): 25.00mm
- piston pin dimensions: 17x10x51mm.

Available piston sizes:
- standard (72.94 mm)
- +0.50mm
- +1.00mm
- +2.50mm
- +4.00mm
