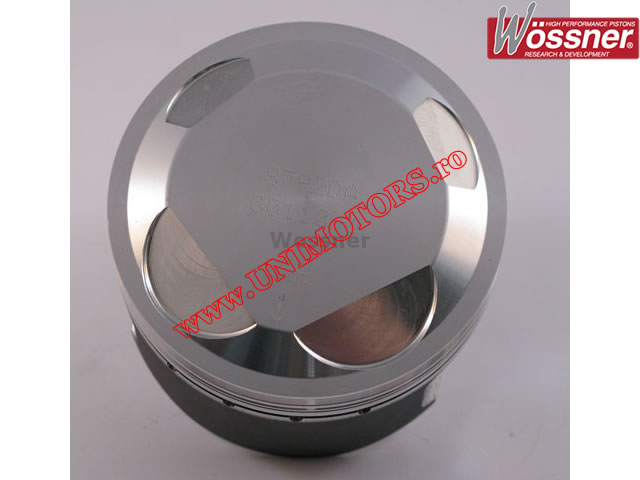

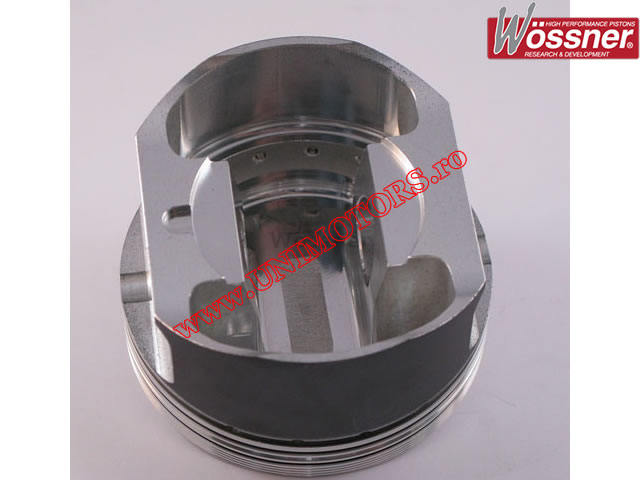

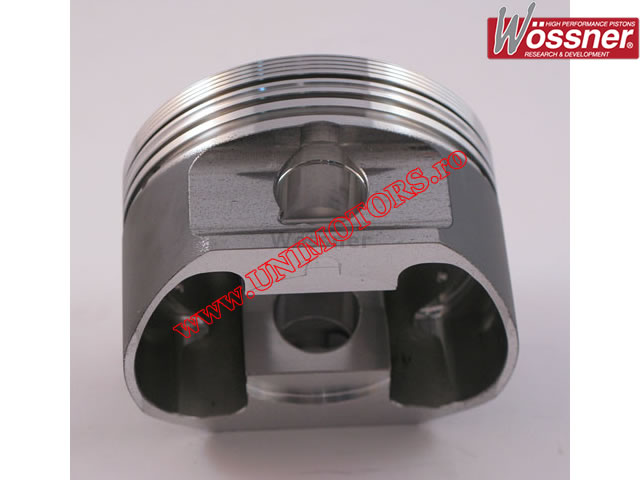

Forged piston kit Wossner for Honda XL250 R / XR 250 manufactured between 1984-1987.
The kit includes piston, rings, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 75.00mm
- thermal clearance: 0.06mm
- number of rings: 3 (two compression / one oil)
- compression ratio: 10.2:1 (OEM)
- pin-to-cap distance (measured from the center of the pin): 25.40mm
- piston pin dimensions: 17x10x51mm.
Available piston sizes:
- standard (74.94 mm)
- +0.50mm
- +1.00mm
