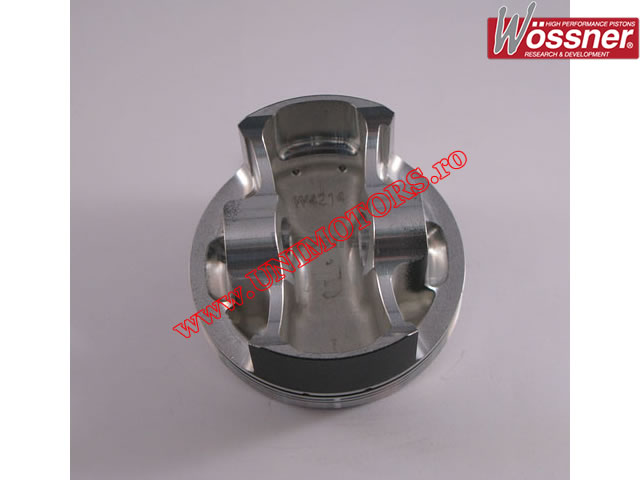

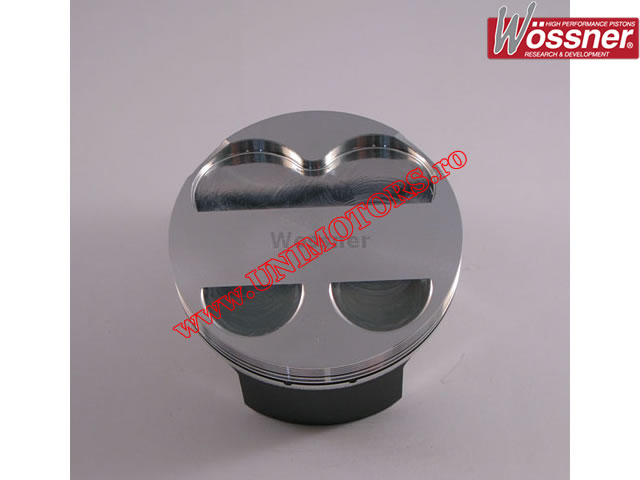

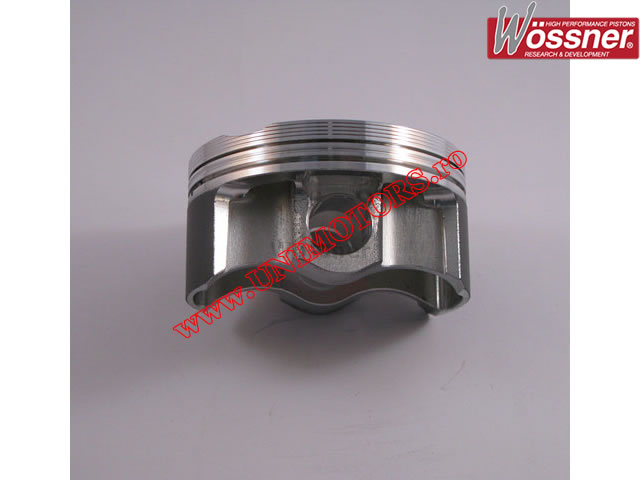

Piston Kit - Husqvarna TC250 / TE250 4T ('03-'05) (75.96-75.98mm) - Wossner

Forged piston kit Wossner for Husqvarna TC 250 / TE 250 4-stroke models manufactured between 2003-2005.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 76.00mm
- thermal clearance: 0.04mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 12.90:1 (increased compression 12.90:1 compared to 12.50:1 OEM)
- pin-to-cap distance (measured from the center of the pin): 23.50mm
- piston pin dimensions: 16x9x45mm.

Available piston sizes:
- A (75.96 mm)
- B (75.97 mm)
- C (75.98 mm)
