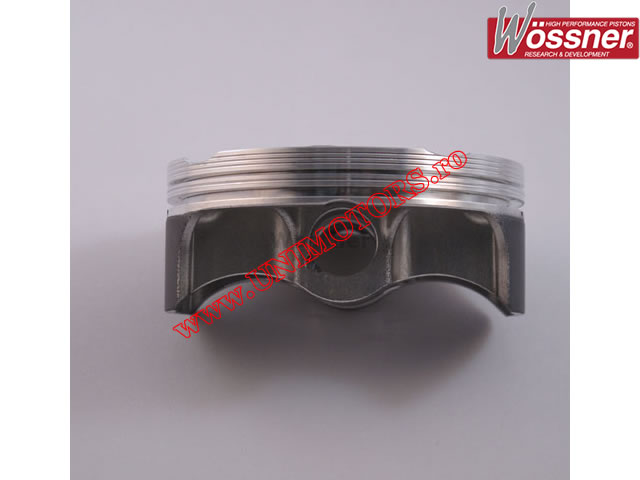

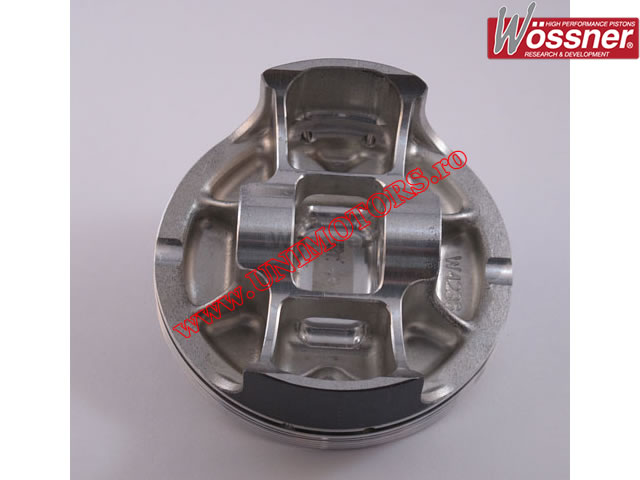

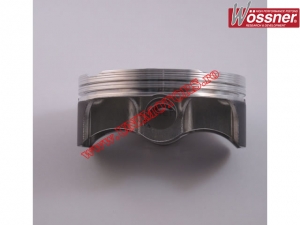

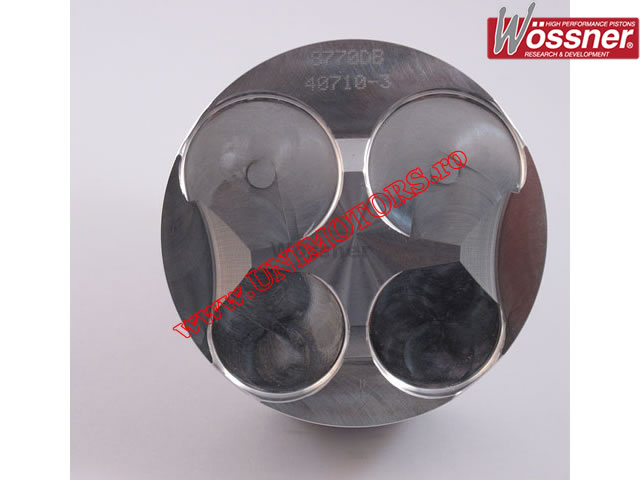

Piston Kit - Husqvarna TC250 (injection) ('10-'11) (78.95-78.97mm) - Wossner

Forged piston kit Wossner for Husqvarna TC 250 (fuel injection) manufactured between 2010-2011.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 79.00mm
- thermal clearance: 0.05mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 14.00:1 (increased compression 14.00:1 compared to 13.60:1 OEM)
- pin-to-cap distance (measured from the center of the pin): 18.00mm
- piston pin dimensions: 14x8x38.5mm.

Available piston sizes:
- A (78.95 mm)
- B (78.96 mm)
- C (78.97 mm)
