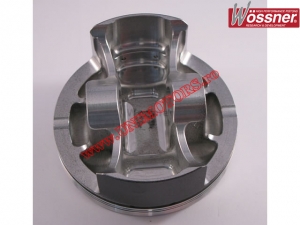

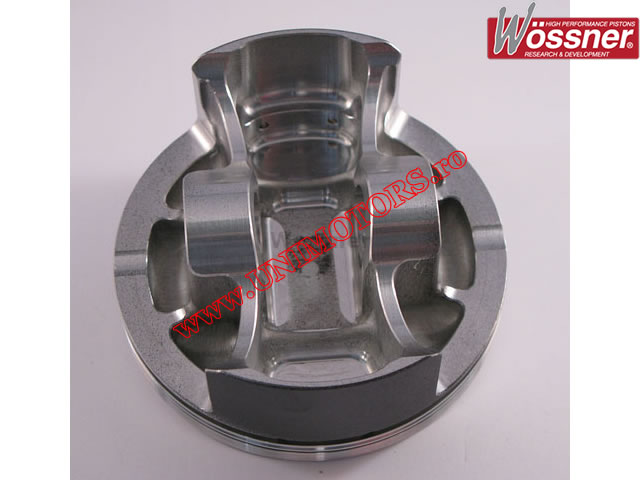

Piston Kit - Husqvarna TC450 / TE450 / SMR450 ('03-'05) (96.94-96.96mm) - Wossner

Forged piston kit Wossner for Husqvarna TC 450 / TE 450 / SMR 450 manufactured between 2003-2005.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 97.00mm
- thermal clearance: 0.06mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 12.00:1 (OEM)
- pin-to-head distance (measured from the center of the pin): 24.50mm
- piston pin dimensions: 20x10x46mm.

Available piston sizes:
- A (96.94mm)
- B (96.95mm)
- C (96.96mm)
