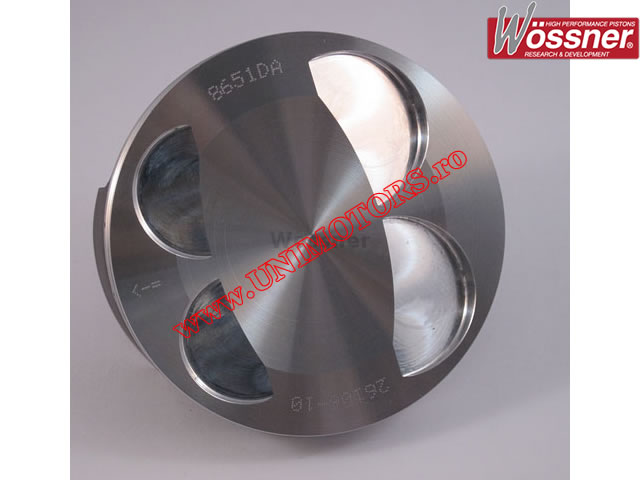

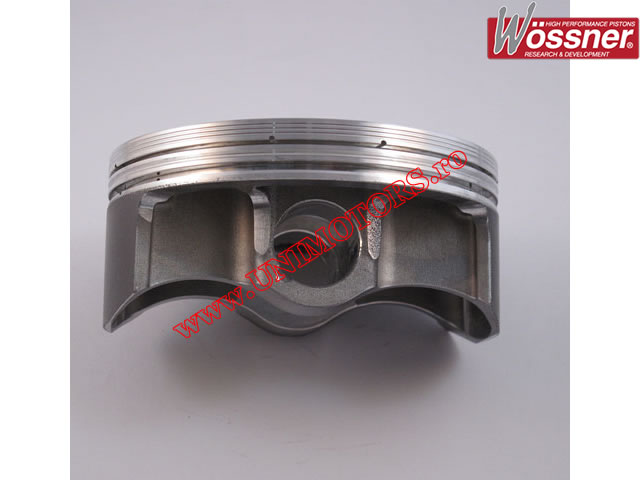

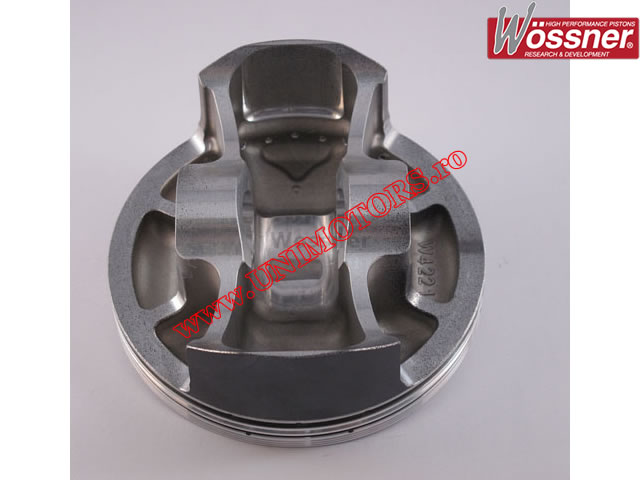

Forged piston kit Wossner for Husqvarna TC 450 / TE 450 / SMR 450 manufactured between 2006-2010.
The kit includes piston, rings, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 97.00mm
- thermal clearance: 0.04mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 13.00:1 (increased compression 13.00:1 compared to 12.90:1 OEM)
- pin-to-cap distance (measured from the center of the pin): 24.50mm
- piston pin dimensions: 20x13x51mm.
Available piston sizes:
- A (96.96mm)
- B (96.97mm)
- C (96.98mm)
