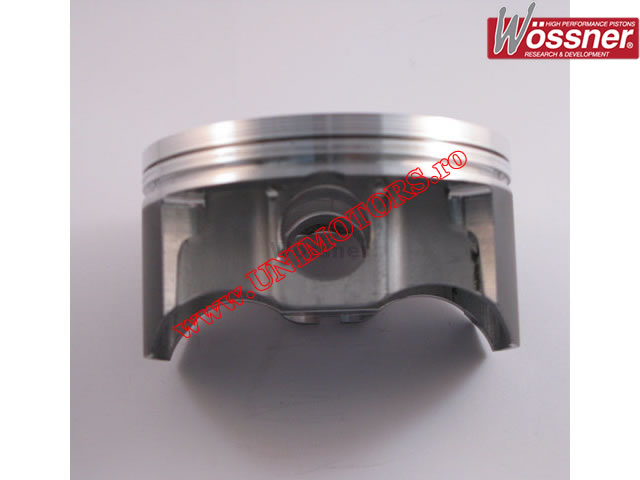

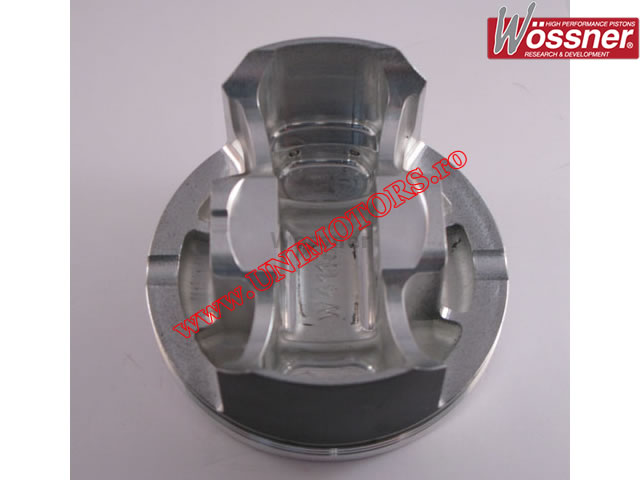

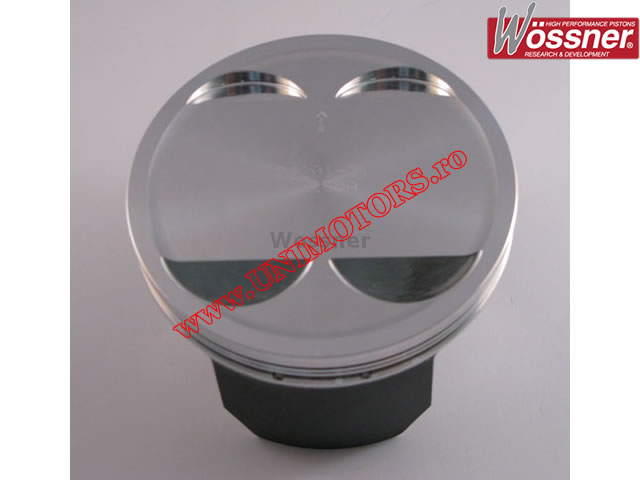

Forged piston kit Wossner for Husqvarna TC 570 / TE 570 manufactured between 2001-2002.
The kit includes piston, rings, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 98.00mm
- thermal clearance: 0.06mm
- compression ratio: 10.00:1 (OEM)
- number of rings: 2 (one compression / one oil)
- pin-to-cap distance (measured from the center of the pin): 25.0mm
- piston pin dimensions: 22x14x51mm.
Available piston sizes:
- A (97.94 mm)
- B (97.95 mm)
- C (97.96 mm)
- +2.00mm.
