Piston Kit - Husqvarna TE 510 / SMR 510 ('08-'10) - 510 4T - ProX

Please select the piston size from the box above.

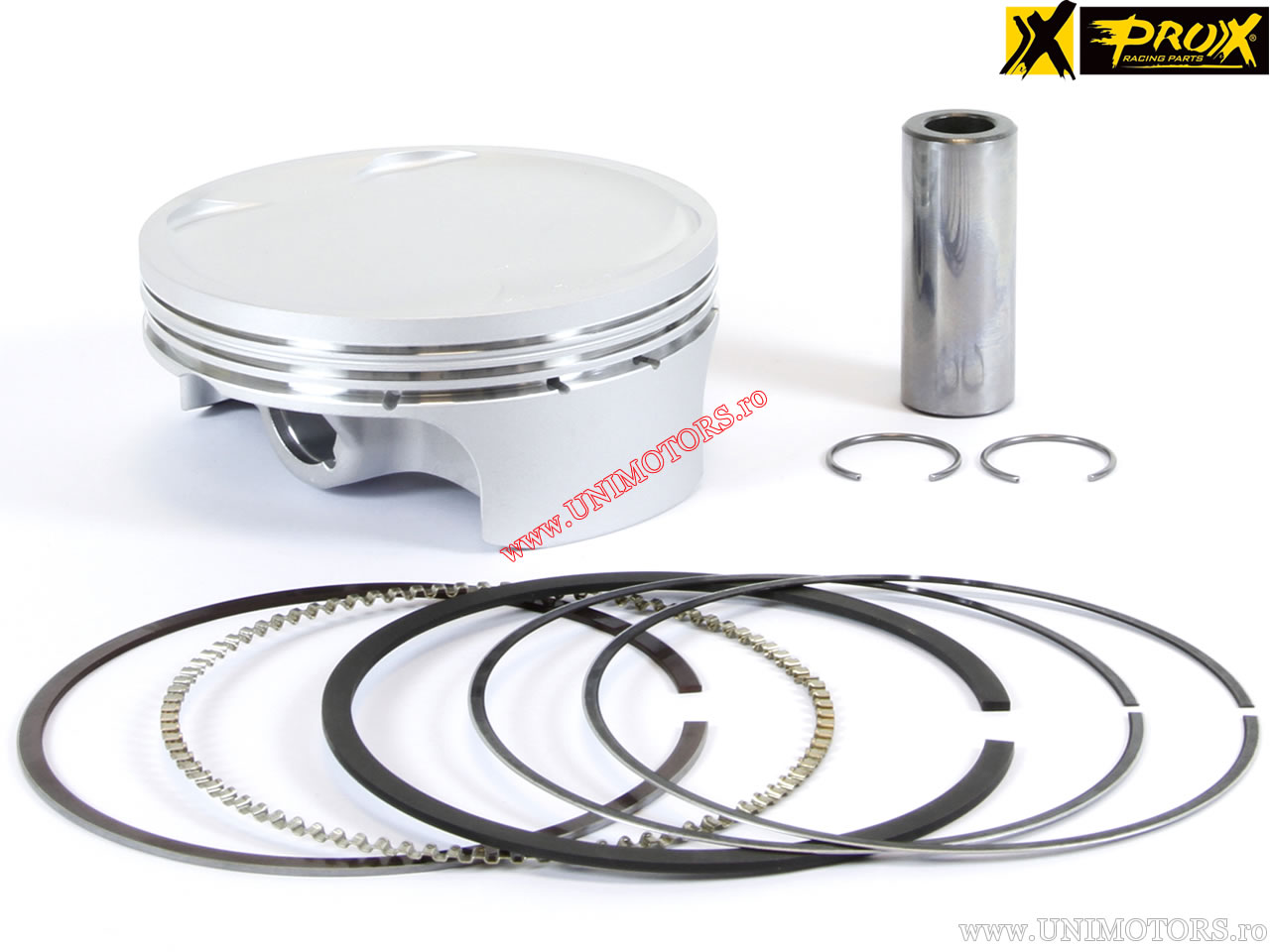

ProX piston kit for Husqvarna TE 510 / SM R 510 (2008-2010) - 510cc 4T. The complete application list can be found below.

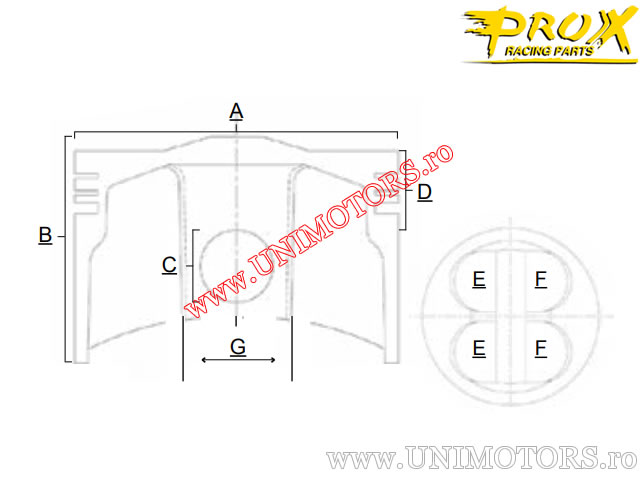

Technical specifications:
- standard cylinder diameter (factory diameter): 97.00 mm
- engine type: 4-stroke
- total piston length (B): 42.30 mm
- piston pin diameter (C): 20.00 mm
- compression height (D): 14.50 mm
- pin groove position measured from center (E):
- pin groove position measured from center (F):
- internal distance of piston pin (G): 20.30 mm
- piston head shape: flat with recessed center
- other information: 4 x valve pockets
- manufacturing technology: forged piston

Available piston sizes (A):
- A (96.95 mm)
- B (96.96 mm)
- C (96.97 mm)
