Piston Kit - Husqvarna TE 570 / TC 570 ('01-'02) - 570 4T - ProX

Please select the piston size from the box above.

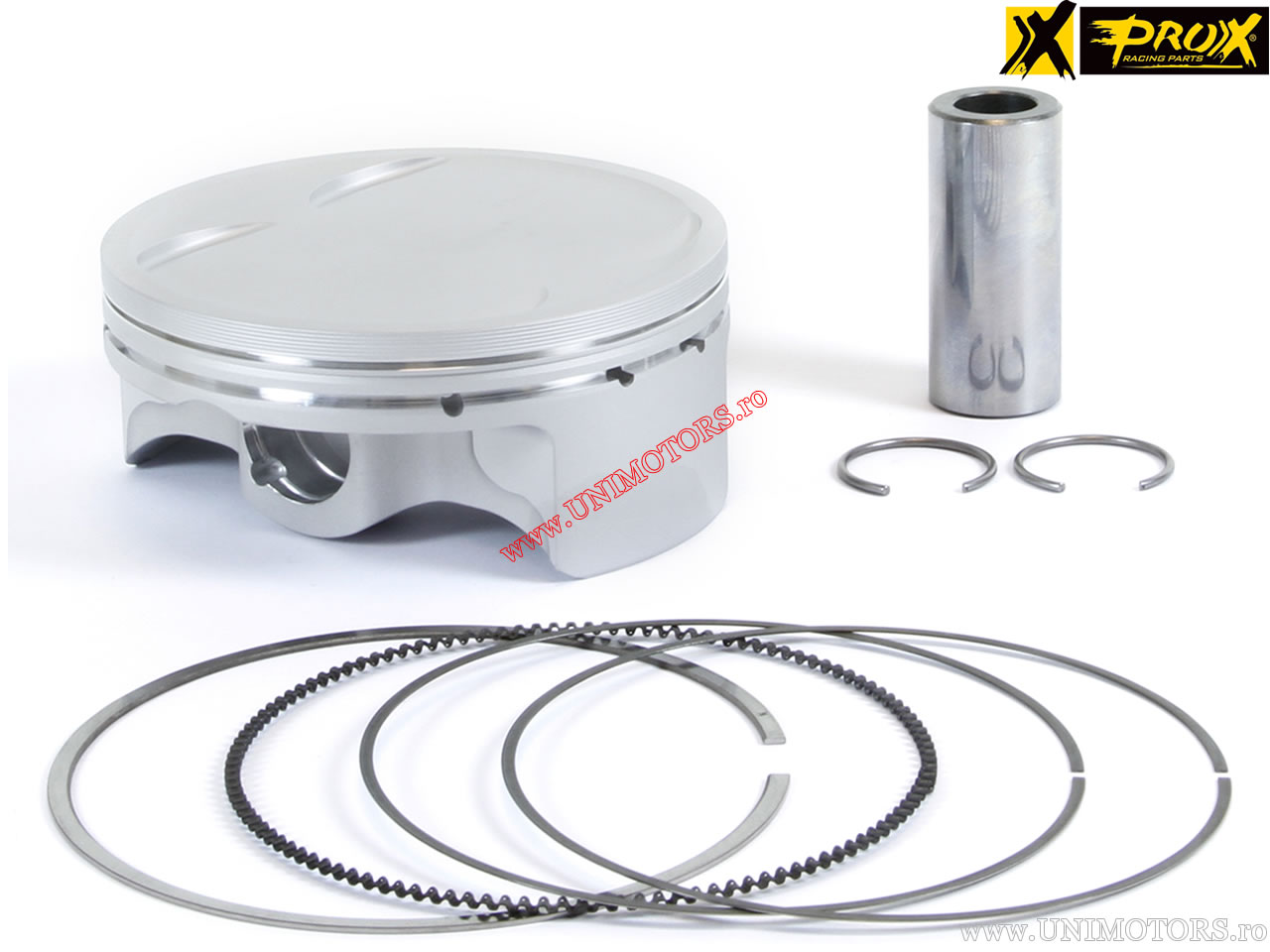

ProX piston kit for Husqvarna TE 570 / TC 570 (2001-2002) - 570cc 4T. The complete application list can be found below.

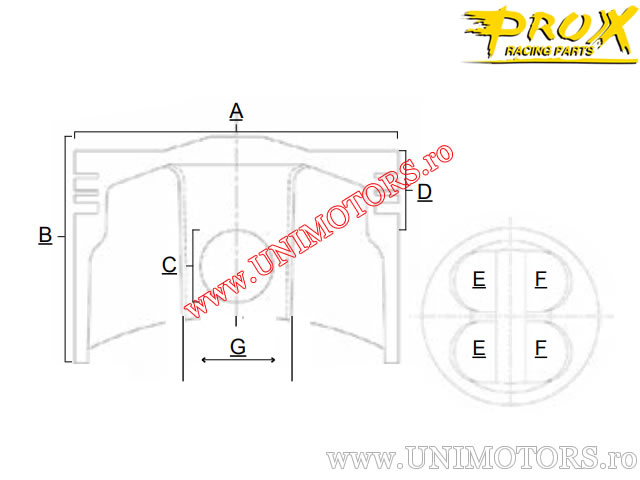

Technical specifications:
- standard cylinder diameter (factory diameter): 98.00 mm
- engine type: 4-stroke
- total piston length (B): 42.00 mm
- piston pin diameter (C): 22.00 mm
- compression height (D): 13.80 mm
- pin groove position measured from center (E):
- pin groove position measured from center (F):
- internal distance of piston pin (G): 23.50 mm
- piston head shape: flat with recessed interior
- other information: 4 x valve pockets
- manufacturing technology: forged piston

Available piston sizes (A):
- A (97.94 mm)
- B (97.95 mm)
- C (97.96 mm)
