Piston Kit - Husqvarna TE510 / TC510 / WRE510 ('87-'90) (91.44-91.94mm) - Wossner

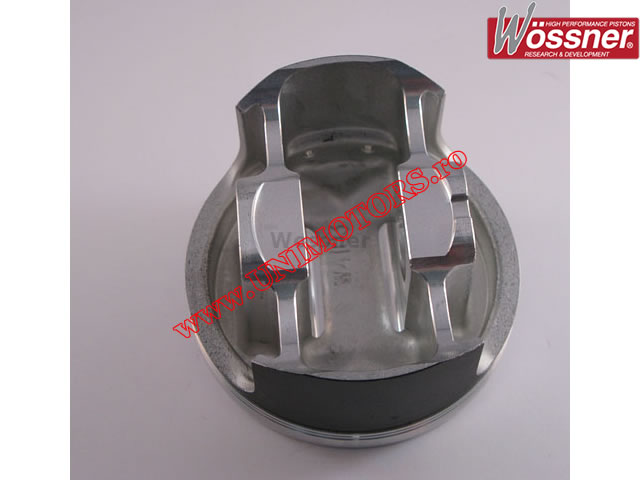

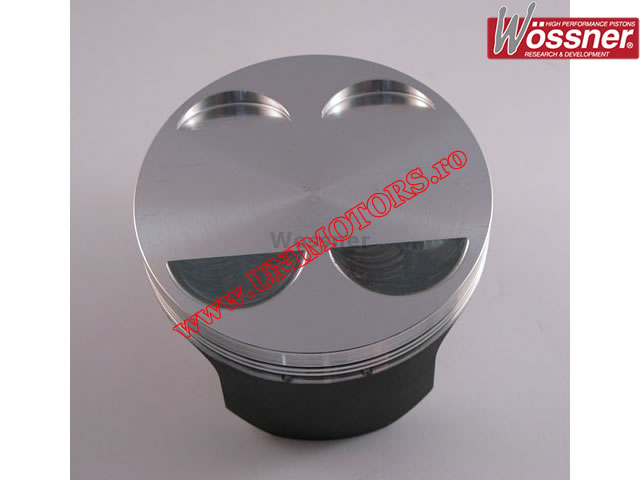

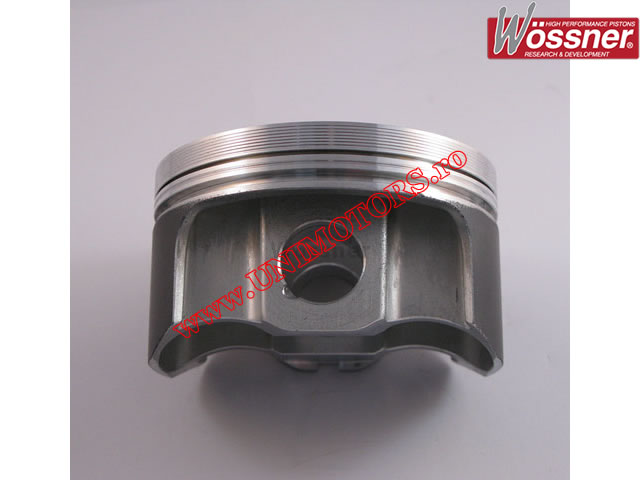

Forged piston kit Wossner for Husqvarna TE 510 / TC 510 / WRE 510 manufactured between 1987-1990.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 91.50mm
- thermal clearance: 0.06mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 12.00:1 (OEM)
- pin-to-head distance (measured from the center of the pin): 30.00mm
- piston pin dimensions: 20x13x51mm.

Available piston sizes:
- A (91.44 mm)
- B (91.45 mm)
- C (91.46 mm)
- +0.50mm.
