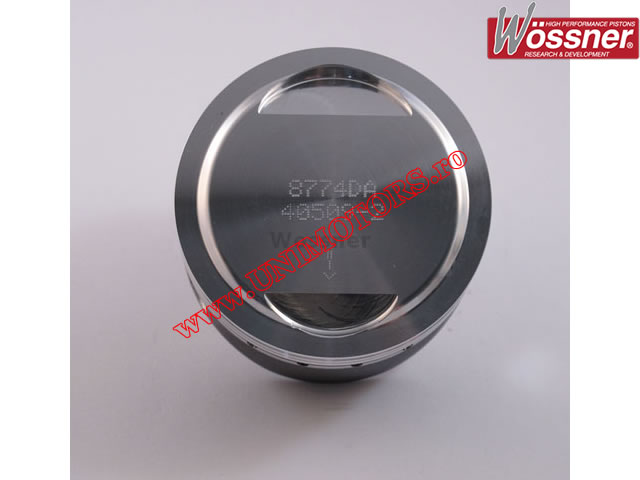

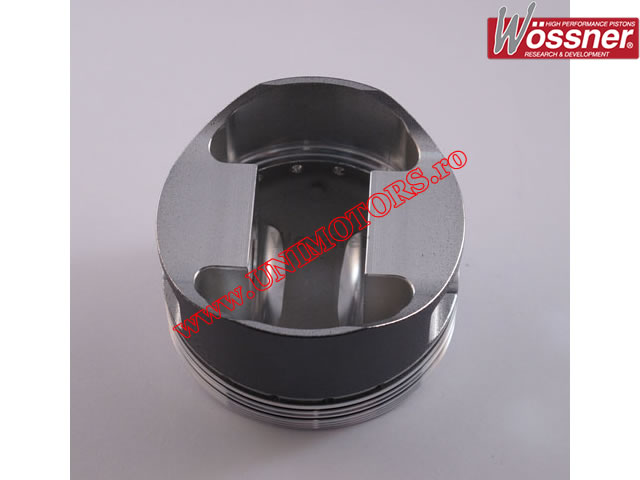

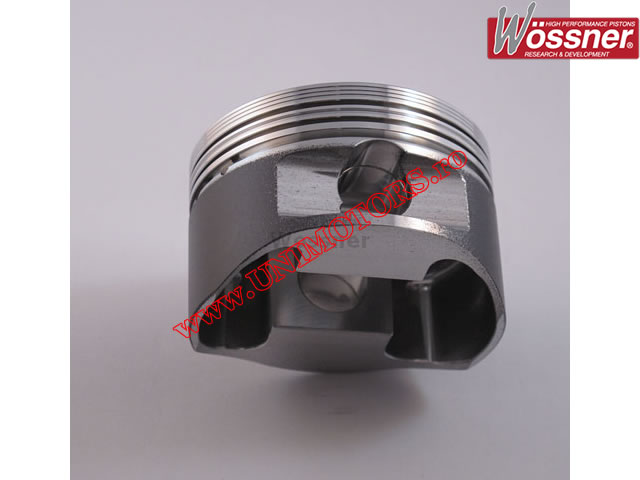

Forged piston kit Wossner - High Compression for Honda CRF 230 F (2003-2009 / 2012-2016).
The kit includes piston, rings, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 65.50mm
- thermal clearance: 0.04mm
- number of rings: 3 (two compression / one oil)
- compression ratio: 11.0:1 (high compression - 11.0:1 compared to 9.00:1 OEM)
- pin-to-cap distance (measured from the center of the pin): 21.20mm
- piston pin dimensions: 15x9x45mm.
Available piston sizes:
- A (65.46mm)
- +0.50mm
- +1.00mm
- +1.50mm
- +2.00mm
