Piston Kit (Increased Compression) - Suzuki RM-Z250 ('10-'18) (76.96-76.98mm) - Wossner

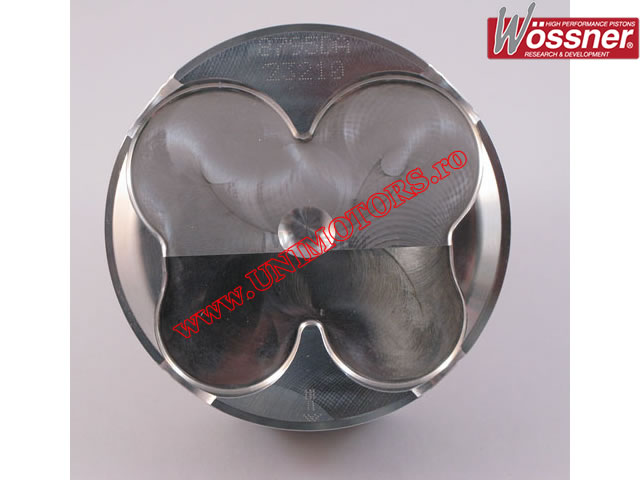

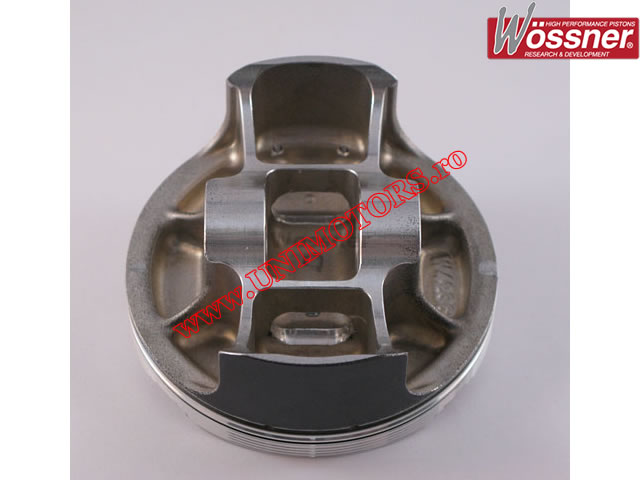

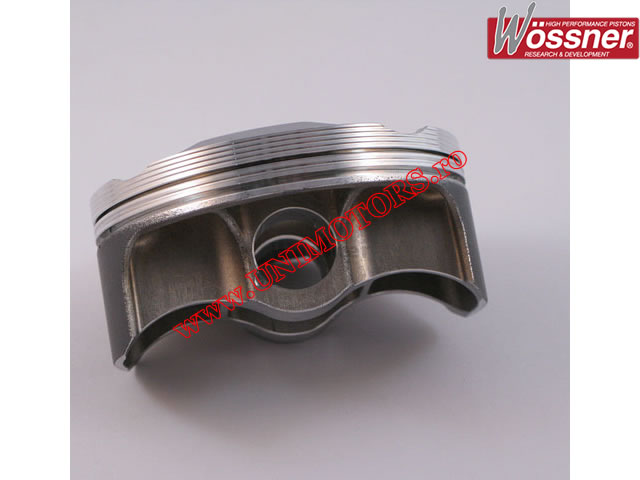

Forged piston kit Wossner High Compression - increased compression for Suzuki RM-Z 250 manufactured between 2010-2018.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 77.00mm
- thermal clearance: 0.04mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 14.00:1 (increased compression 14.00:1 compared to 13.60:1 OEM)
- pin-to-cap distance (measured from the center of the pin): 19.60mm
- piston pin dimensions: 16x9x38mm.

Available piston sizes:
- A (76.96mm)
- B (76.97mm)
- C (76.98mm)
