Piston Kit (Increased Compression) - Yamaha YZ 450F ('14-'17) / WR 450F ('16-'18) (96.96-96.98mm) - Wossner

Forged piston kit Wossner High Compression for Yamaha YZ 450 F 4T (2014-2017) / WR 450 F (2016-2018).

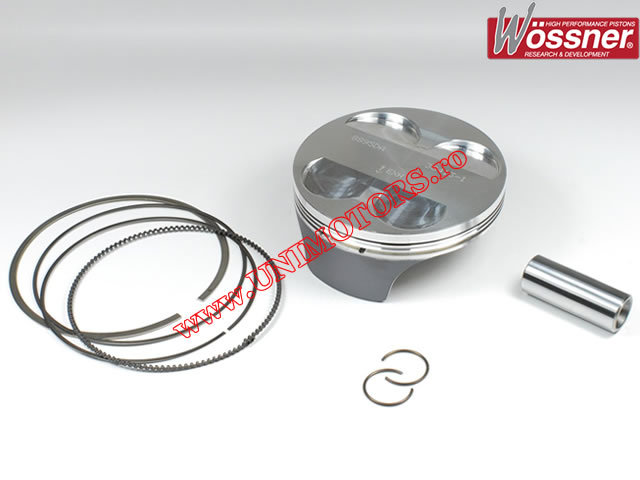

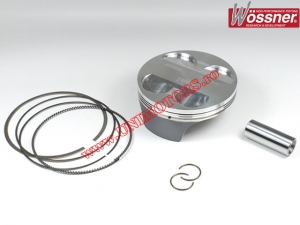

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 97.00mm
- thermal clearance: 0.04mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 13.50:1 (increased compression 13.50:1 compared to 12.50:1 OEM)
- pin-to-cap distance (measured from the center of the pin): 24.00mm
- piston pin dimensions: 18x8x46mm.

Available piston sizes:
- A (96.96mm)
- B (96.97mm)
- C (96.98mm)
