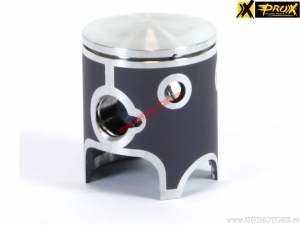

Piston Kit - KTM Adventure 50 ('02-'08) / SX 50 ('01-'08) - 50 2T - ProX

Please select the piston size from the box above.

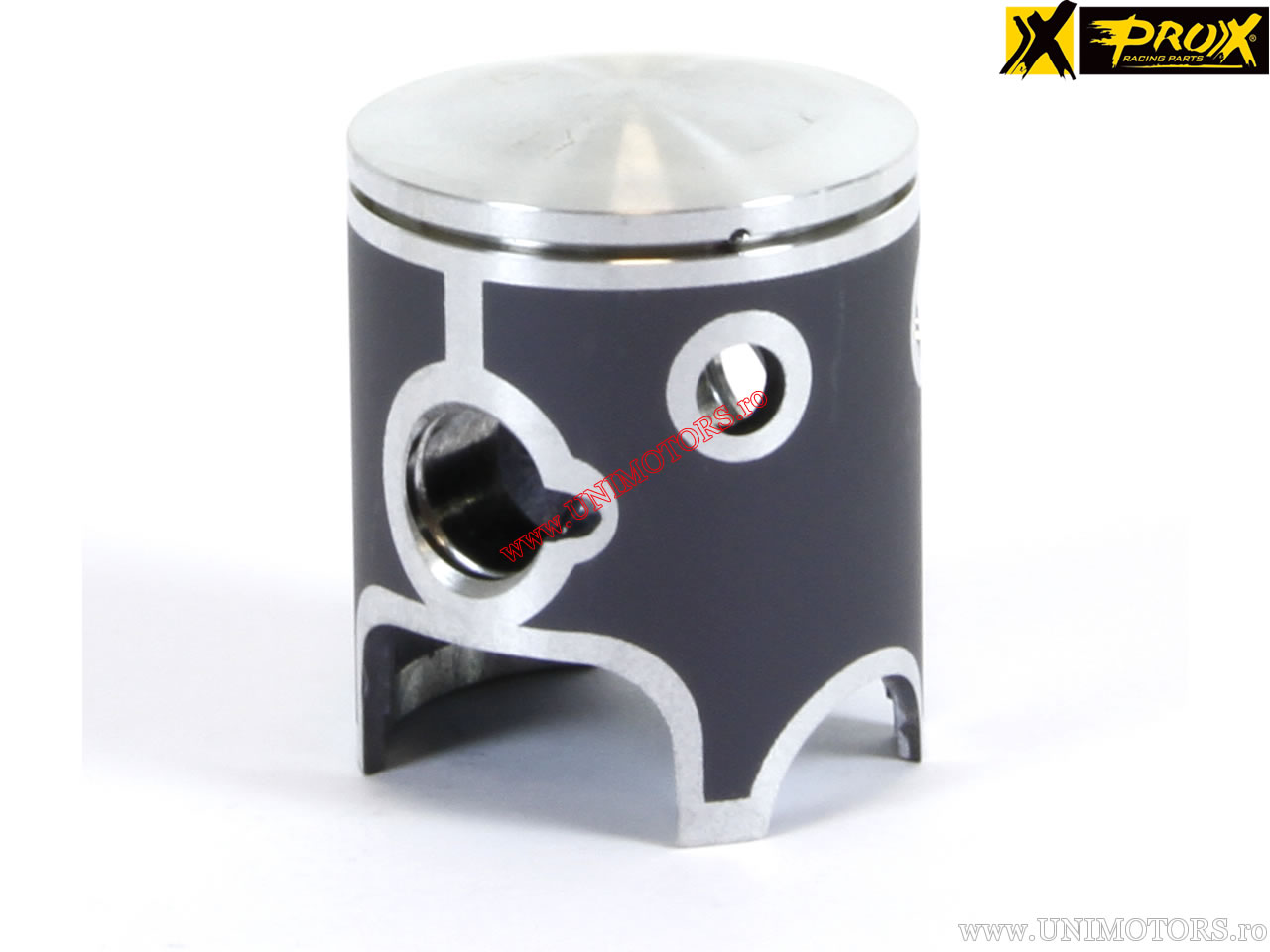

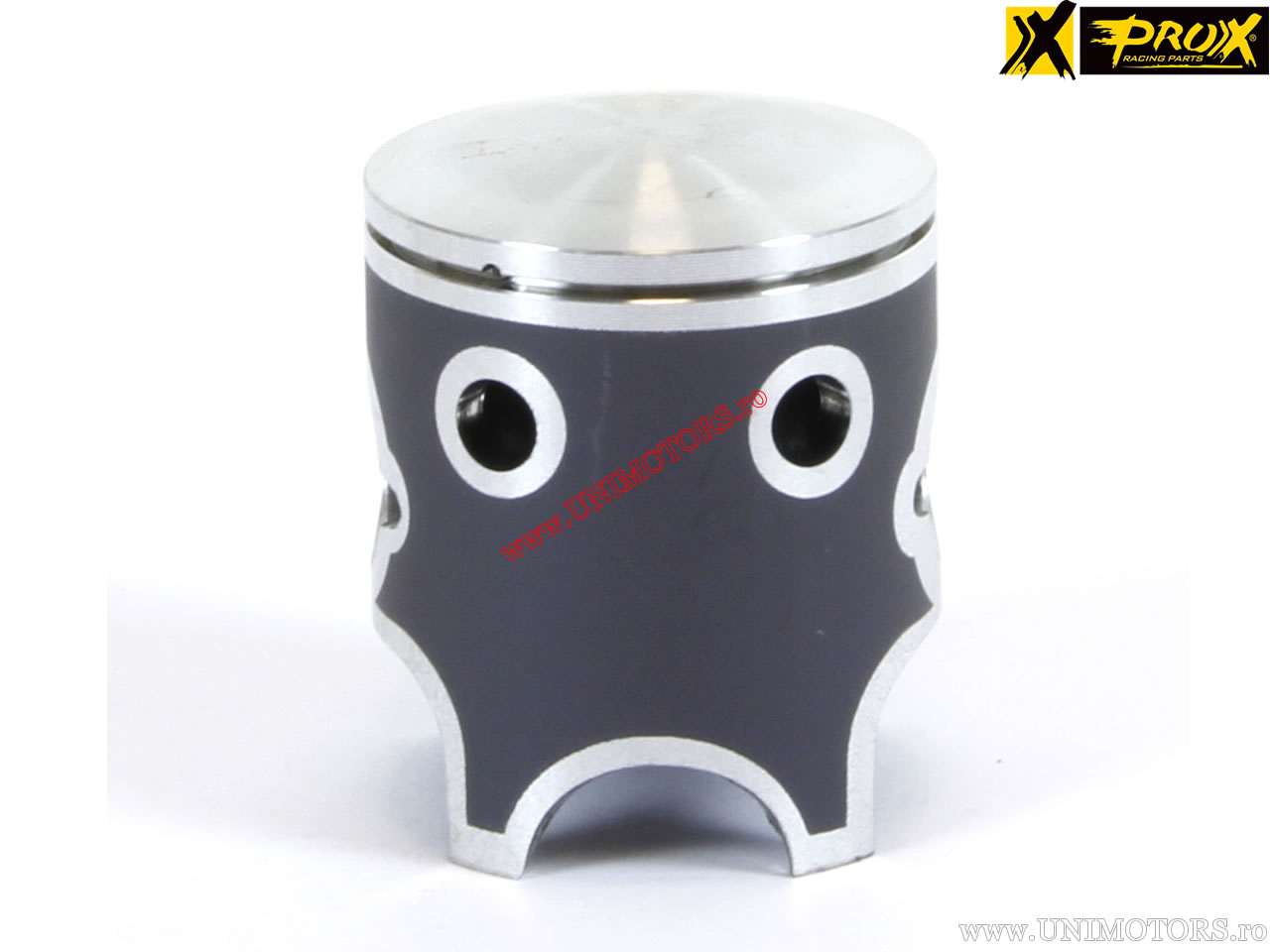

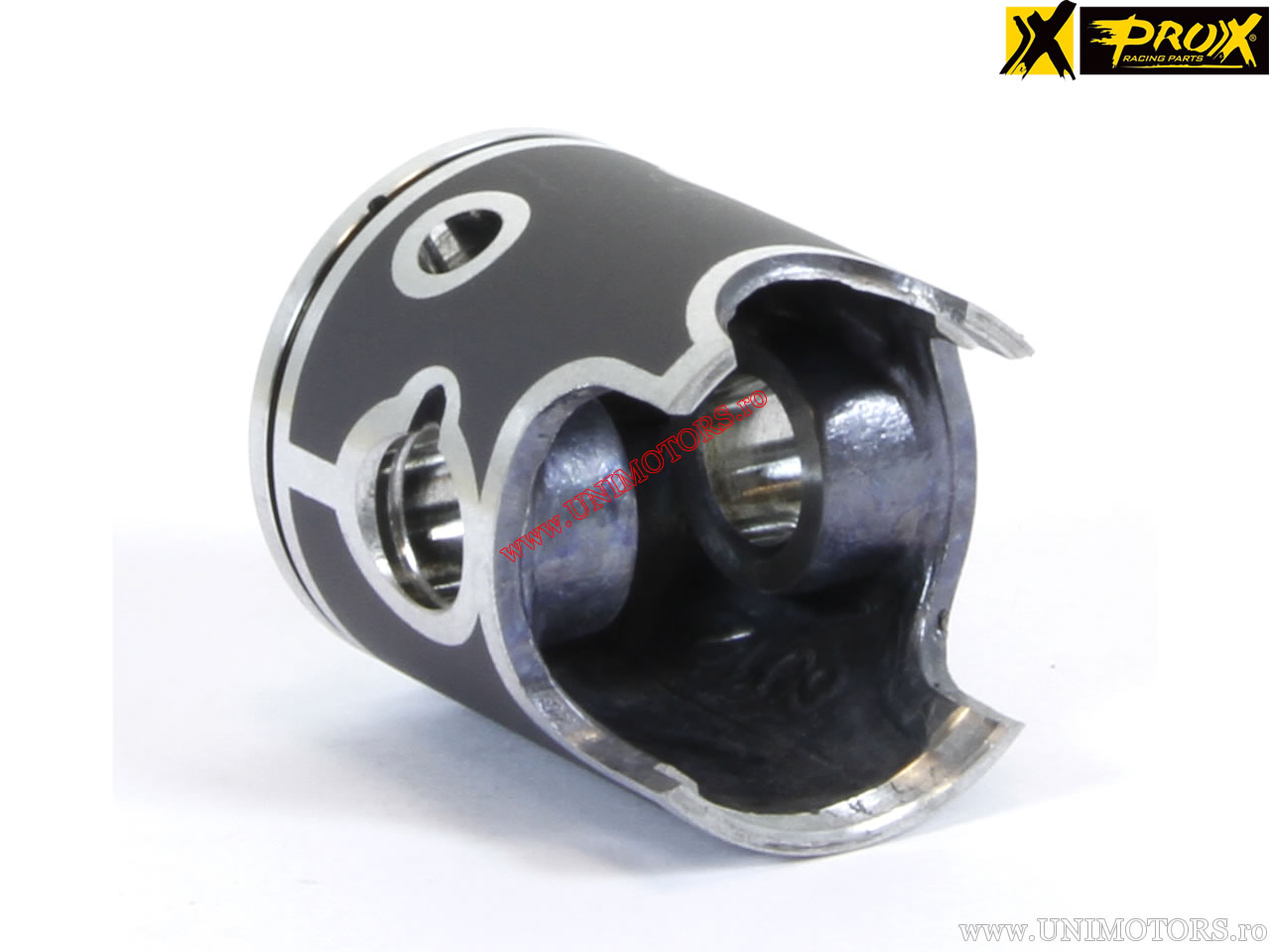

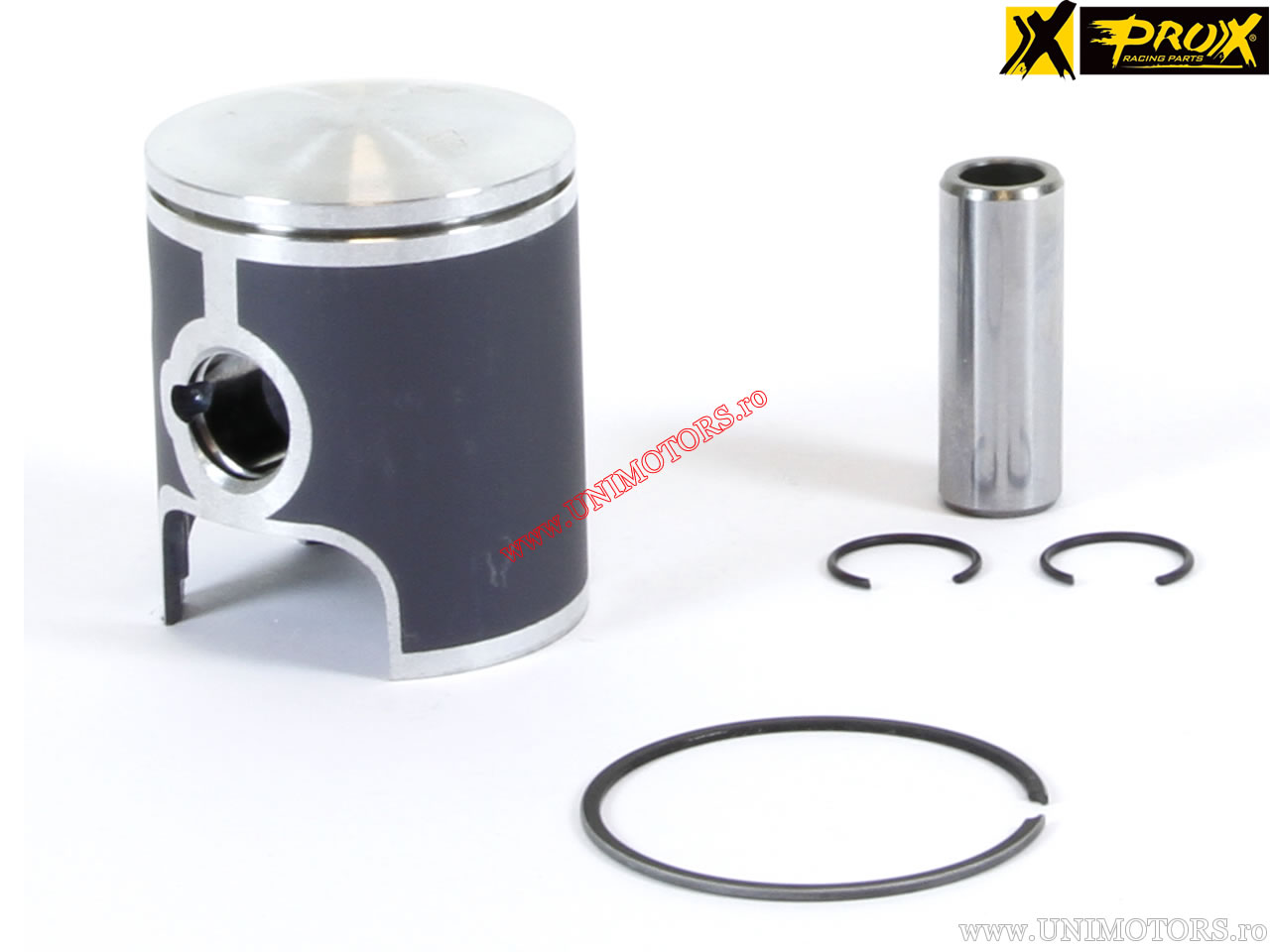

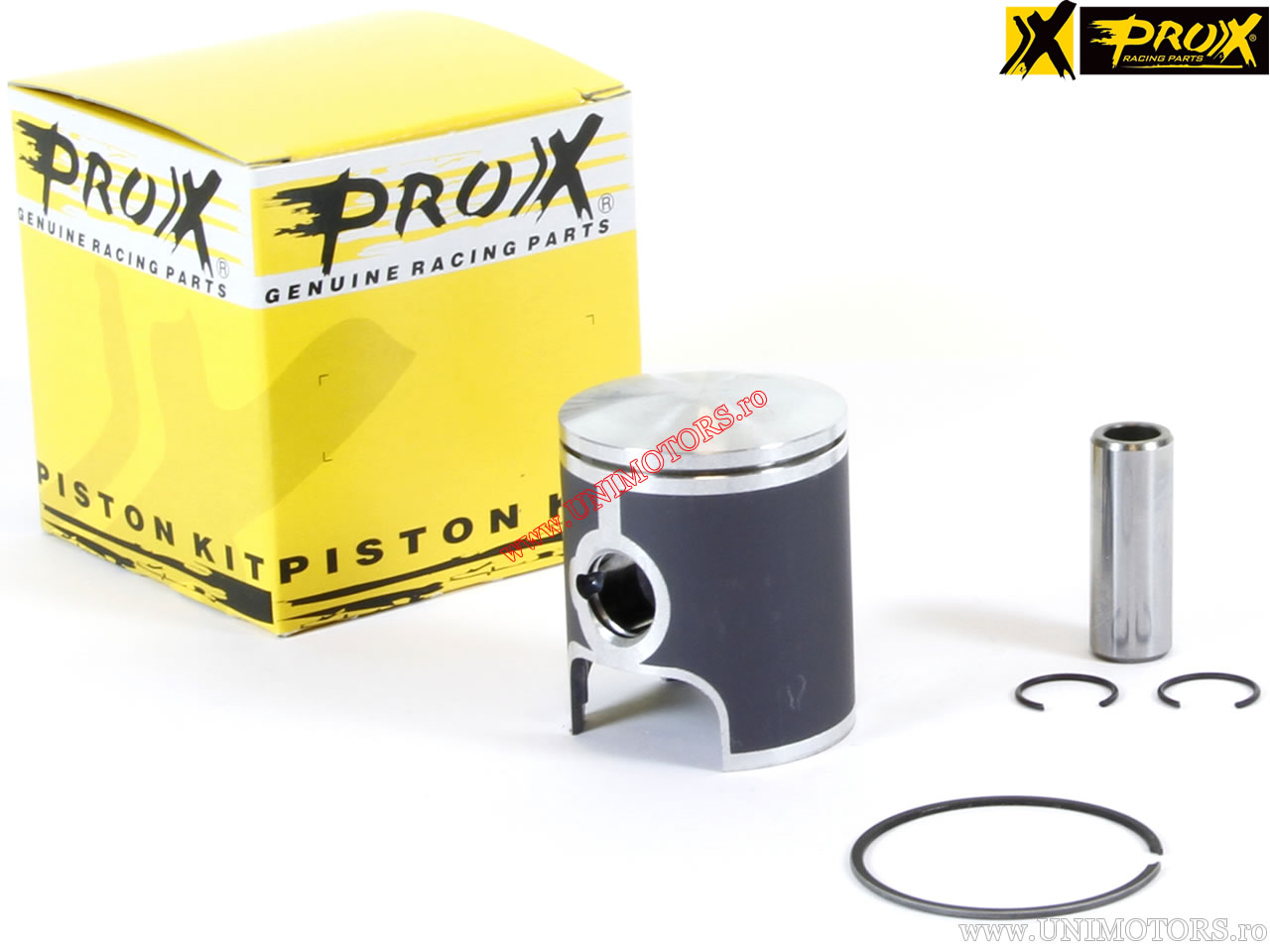

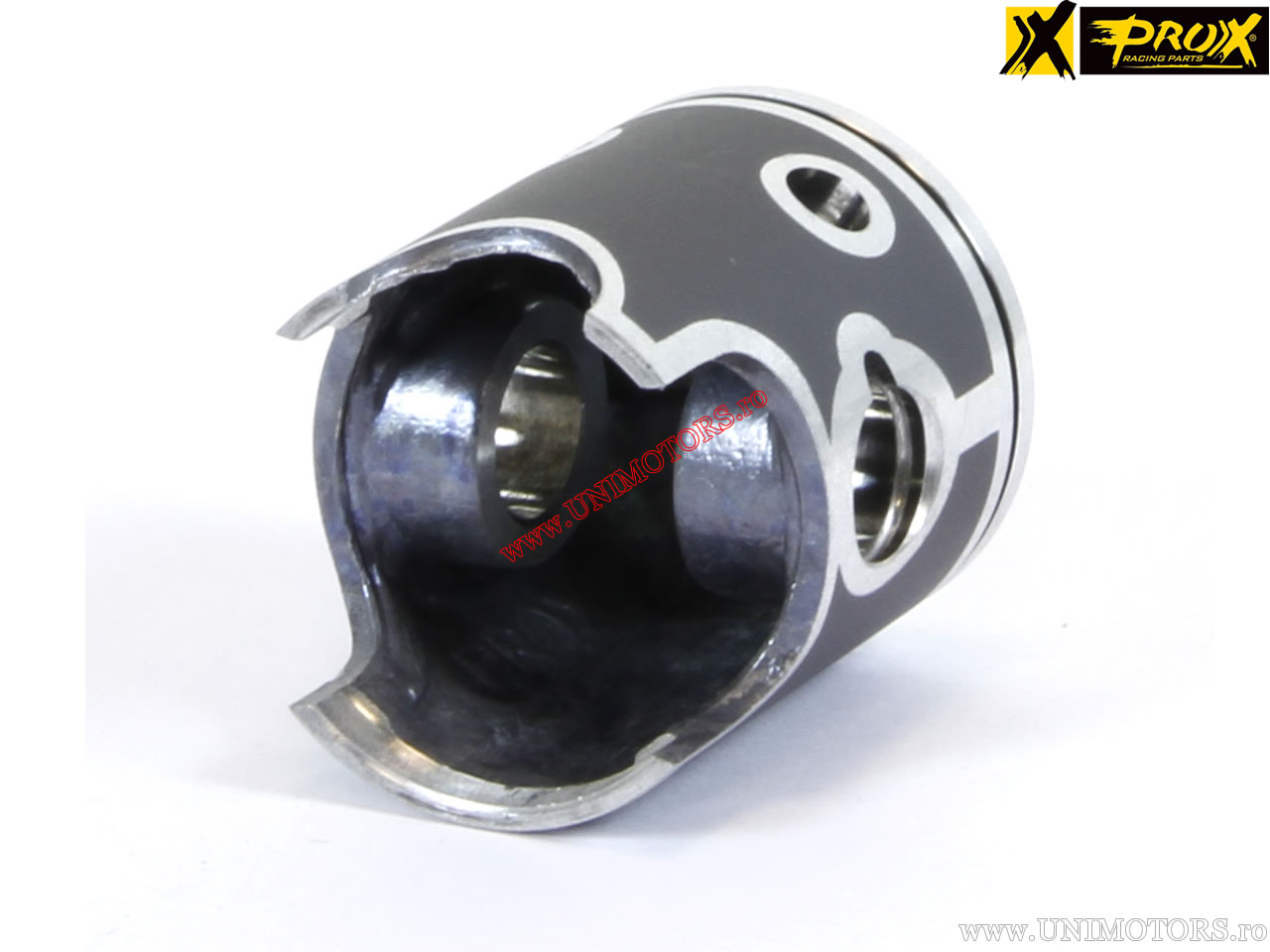

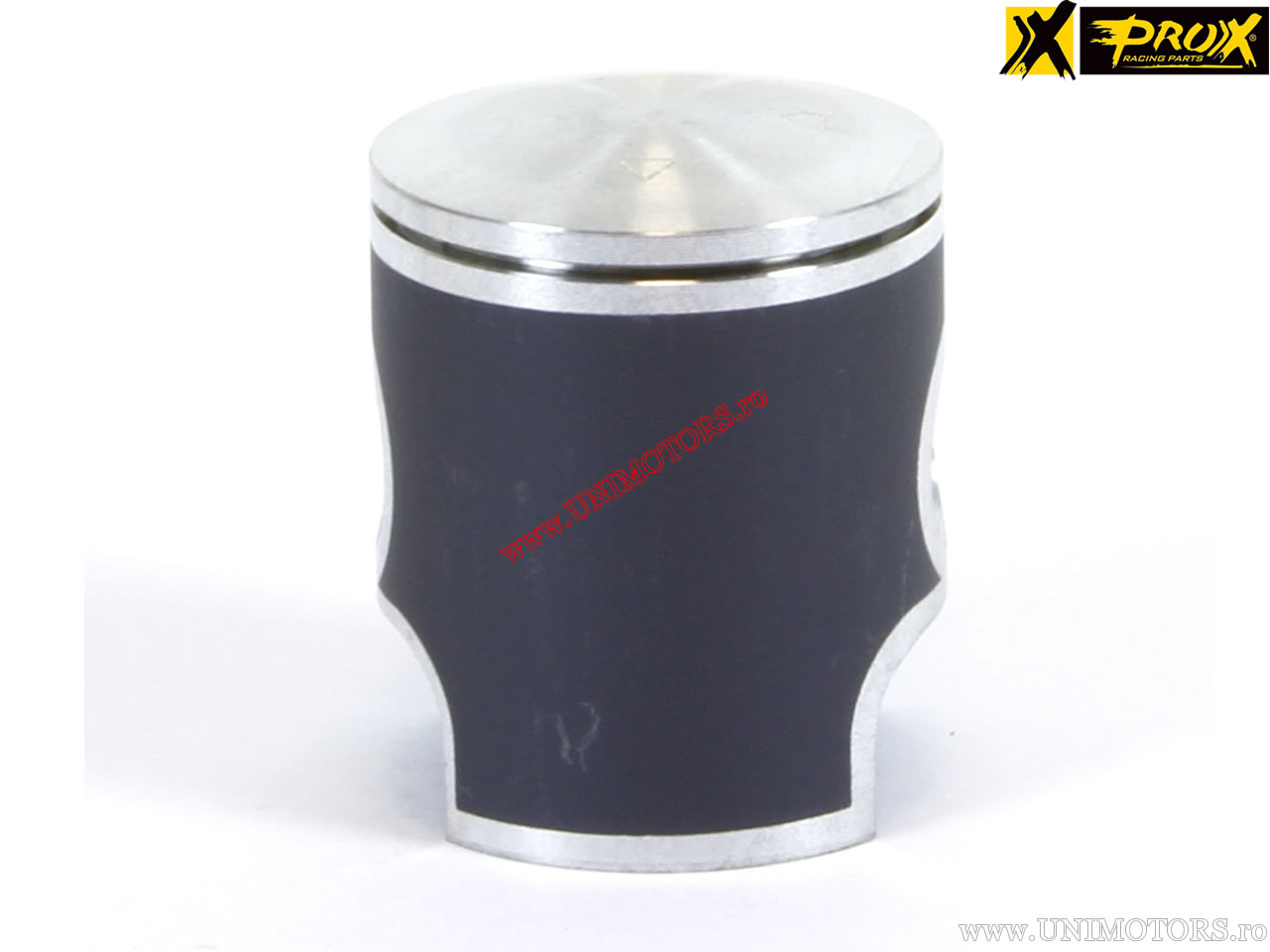

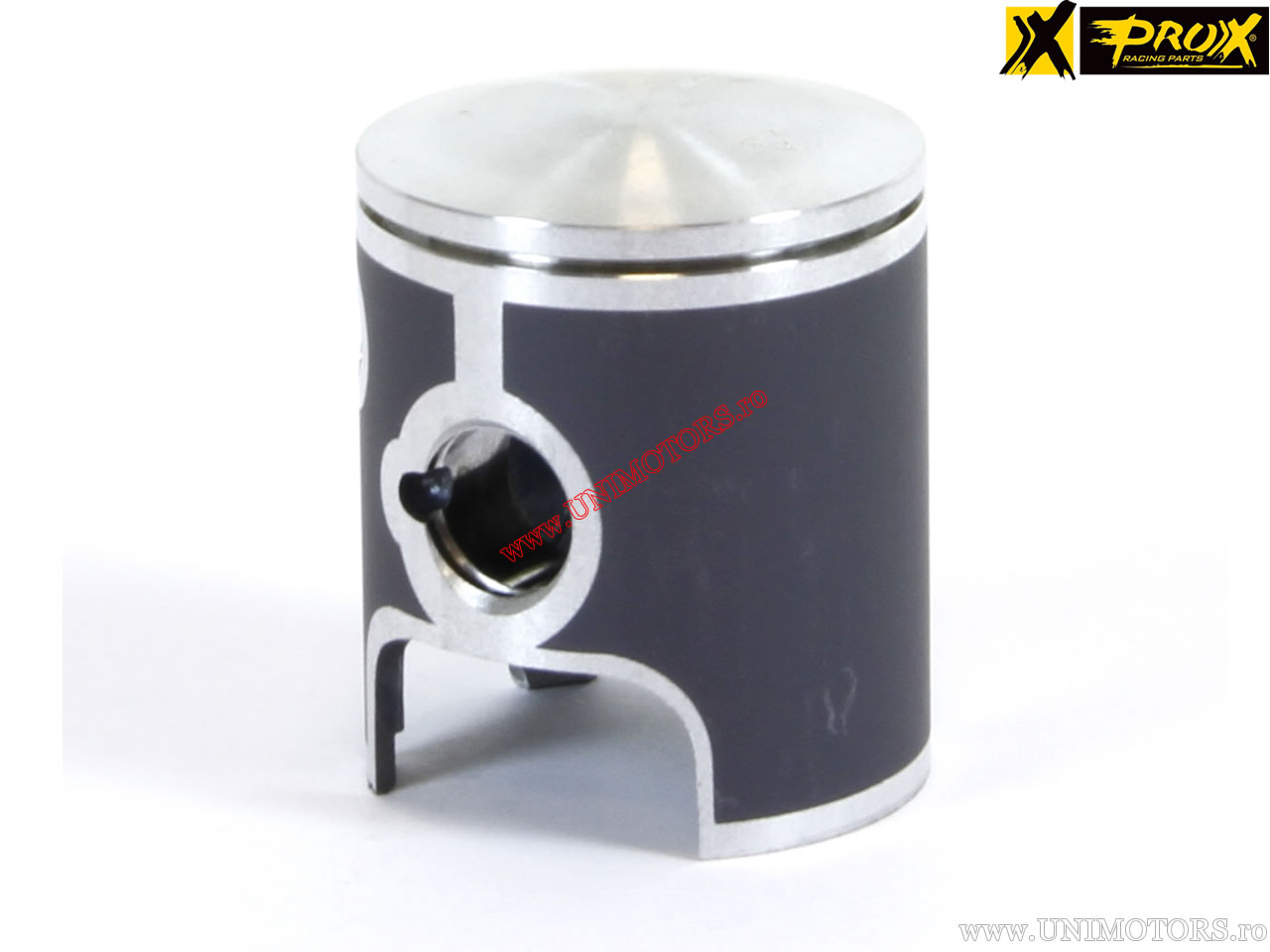

ProX piston kit for KTM Adventure 50 (2002-2008) / SX 50 (2001-2008) - 50cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 39.50 mm
- engine type: 2-stroke
- total piston length (B): 48.00 mm
- piston pin diameter (C): 12.00 mm
- compression height (D): 15.50 mm
- pin ring position measured from center (E): 10.50 mm
- pin ring position measured from center (F):
- internal distance of piston pin (G): 15.00 mm
- piston crown shape: domed
- other information: 2 x intake ports
- manufacturing technology: cast piston coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- A (39.46 mm)
- B (39.47 mm)
- C (39.48 mm)
