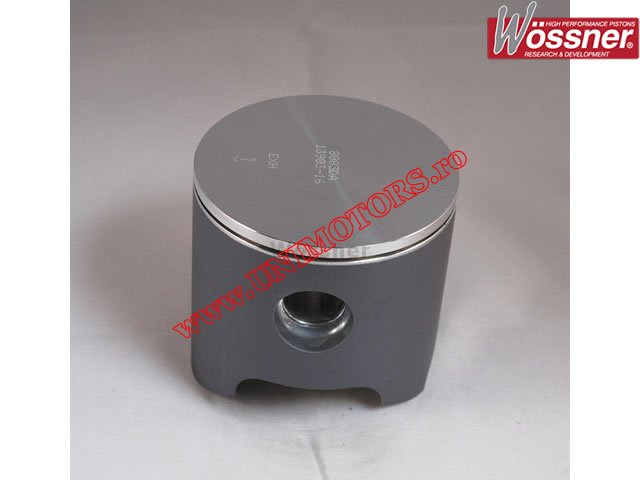

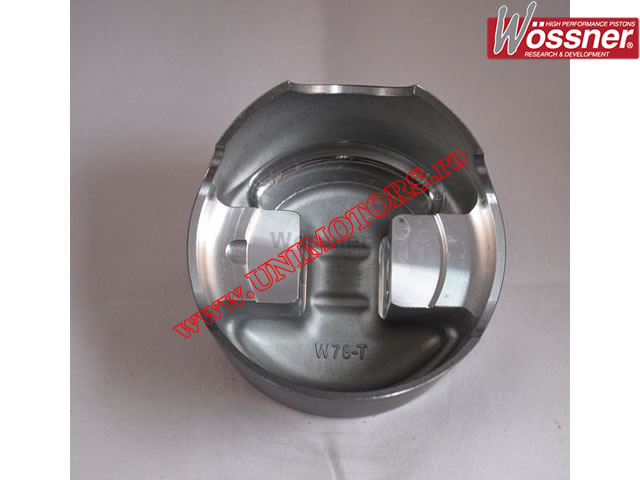

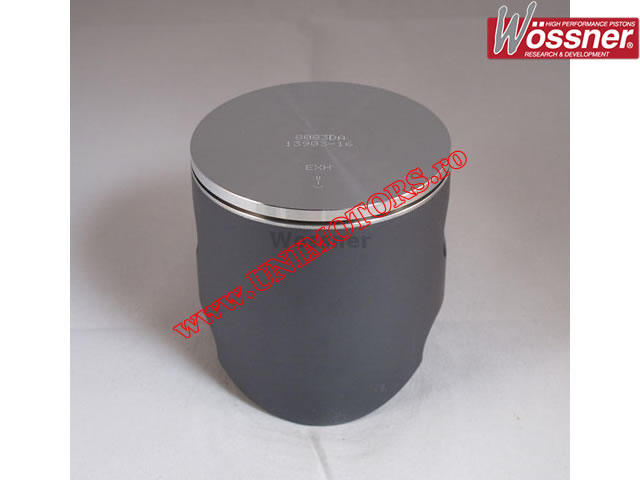

Piston Kit - KTM EGS360 / EXC360 / SX360 ('96-'97) (77.94-78.94mm) - Wossner

Forged piston kit Wossner for KTM EGS 360 / EXC 360 / SX 360 manufactured between 1996-1997.

The kit includes piston, ring, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 78.00mm
- thermal clearance: 0.06mm
- pin-to-cap distance (measured from the center of the pin): 27.00mm
- piston pin dimensions: 18x12x56mm.

Available piston sizes:
- A (77.94mm)
- B (77.95mm)
- C (77.96mm)
- +0.50mm
- +1.00mm
