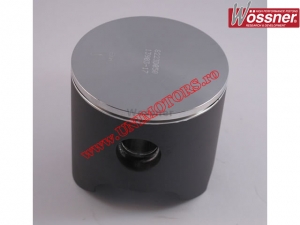

Piston Kit - KTM EGS380 / EXC380 / SX380 ('98-'02) (77.94-78.44mm) - Wossner

Forged piston kit Wossner for KTM EGS 380 / EXC 380 / SX 380 manufactured between 1998-2002.

The kit includes piston, ring, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 78.00mm
- thermal clearance: 0.06mm
- pin-to-cap distance (measured from the center of the pin): 27.00mm
- piston pin dimensions: 18x12x56mm.

Available piston sizes:
- A (77.94mm)
- B (77.95mm)
- C (77.96mm)
- +0.50mm.
