Piston Kit - KTM EXC250 ('06-'16) / SX250 ('03-'04 (66.34-66.36mm / 1 segment) - Wossner

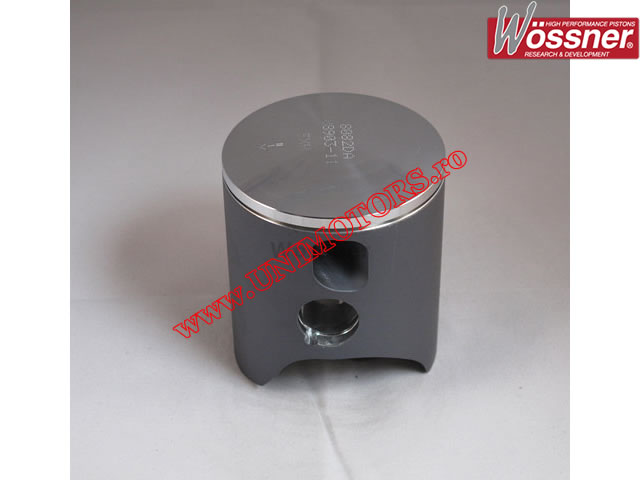

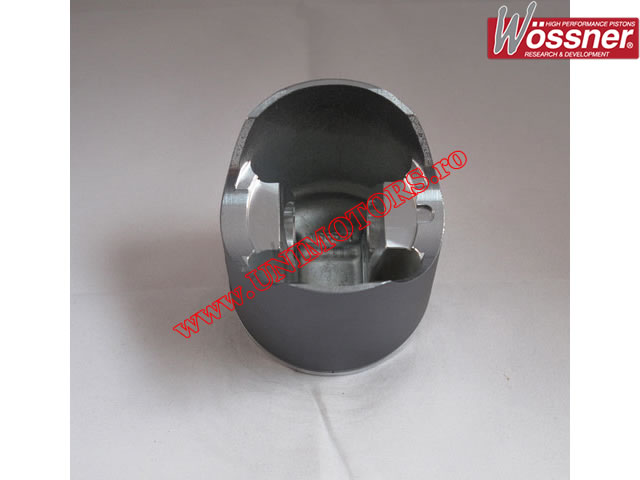

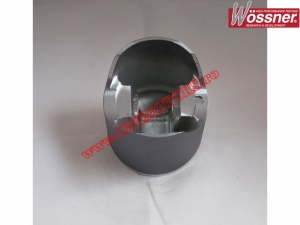

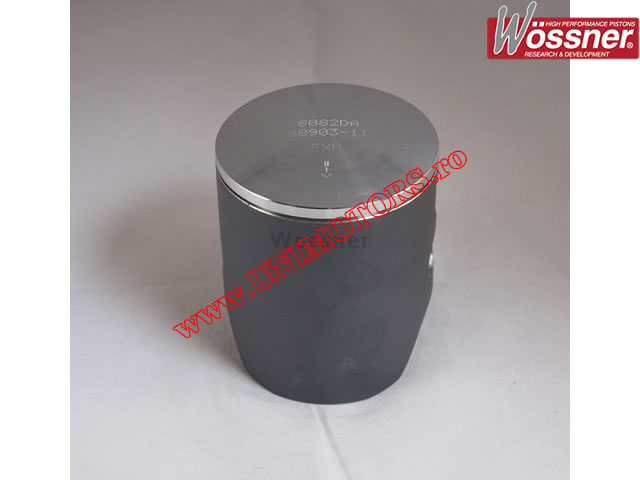

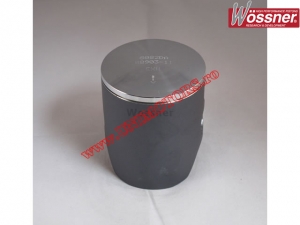

Forged piston kit Wossner (with a single ring) for KTM SX 250 (2003-2004) / EXC 250 (2006-2016).

The kit includes piston, ring, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 66.40mm
- thermal clearance: 0.06mm
- pin-to-head distance (measured from the center of the pin): 38.00mm
- piston pin dimensions: 18x13x56.20mm.

Available piston sizes:
- A (66.34 mm)
- B (66.35 mm)
- C (66.36 mm)
