Piston Kit - KTM EXC450 ('12-'16) / Husaberg FE450 ('14-'16) (94.95-94.97mm) - Wossner

Forged piston kit Wossner for KTM EXC 450 (2012-2016) / Husaberg FE 450 (2014-2016).

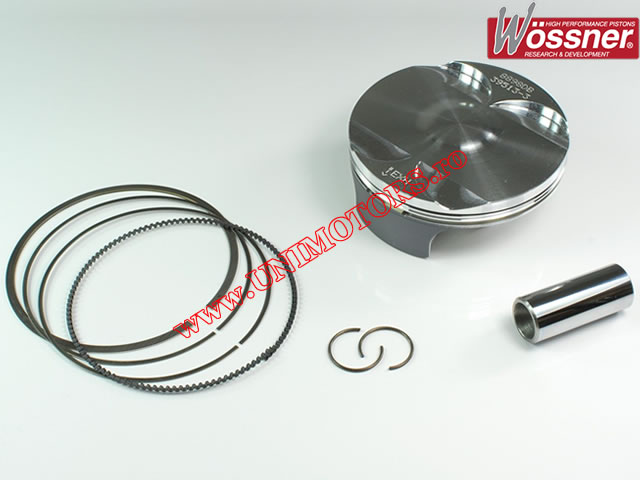

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 95.00mm
- thermal clearance: 0.05mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 11.80:1 (OEM)
- pin-to-head distance (measured from the center of the pin): 22.80mm
- piston pin dimensions: 19x9.2x46mm.

Available piston sizes:
- A (94.95mm)
- B (94.96mm)
- C (94.97mm)
