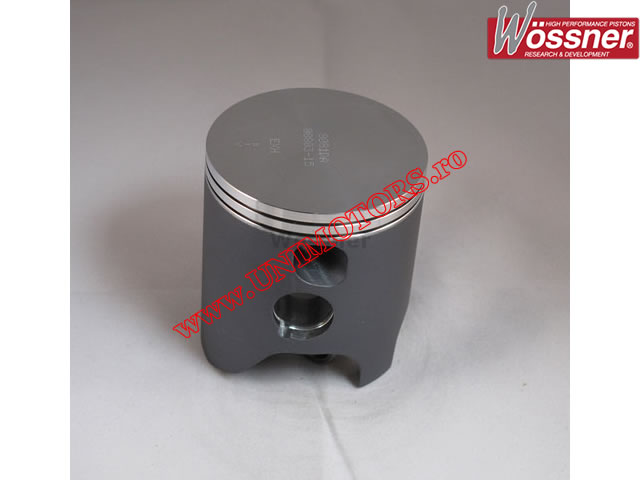

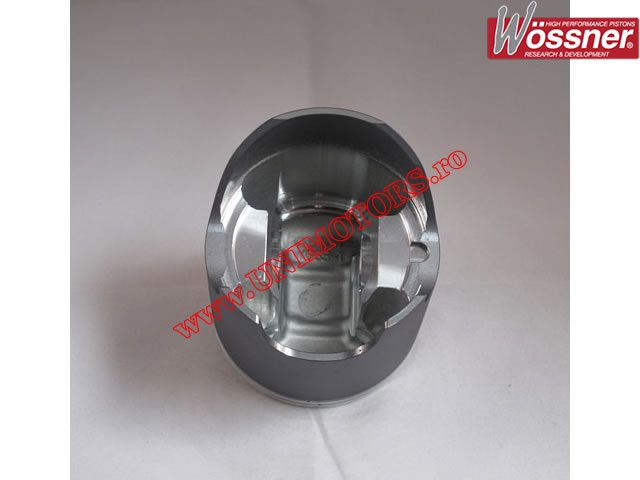

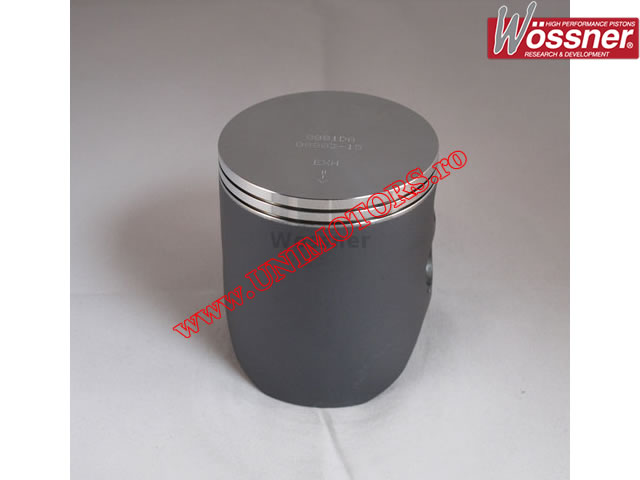

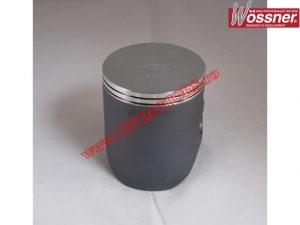

Piston Kit - KTM MXC250 / EXC250 ('00-'05) (66.34-66.36mm) - Wossner

Forged piston kit Wossner for KTM MXC 250 / EXC 250 manufactured between 2000-2005.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 66.40mm
- thermal clearance: 0.06mm
- pin-to-cap distance (measured from the center of the pin): 38.00mm
- piston pin dimensions: 18x13x56.20mm.

Available piston sizes:
- A (66.34 mm)
- B (66.35 mm)
- C (66.36 mm)
