Piston Kit - KTM SX 144 ('08) - 144 2T - ProX

Please select the piston size from the box above.

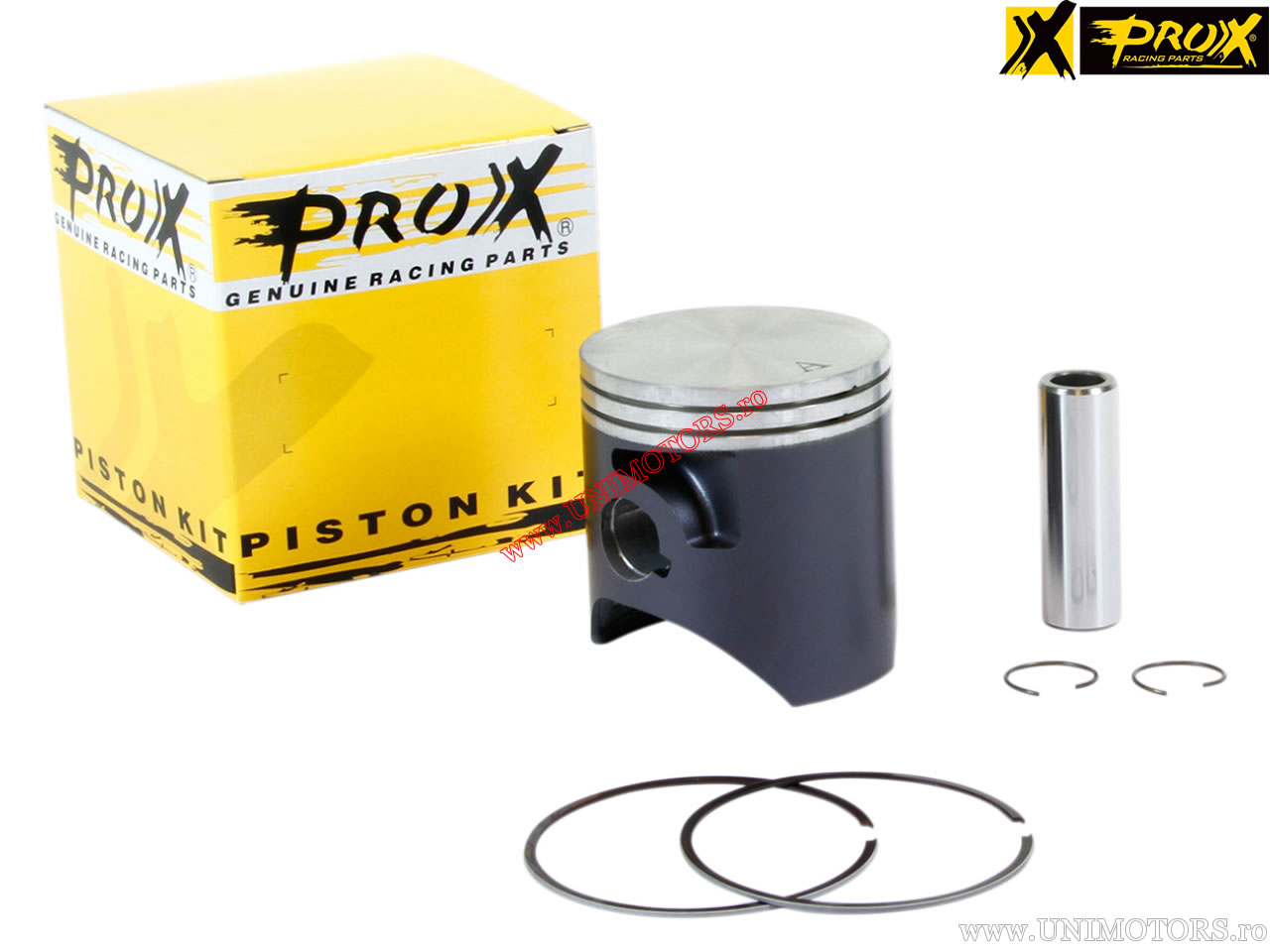

ProX piston kit for KTM SX 144 (2008) - 144cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 56.00 mm
- engine type: 2-stroke
- total piston length (B): 59.50 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 22.00 mm
- pin ring position measured from center (E): 1.35 mm
- pin ring position measured from center (F): 1.35 mm
- internal distance of piston pin (G): 20.75 mm
- piston crown shape: flat
- other information:
- manufacturing technology: cast piston coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- A (55.94 mm)
- B (55.95 mm)
- C (55.96 mm)
- D (55.97 mm)
- E (55.98 mm)
