Piston Kit - KTM SX 150 ('09-'15) - 150 2T - ProX

Please select the piston size from the box above.

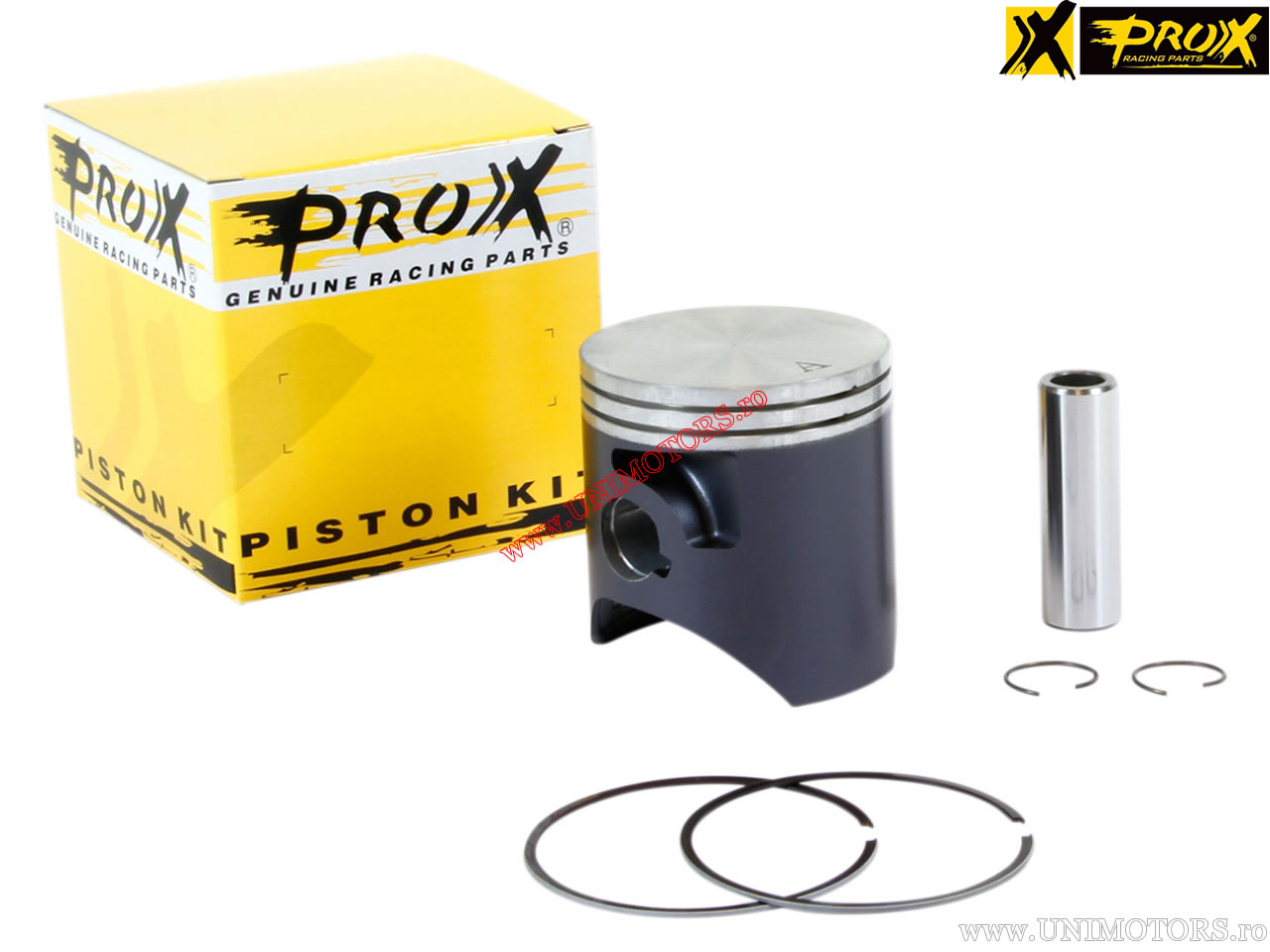

ProX piston kit for KTM SX 150 (2009-2015) - 150cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 56.00 mm
- engine type: 2 stroke
- total piston length (B): 59.50 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 22.00 mm
- pin ring position measured from center (E): 1.35 mm
- pin ring position measured from center (F): 1.35 mm
- internal distance of piston pin (G): 20.75 mm
- piston head shape: flat
- additional information:
- manufacturing technology: cast piston coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- A (55.94 mm)
- B (55.95 mm)
- C (55.96 mm)
- D (55.97 mm)
- E (55.98 mm)
