Piston Kit - KTM SX 150 ('16-'20) - 150 2T - ProX

Please select the piston size from the box above.

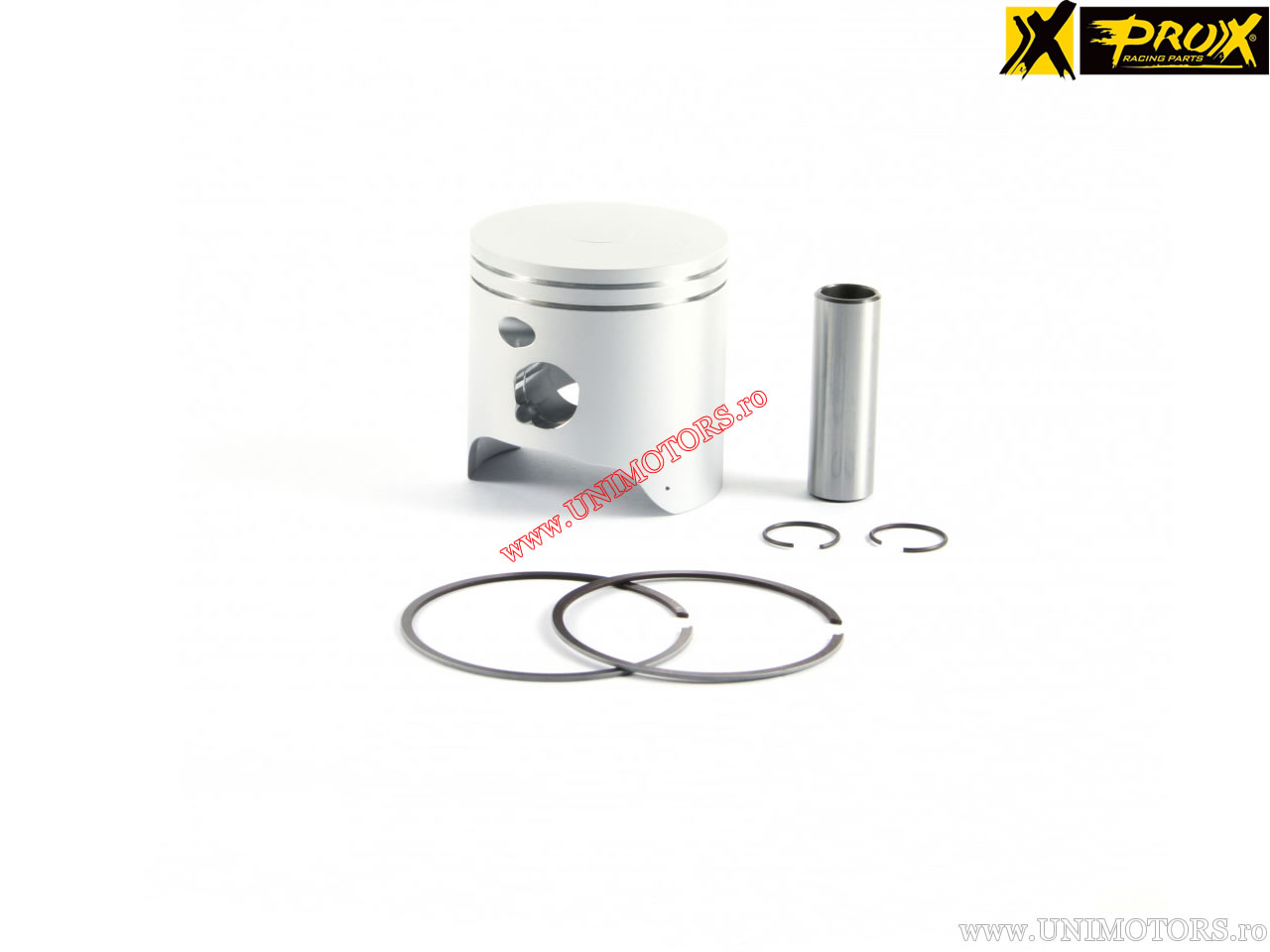

ProX piston kit for KTM SX 150 (2016-2020) - 150cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 58.00 mm
- engine type: 2-stroke
- total piston length (B): 58.00 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 22.00 mm
- pin ring position measured from center (E): 1.50 mm
- pin ring position measured from center (F): 1.50 mm
- internal distance of piston pin (G): 20.75 mm
- piston head shape: domed
- additional information:
- manufacturing technology: forged piston

Available piston sizes (A):
- A (57.94 mm)
- B (57.95 mm)
- C (57.96 mm)
