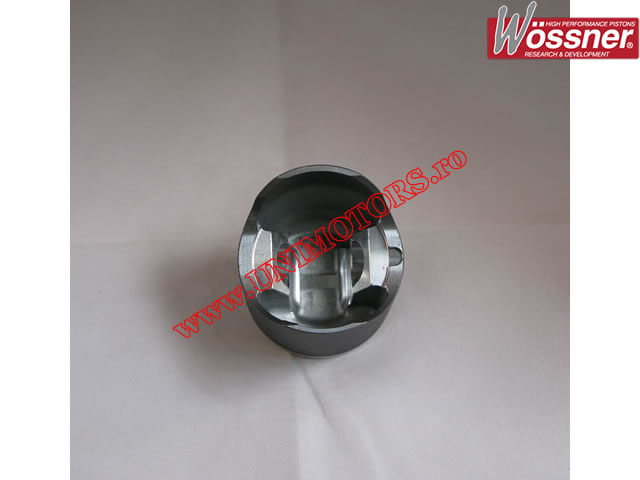

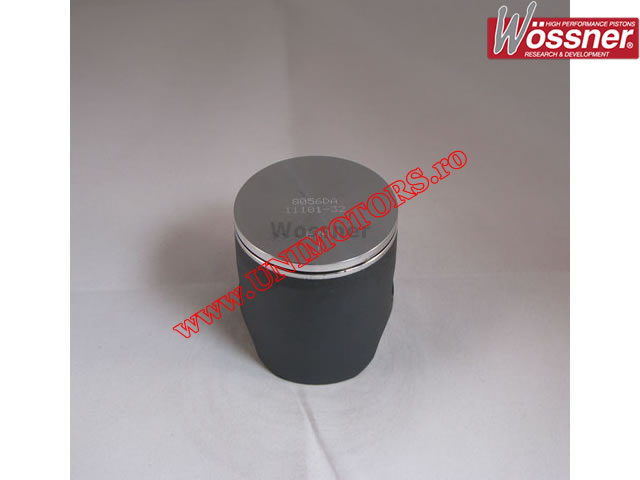

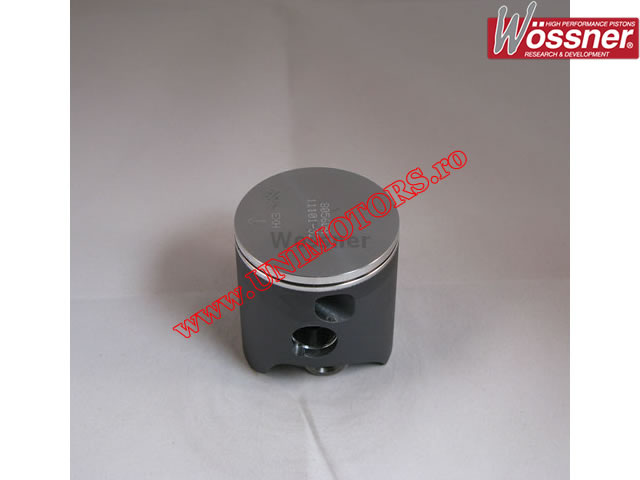

Forged piston kit Wossner for KTM SX 125 manufactured between 2001-2006.
The kit includes piston, ring, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 54.00mm
- thermal clearance: 0.05mm
- pin-to-cap distance (measured from the center of the pin): 29.50mm
- piston pin dimensions: 15x10x45mm.
Available piston sizes:
- A (53.95 mm)
- B (53.96 mm)
- C (53.97 mm)
- +2.00 mm (55.95 mm)
