Piston Kit - KTM SX144 ('07-'08) / SX150 ('09-'16) (55.95-56.97mm) - Wossner

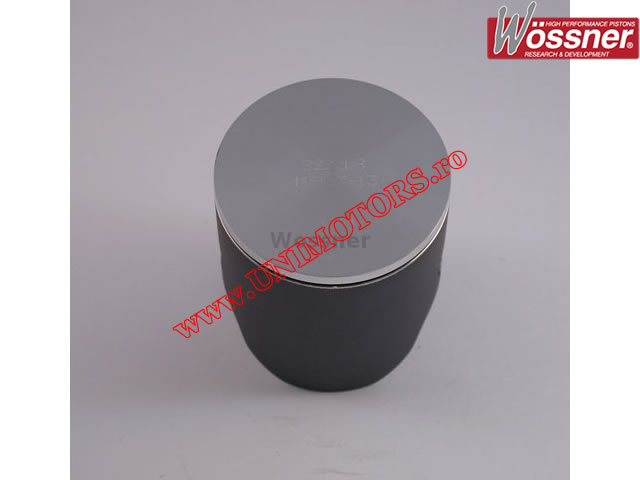

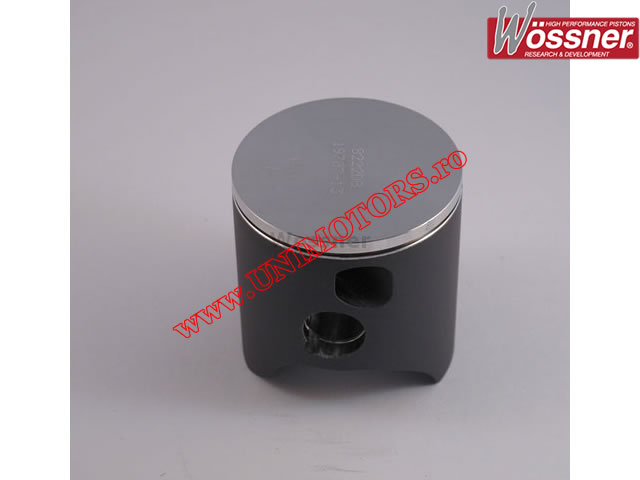

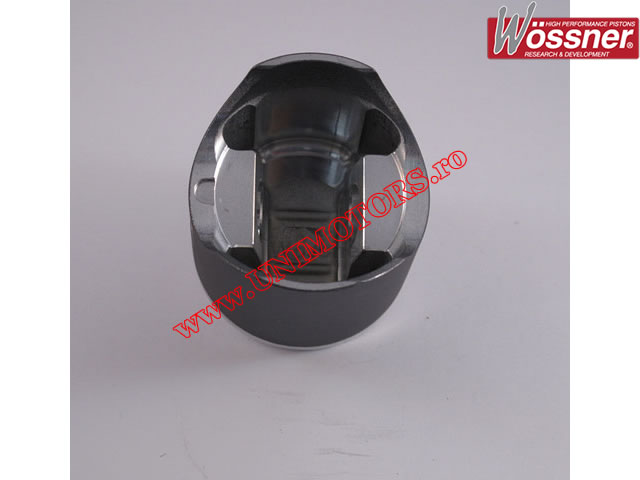

Forged piston kit Wossner for KTM SX 144 (2007-2008) / SX 150 (2009-2016).

The kit includes piston, ring, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 56.00mm
- thermal clearance: 0.05mm
- pin-to-cap distance (measured from the center of the pin): 29.50mm
- piston pin dimensions: 15x10x45mm.

Available piston sizes:
- A (55.95 mm)
- B (55.96mm)
- C (55.97mm)
