Piston Kit - Kawasaki KDX 250 E ('92-'95) / KX 250 ('90-'91) - 250 2T - ProX

Please select the piston size from the box above.

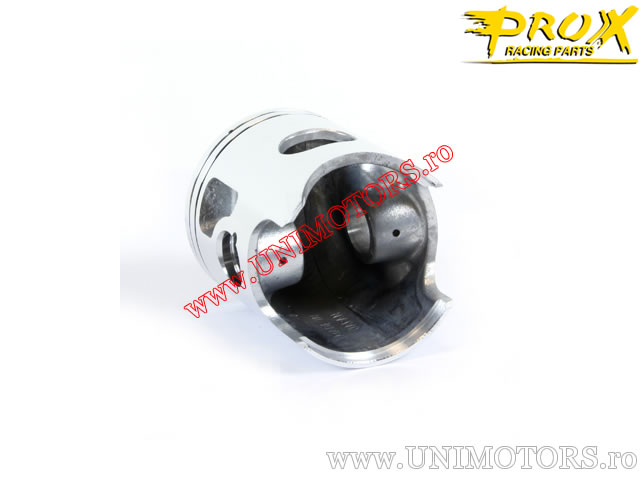

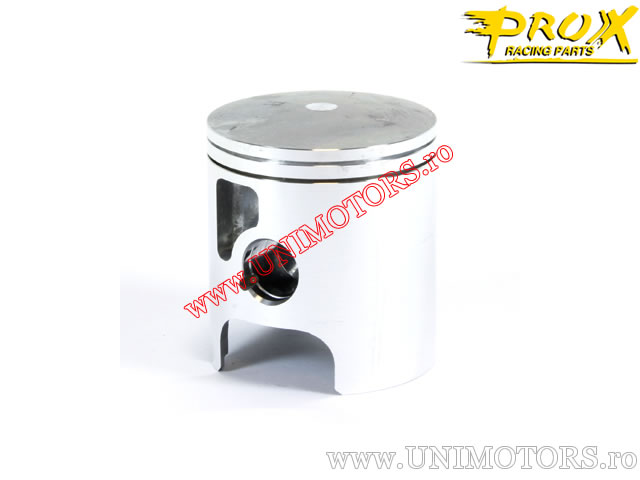

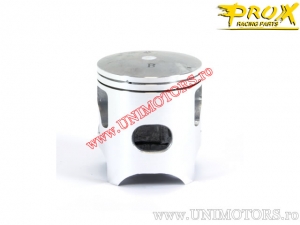

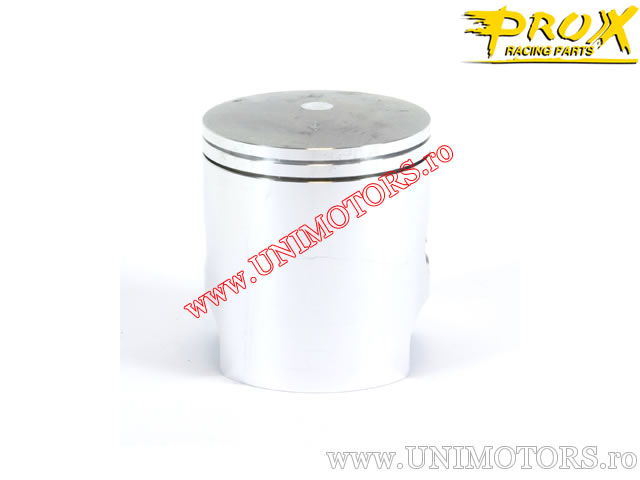

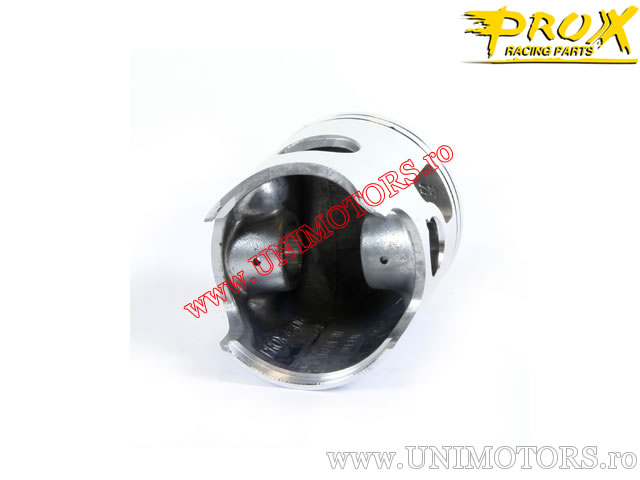

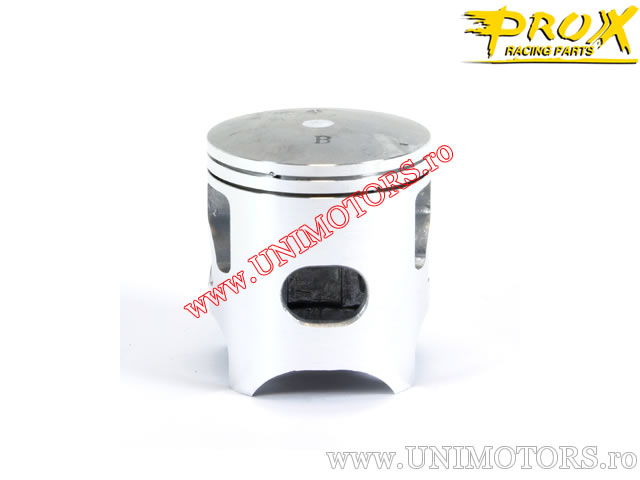

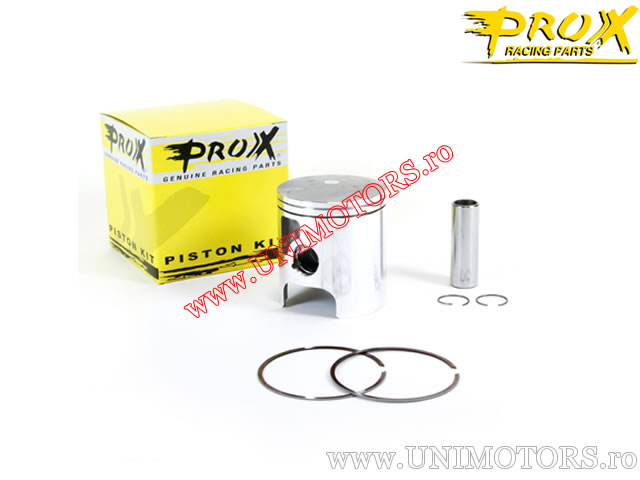

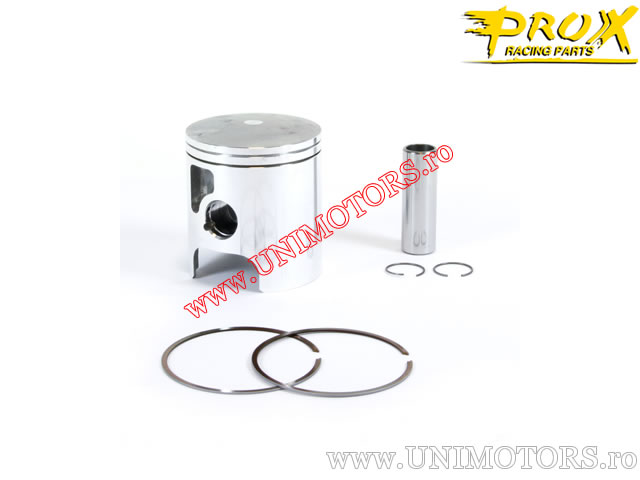

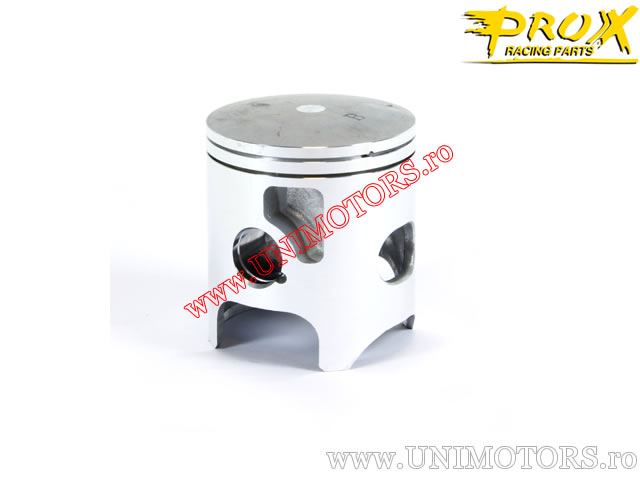

ProX piston kit for Kawasaki KDX 250 E (1992-1995) / KX 250 (1990-1991) - 250cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 67.40 mm
- engine type: 2-stroke
- total piston length (B): 76.00 mm
- piston pin diameter (C): 18.00 mm
- compression height (D): 28.00 mm
- pin ring position measured from center (E): 15.00 mm
- pin ring position measured from center (F): 15.00 mm
- internal distance of piston pin (G): 24.50 mm
- piston head shape: domed
- other information: 1 x intake window
- manufacturing technology: cast piston

Available piston sizes (A):
- B (67.35 mm)
- C (67.36 mm)
- D (67.37 mm)
