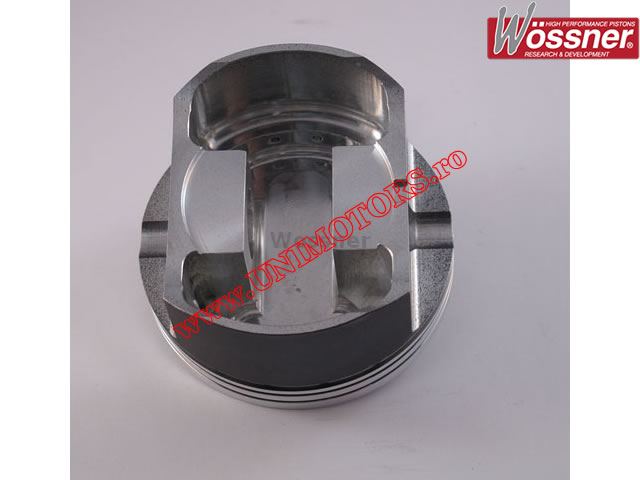

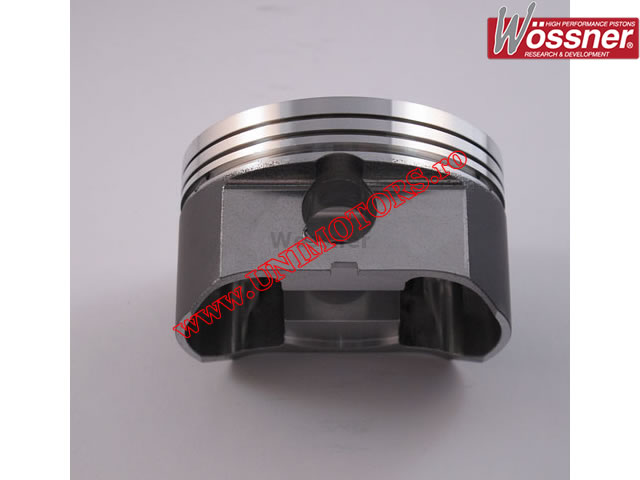

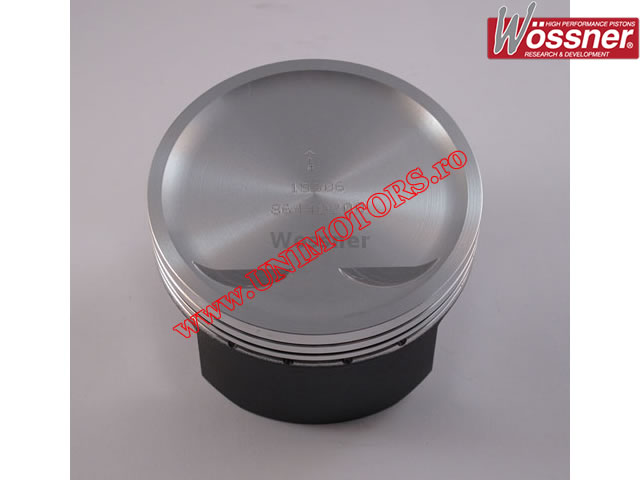

Forged piston kit Wossner for Kawasaki KLX 300 R manufactured between 1997-2006.
The kit includes piston, rings, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 78.00mm
- thermal clearance: 0.06mm
- number of rings: 3 (two compression / one oil)
- compression ratio: 11.0:1 (OEM)
- pin-to-head distance (measured from the center of the pin): 23.00mm
- piston pin dimensions: 17x10x51mm.
Available piston sizes:
- standard (77.94 mm)
- +2.00mm.
