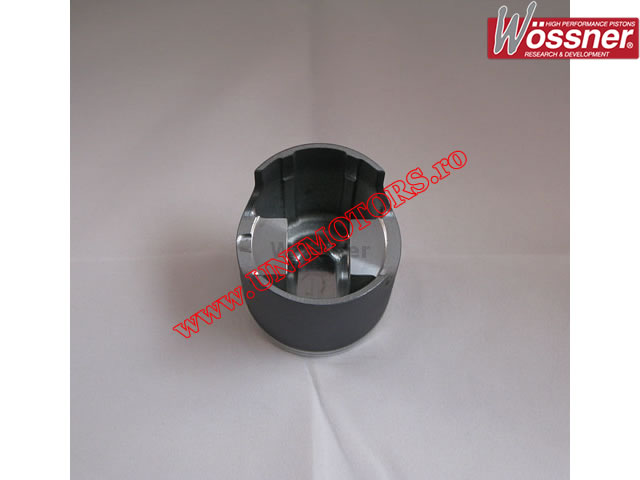

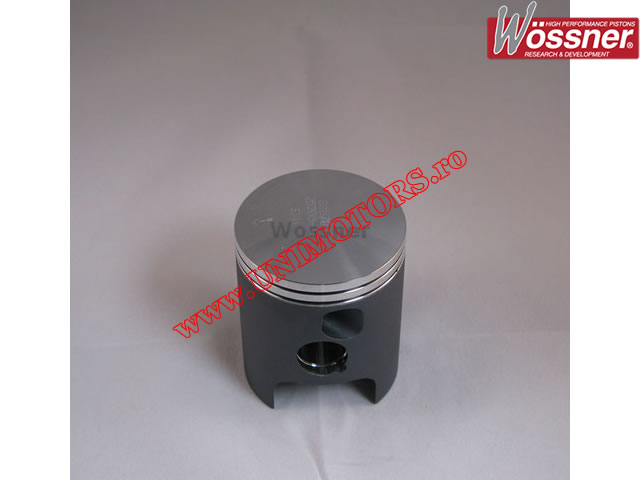

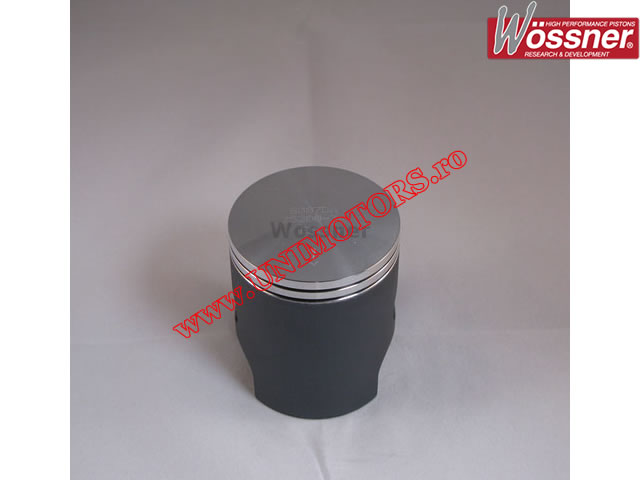

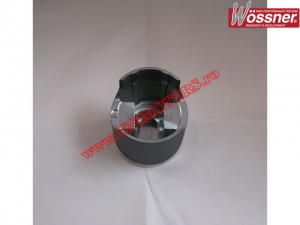

Piston Kit - Kawasaki KMX125 ('86-'05) (53.94-55.94mm) - Wossner

Forged piston kit Wossner for Kawasaki KMX 125 manufactured between 1986-2005.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 54.00mm
- thermal clearance: 0.06mm
- pin-to-cap distance (measured from the center of the pin): 32.80mm
- piston pin dimensions: 16x10x45mm.

Available piston sizes:
- A (53.94 mm)
- B (53.95 mm)
- C (53.96 mm)
- +0.50mm
- +1.00mm
- +2.00mm.
