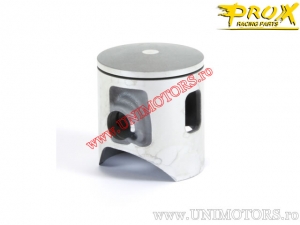

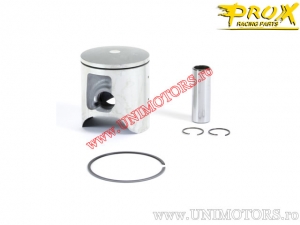

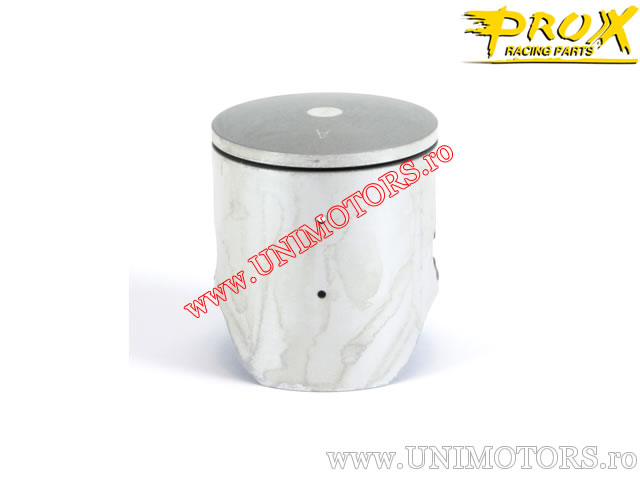

Piston Kit - Kawasaki KX 125 ('03-'08) - 125 2-stroke - ProX

Please select the piston size from the box above.

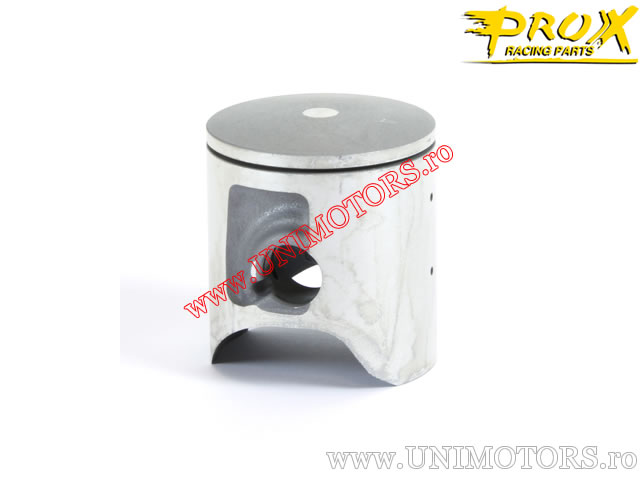

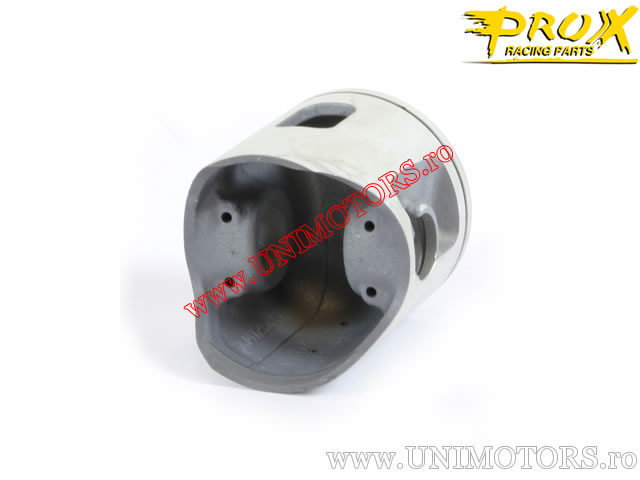

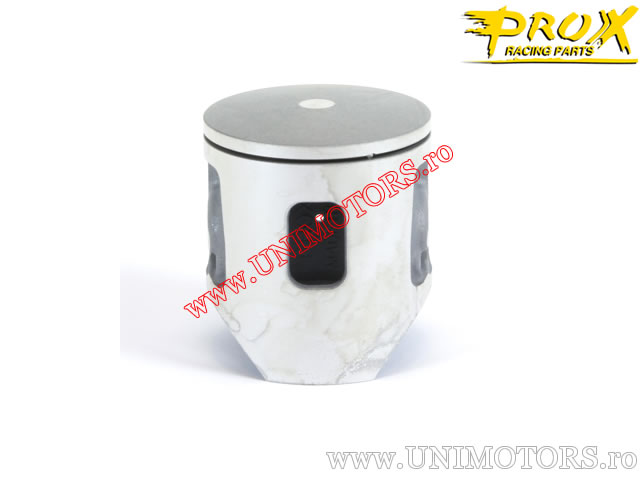

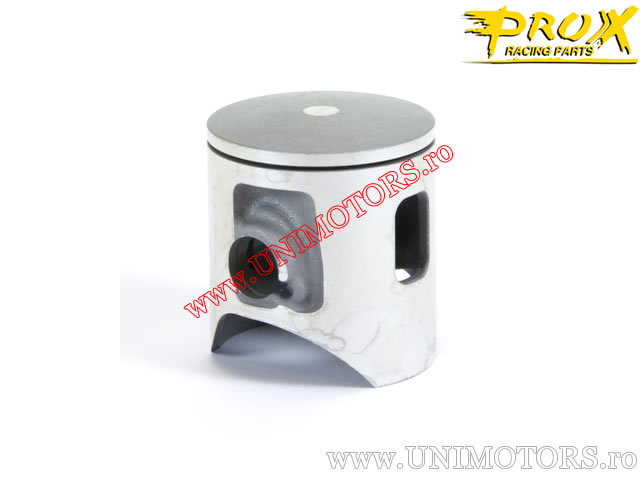

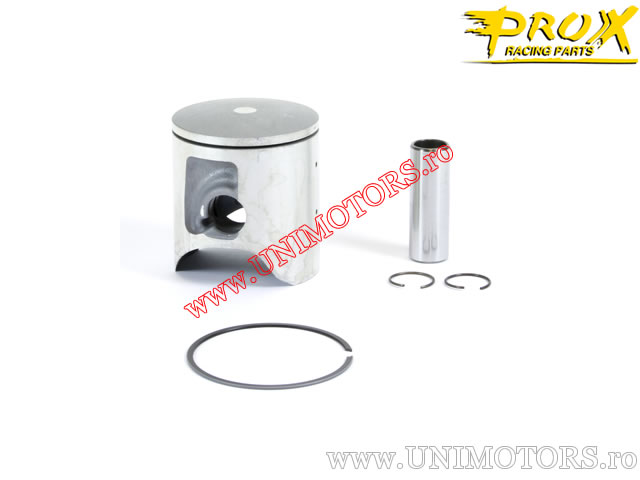

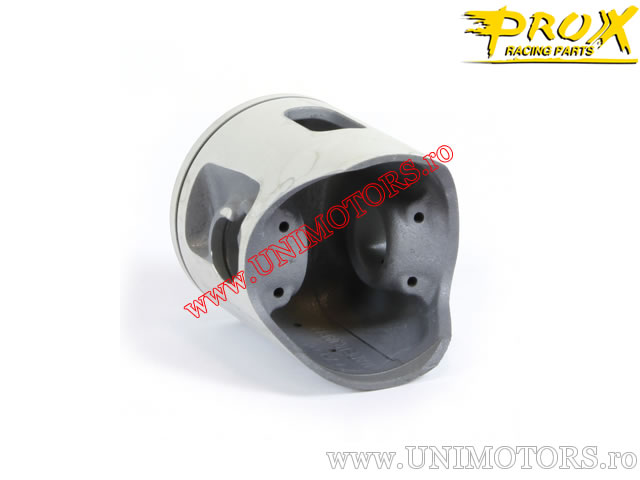

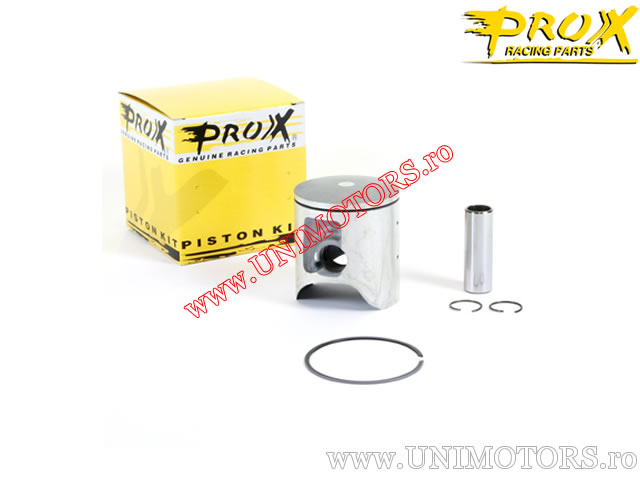

ProX piston kit for Kawasaki KX 125 (2003-2008) - 125cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 54.00 mm
- engine type: 2-stroke
- total piston length (B): 60.50 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 22.00 mm
- ring pin position measured from center (E): 12.00 mm
- ring pin position measured from center (F):
- internal distance of piston pin (G): 20.40 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- A (53.95 mm)
- B (53.96 mm)
- C (53.97 mm)
