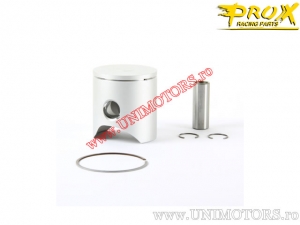

Piston Kit - Kawasaki KX 125 ('94) - 125 2T - ProX

Please select the piston size from the box above.

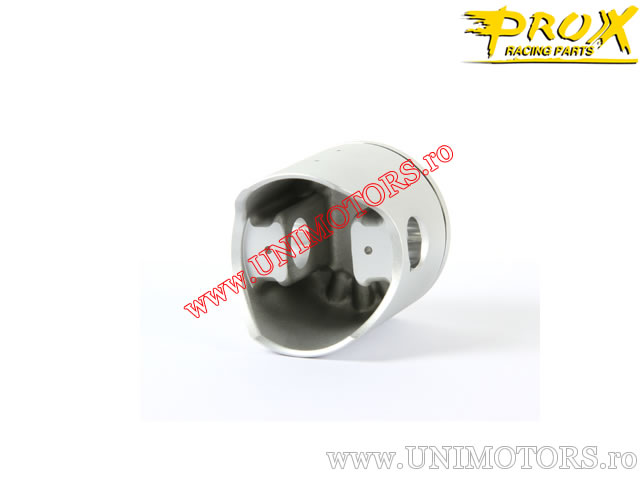

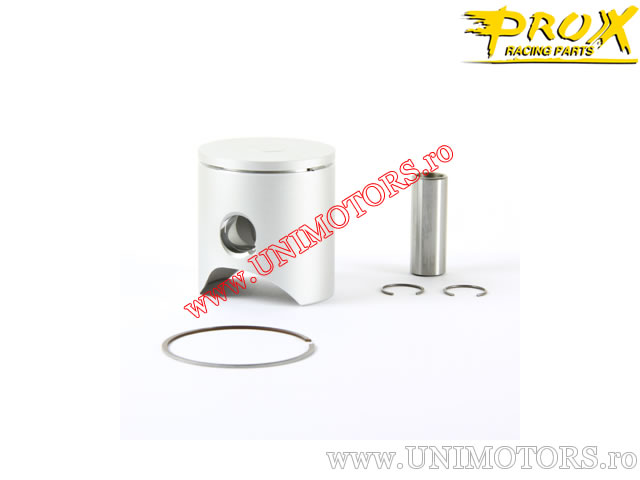

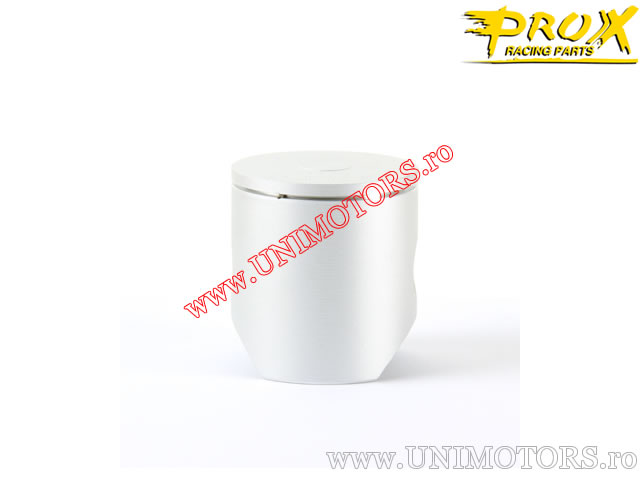

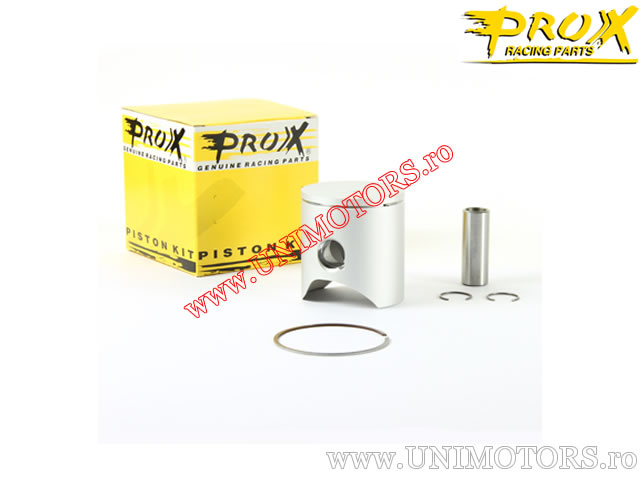

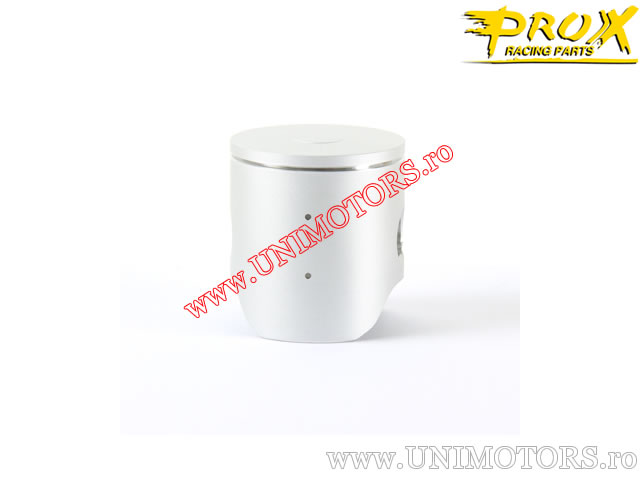

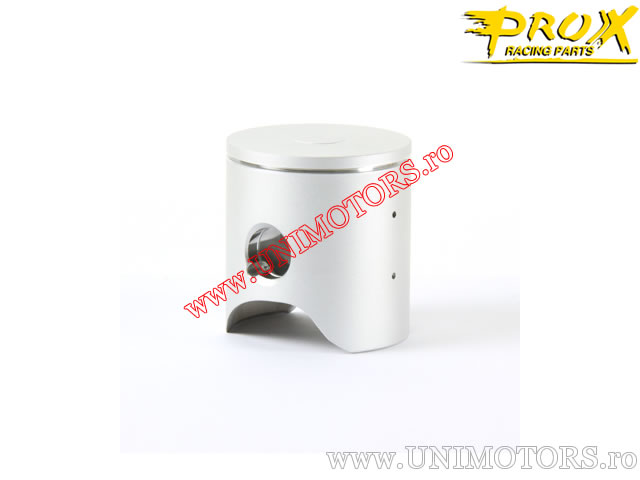

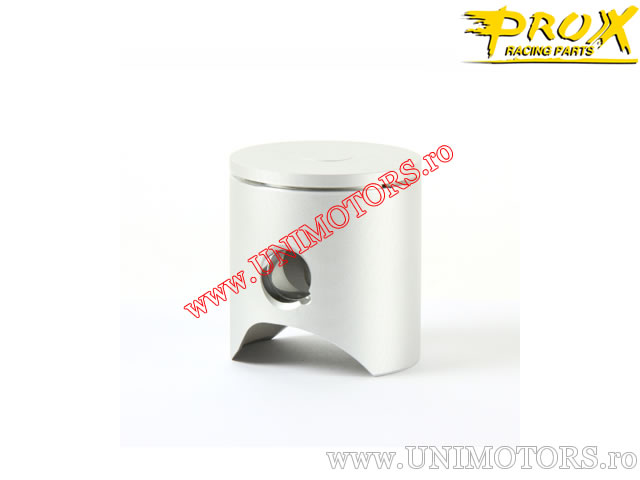

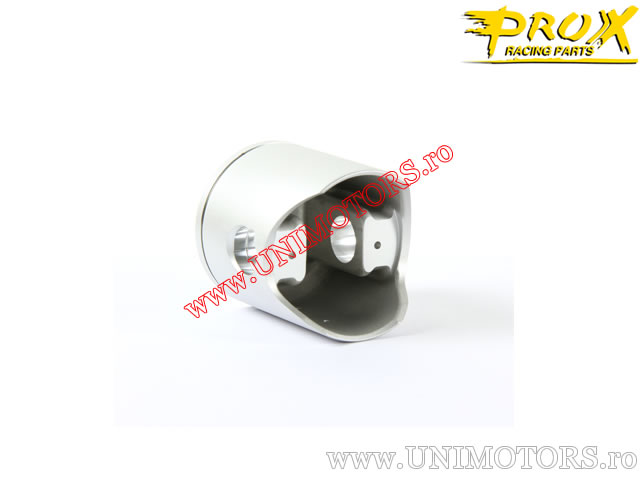

ProX piston kit for Kawasaki KX 125 (1994) - 125cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 54.00 mm
- engine type: 2-stroke
- total piston length (B): 58.00 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 22.00 mm
- pin ring position measured from center (E): 11.00 mm
- pin ring position measured from center (F):
- internal distance of piston pin (G): 20.60 mm
- piston head shape: flat
- manufacturing technology: forged piston

Available piston sizes (A):
- B (53.95 mm)
- C (53.96 mm)
- D (53.97 mm)
