Piston Kit - Kawasaki KX 250 F ('11-'14) - 250 4T - ProX

Please select the piston size from the box above.

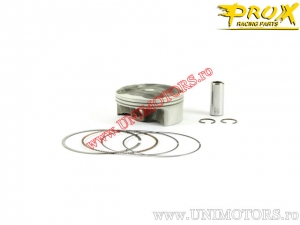

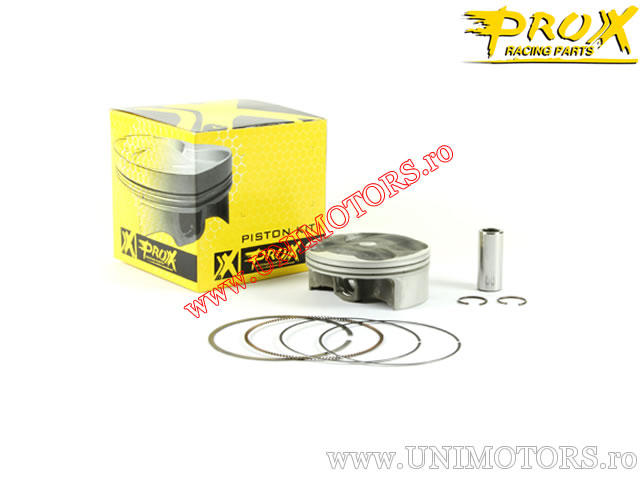

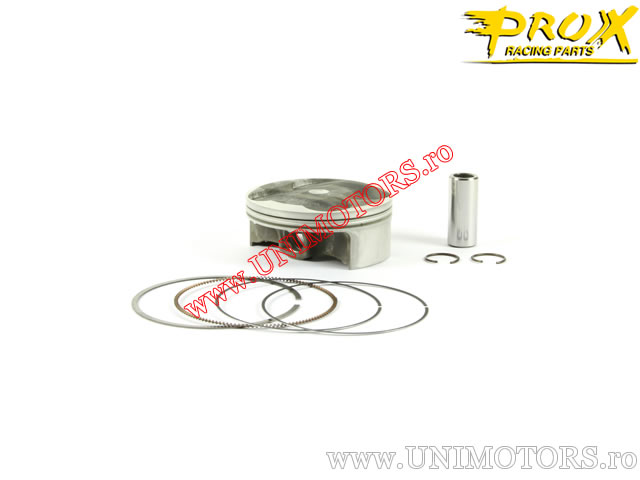

ProX piston kit for Kawasaki KX 250 F (2011-2014) - 250cc 4T. The complete application list can be found below.

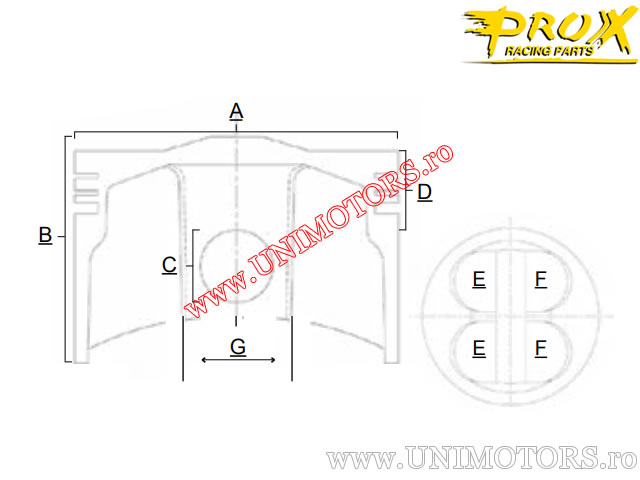

Technical specifications:
- standard cylinder diameter (factory diameter): 77.00 mm
- engine type: 4-stroke
- total piston length (B): 32.00 mm
- piston pin diameter (C): 16.00 mm
- compression height (D): 10.90 mm
- pin groove position measured from center (E): -
- pin groove position measured from center (F): -
- internal distance of piston pin (G): 17.50 mm

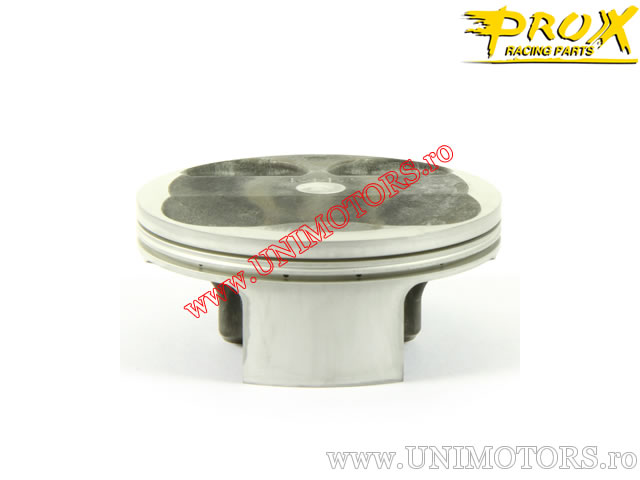

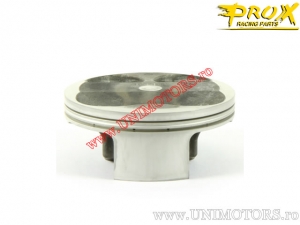

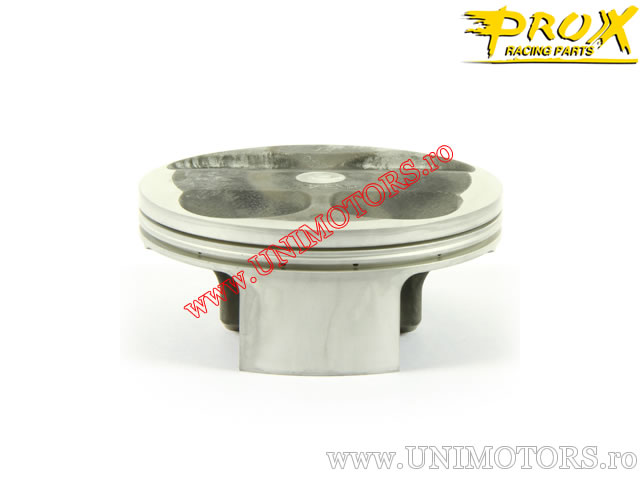

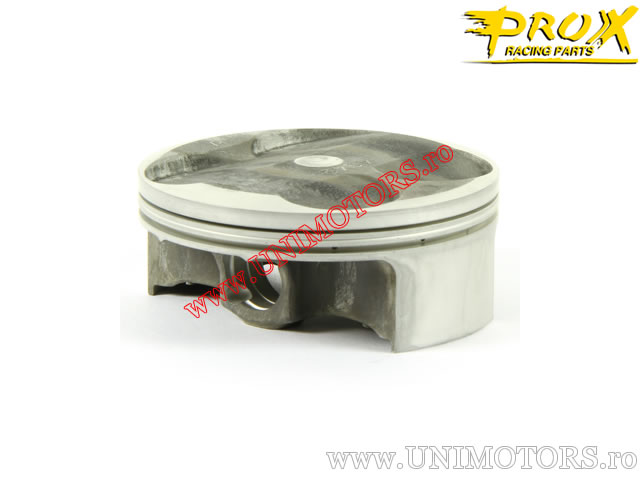

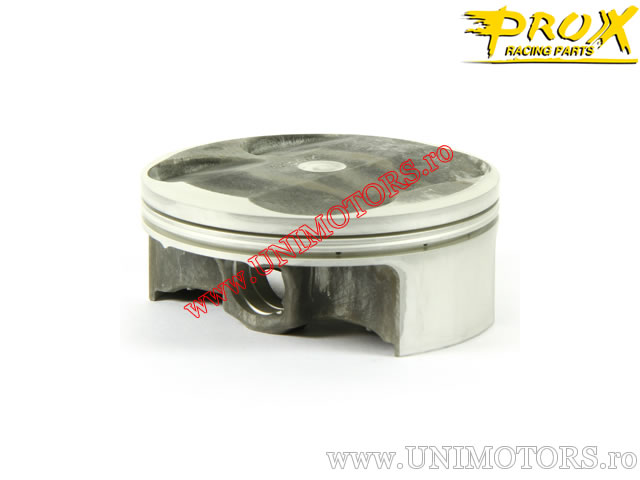

- piston head shape: flat with domed center
- other information: 4 x valve pockets

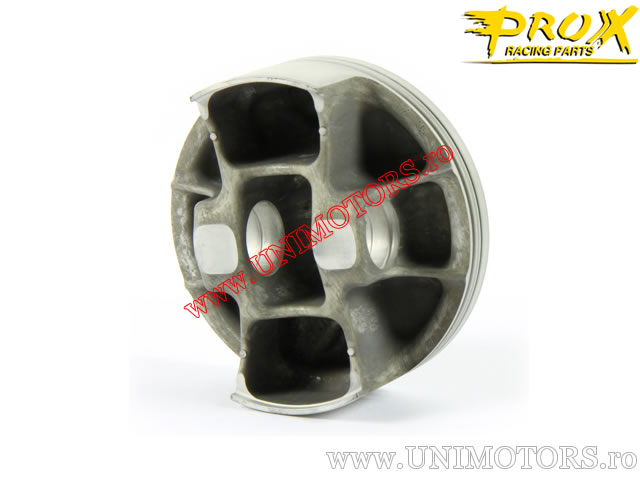

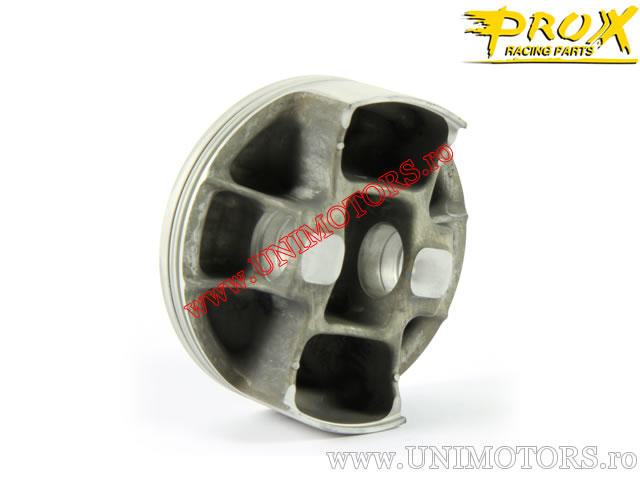

- manufacturing technology: forged piston
- compression ratio: 13.5:1

Available piston sizes (A):
- A (76.96 mm)
- B (76.97 mm)
- C (76.98 mm)
