Piston Kit - Kawasaki KX 500 ('88-'04) - 500 2-stroke - ProX

Please select the piston size from the box above.

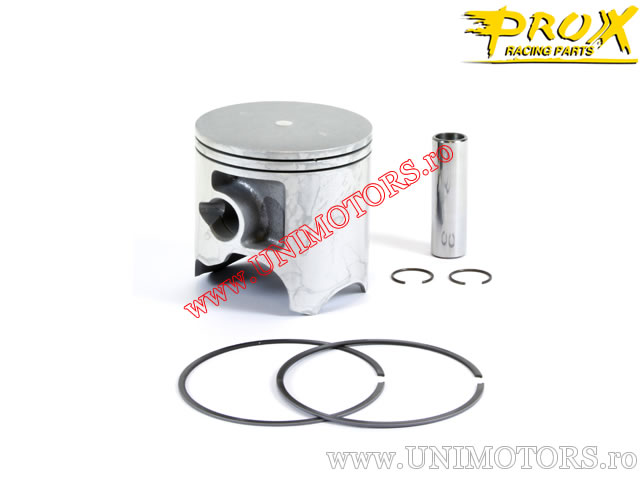

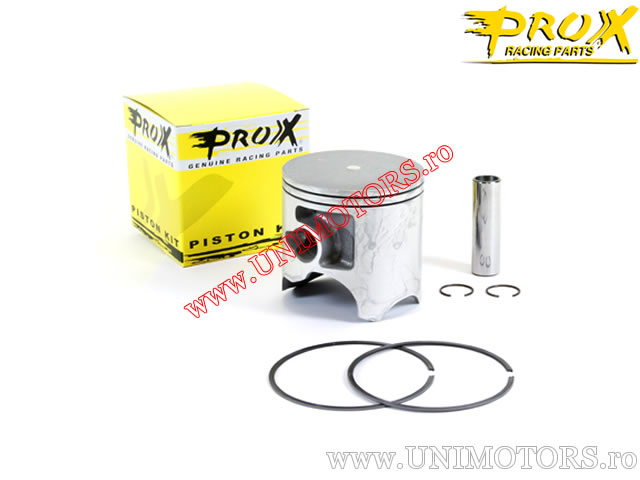

ProX piston kit for Kawasaki KX 500 (1988-2004) - 500cc 2T. The complete application list can be found below.

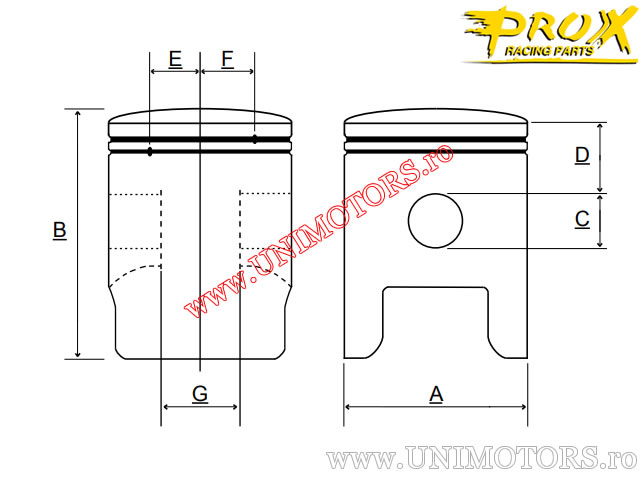

Technical specifications:
- standard cylinder diameter (factory diameter): 86.00 mm
- engine type: 2-stroke
- total piston length (B): 87.00 mm
- piston pin diameter (C): 19.00 mm
- compression height (D): 28.00 mm
- ring pin position measured from center (E): 20.00 mm
- ring pin position measured from center (F): 20.00 mm
- internal distance of piston pin (G): 26.50 mm
- piston head shape: domed
- additional information:
- manufacturing technology: cast piston

Available piston sizes (A):
- A (85.94 mm)
- B (85.95 mm)
