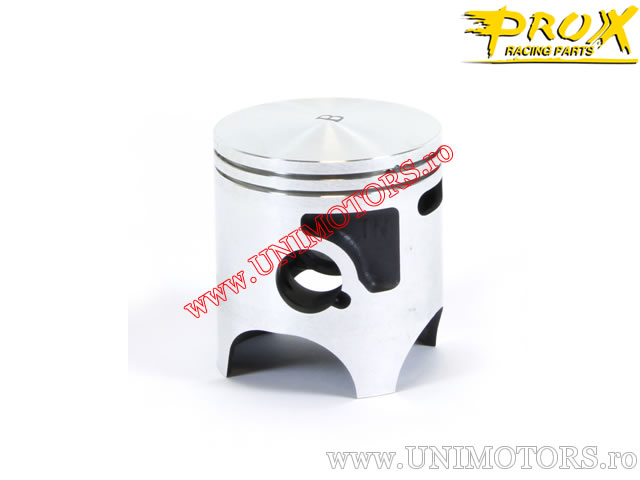

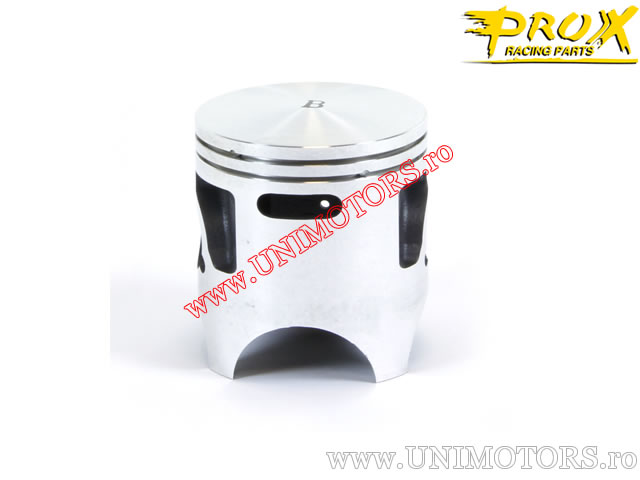

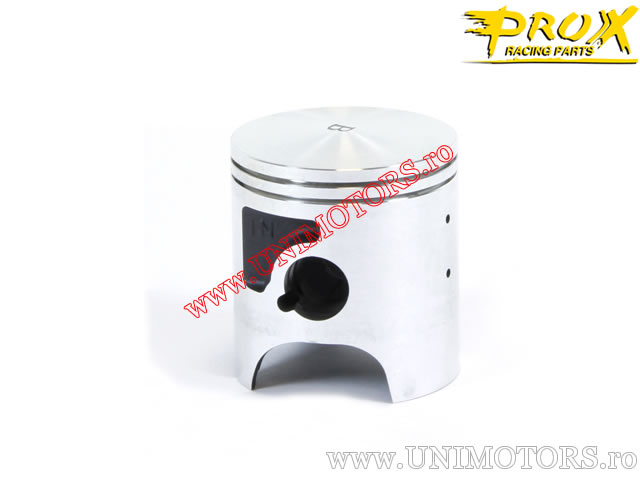

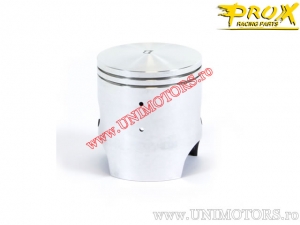

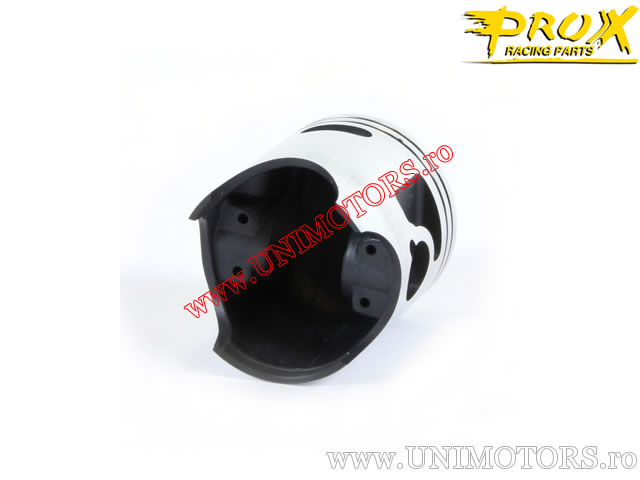

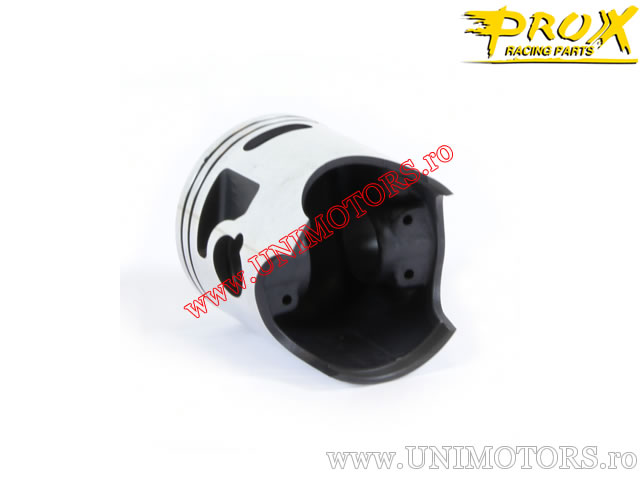

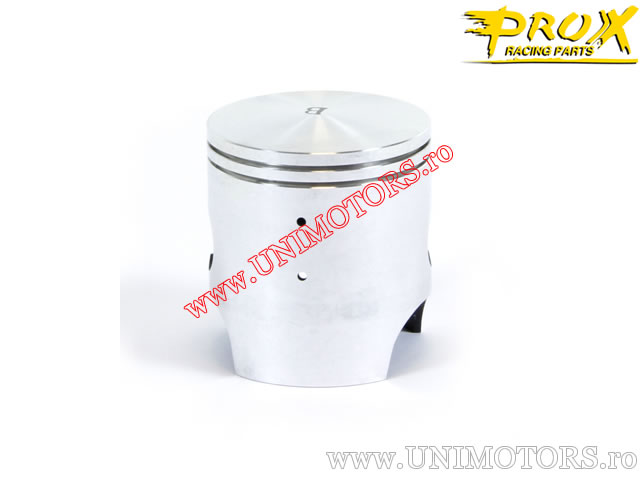

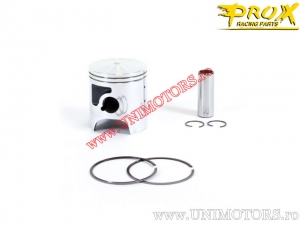

Piston Kit - Kawasaki KX 85 ('01-'13) - 85 2-Stroke - ProX

Please select the piston size from the box above.

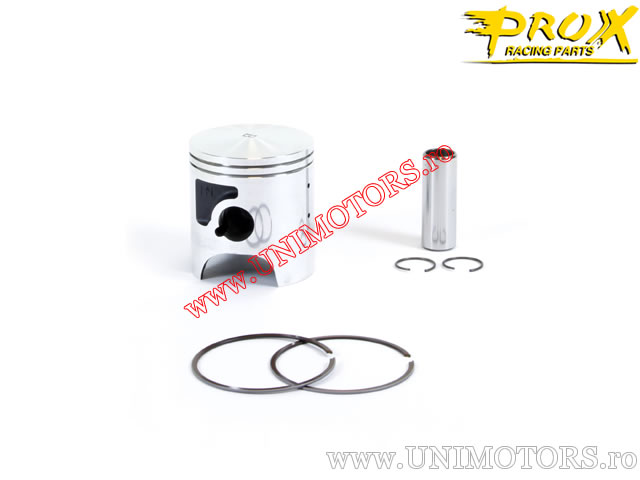

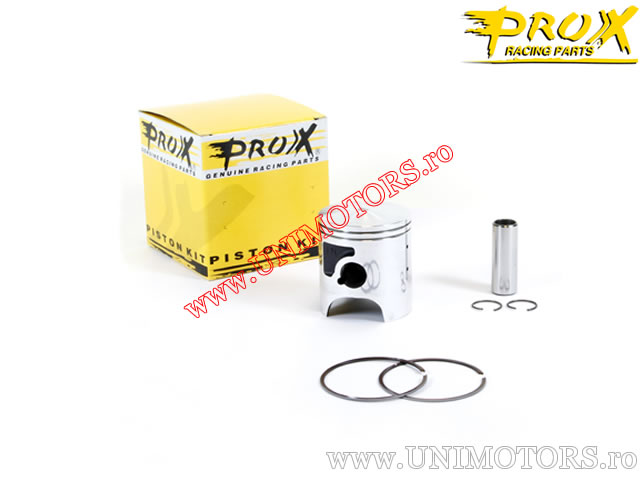

ProX piston kit for Kawasaki KX 85 (2001-2013) - 85cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 48.50 mm
- engine type: 2-stroke
- total piston length (B): 54.00 mm
- piston pin diameter (C): 14.00 mm
- compression height (D): 19.00 mm
- ring pin position measured from center (E): 17.00 mm
- ring pin position measured from center (F): 10.00 mm
- internal distance of piston pin (G): 17.50 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- A (48.45 mm)
- B (48.46 mm)
- C (48.47 mm)
