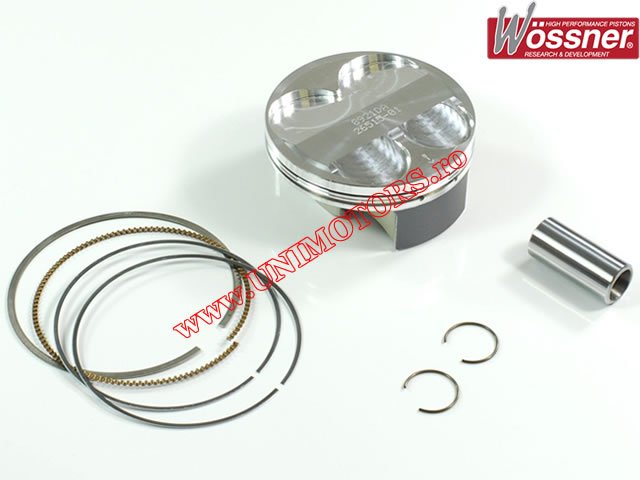

Forged piston kit Wossner for Kawasaki KX 250 F manufactured in the period 2015-2016.
The kit includes piston, rings, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 77.00mm
- thermal clearance: 0.05mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 13.80:1 (OEM)
- pin-to-cap distance (measured from the center of the pin): 19.80mm
- piston pin dimensions: 16x10x36mm.
Available piston sizes:
- A (76.95mm)
- B (76.96mm)
- C (76.97mm)
