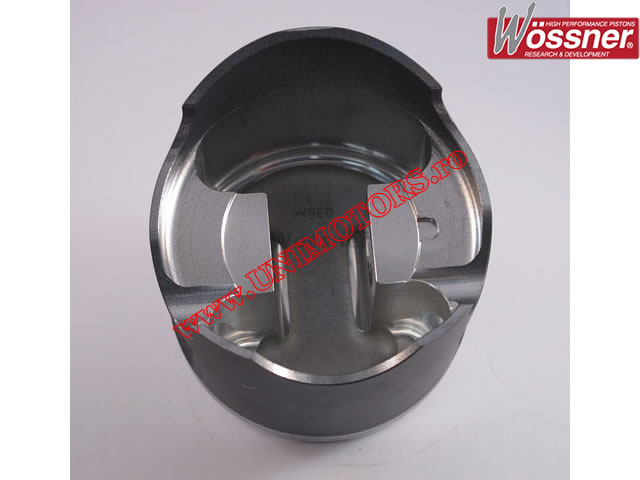

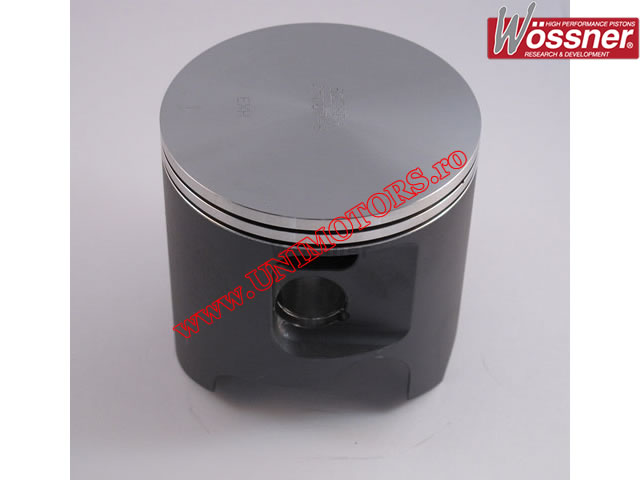

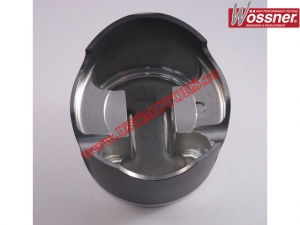

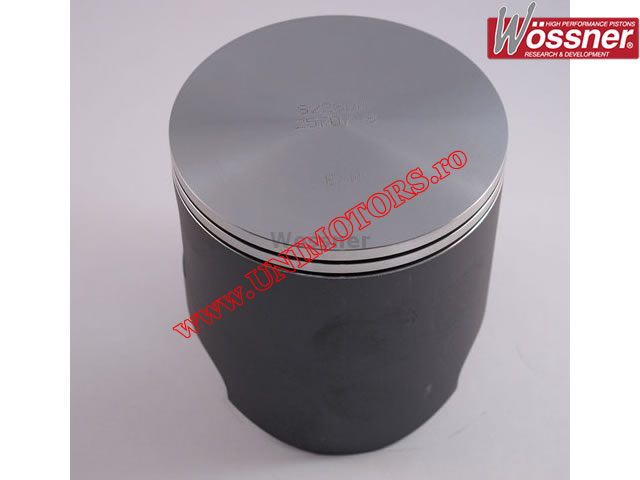

Forged piston kit Wossner for Kawasaki KX 500 manufactured between 1988-2004.
The kit includes piston, rings, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 86.00mm
- thermal clearance: 0.07mm
- pin-to-cap distance (measured from the center of the pin): 37.50mm
- piston pin dimensions: 19x13x61mm.
Available piston sizes:
- standard (85.93 mm)
- +0.50mm
- +1.00mm
- +1.50mm
- +2.00mm
- +4.00mm
