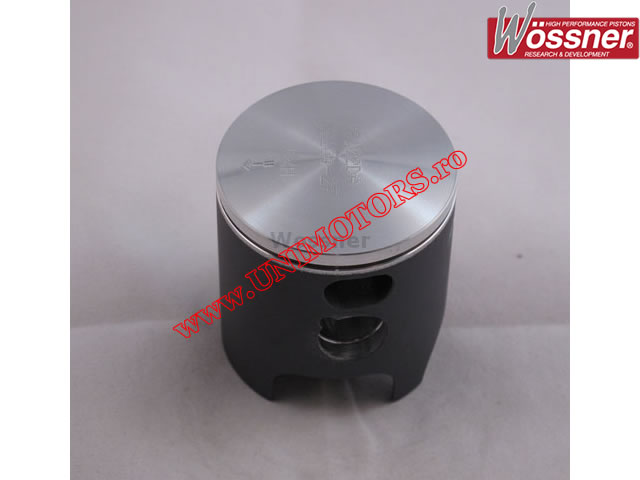

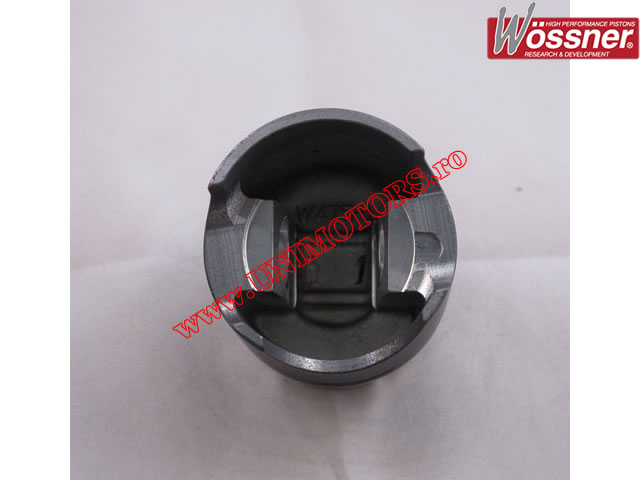

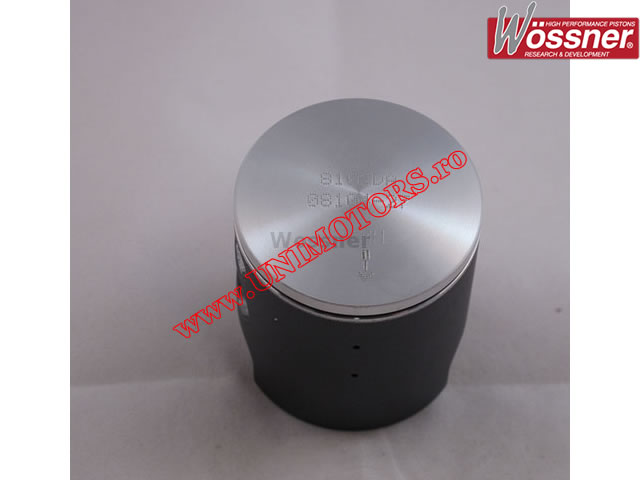

Piston Kit - Kawasaki KX85 ('01-'16) (48.45-52.95mm) - Wossner

Forged piston kit Wossner for Kawasaki KX 85 manufactured between 2001-2016.

The kit includes piston, ring, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 48.50mm
- thermal clearance: 0.05mm
- pin-to-cap distance (measured from the center of the pin): 26.00mm
- piston pin dimensions: 14x10x38.5mm.

Available piston sizes:
- A (48.45 mm)
- B (48.46 mm)
- C (48.47 mm)
- +3.50 mm
- +4.00 mm
- +4.50 mm
