Piston Kit - Polaris Edge 700 / RMK 700 / SKS 700 / Switchback 700 / Pro X 700 / Pro X2 700 / XC 700 - 700 2T - ProX

Please select the piston size from the box above.

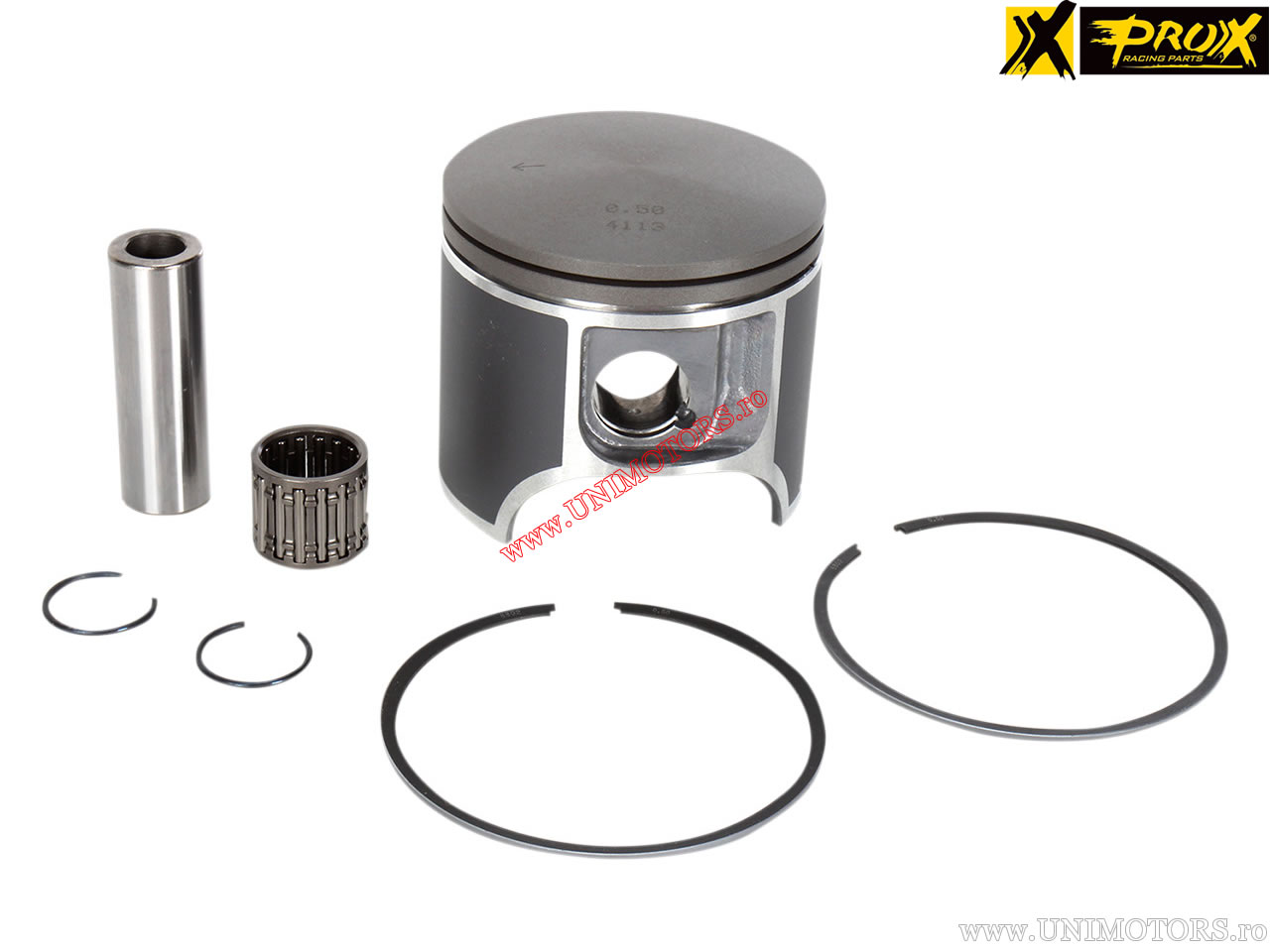

ProX piston kit for Polaris Edge 700 Classic (2002-2004) / RMK 700 (1997-2004) / SKS 700 (1999-2003) / Switchback 700 (2004) / PRO X 700 (2003-2004) / Pro X2 700 (2004) / XC 700 (1998-2005) - 700cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 81.00 mm
- engine type: 2-stroke
- total piston length (B): 74.50 mm
- piston pin diameter (C): 20.00 mm
- compression height (D): 22.80 mm
- pin ring position measured from center (E): 17.00 mm
- pin ring position measured from center (F): 17.00 mm
- internal distance of piston pin (G): 22.50 mm
- piston head shape: domed
- other information:
- manufacturing technology: cast piston - coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- standard (81.00 mm)
- +0.50mm (81.50 mm)
- +1.00mm (82.00 mm)
