Piston Kit - Suzuki LT-R 450 ('06-'12) - 450 4T - ProX

Please select the piston size from the box above.

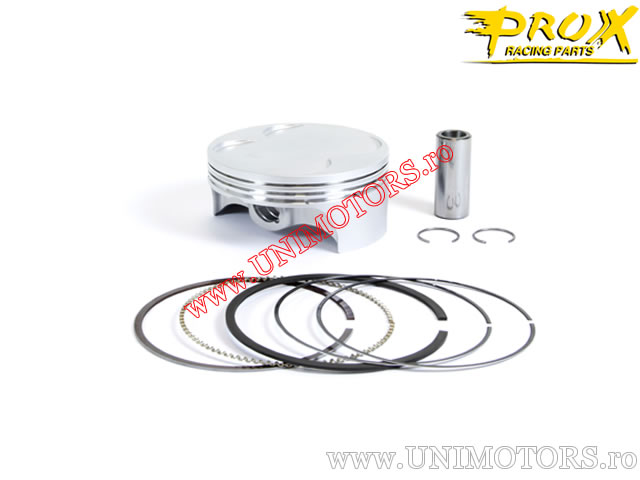

ProX piston kit for Suzuki LT-R 450 manufactured between 2006-2012 - 450cc 4T. The complete application list is found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 95.50 mm
- engine type: 4-stroke
- total piston length (B): 42.50 mm
- piston pin diameter (C): 19.00 mm
- compression height (D): 15.00 mm
- pin ring position measured from center (E):
- pin ring position measured from center (F):
- internal distance of piston pin (G): 22.50 mm
- piston head shape: flat
- other information: 4 x valve pockets
- manufacturing technology: forged piston
- compression ratio: 11.7:1

Available piston sizes (A):
- A (95.46 mm)
- B (95.47 mm)
- C (95.48 mm)
