Piston Kit - Suzuki RM 125 ('90-'99) - 125 2-stroke - ProX

Please select the piston size from the box above.

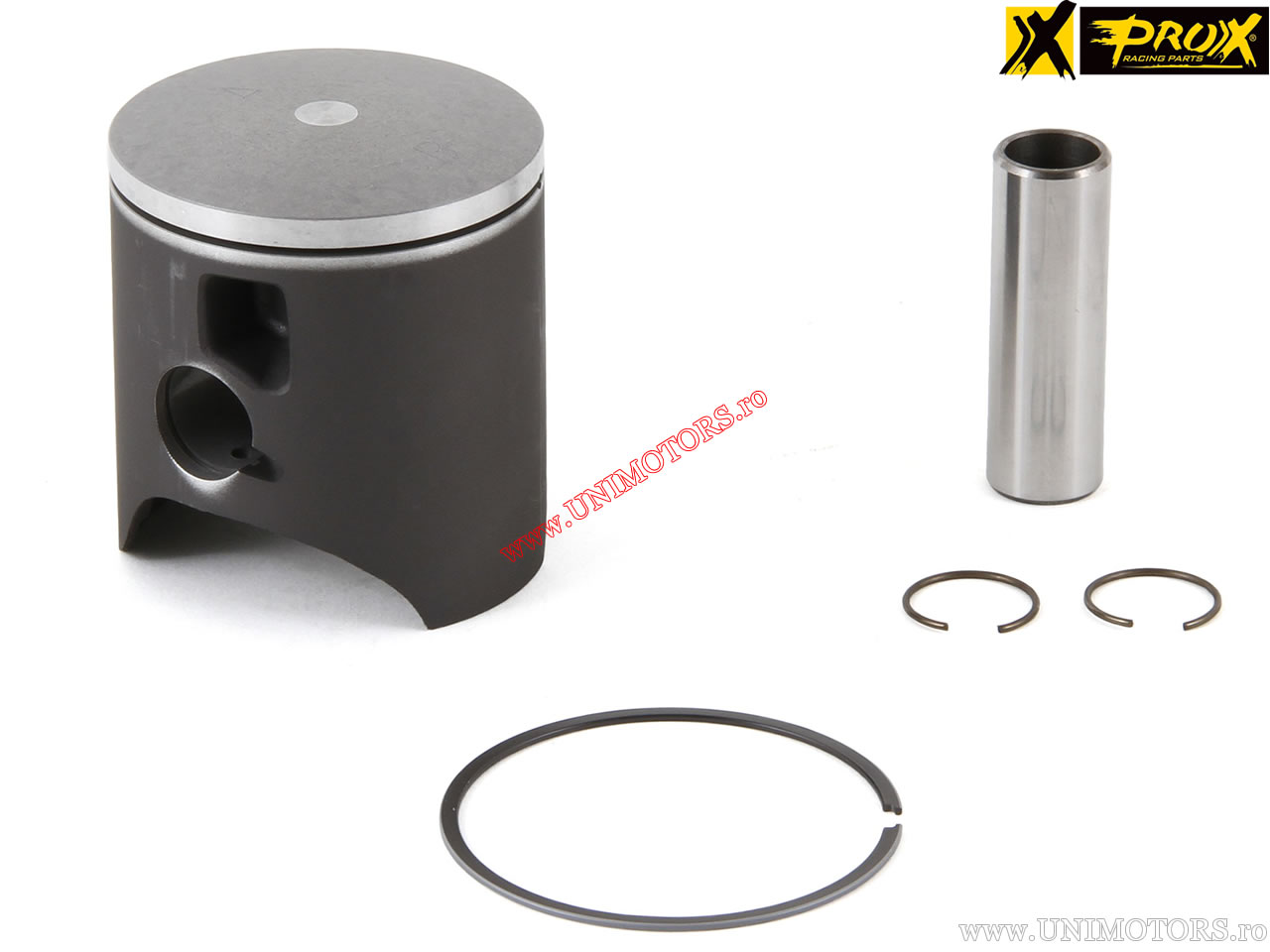

ProX piston kit for Suzuki RM 125 manufactured between 1990-1999 - 125cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 54.00 mm
- engine type: 2-stroke
- total piston length (B): 59.50 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 22.00 mm
- pin ring position measured from center (E): 10.00 mm
- pin ring position measured from center (F):
- internal distance of piston pin (G): 20.00 mm
- piston head shape: domed
- manufacturing technology: cast piston coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- A (53.94 mm)
- B (53.95 mm)
- C (53.96 mm)
- D (53.97 mm)
