Piston Kit - Suzuki RM 250 ('00-'02) - 250 2T - ProX

Please select the piston size from the box above.

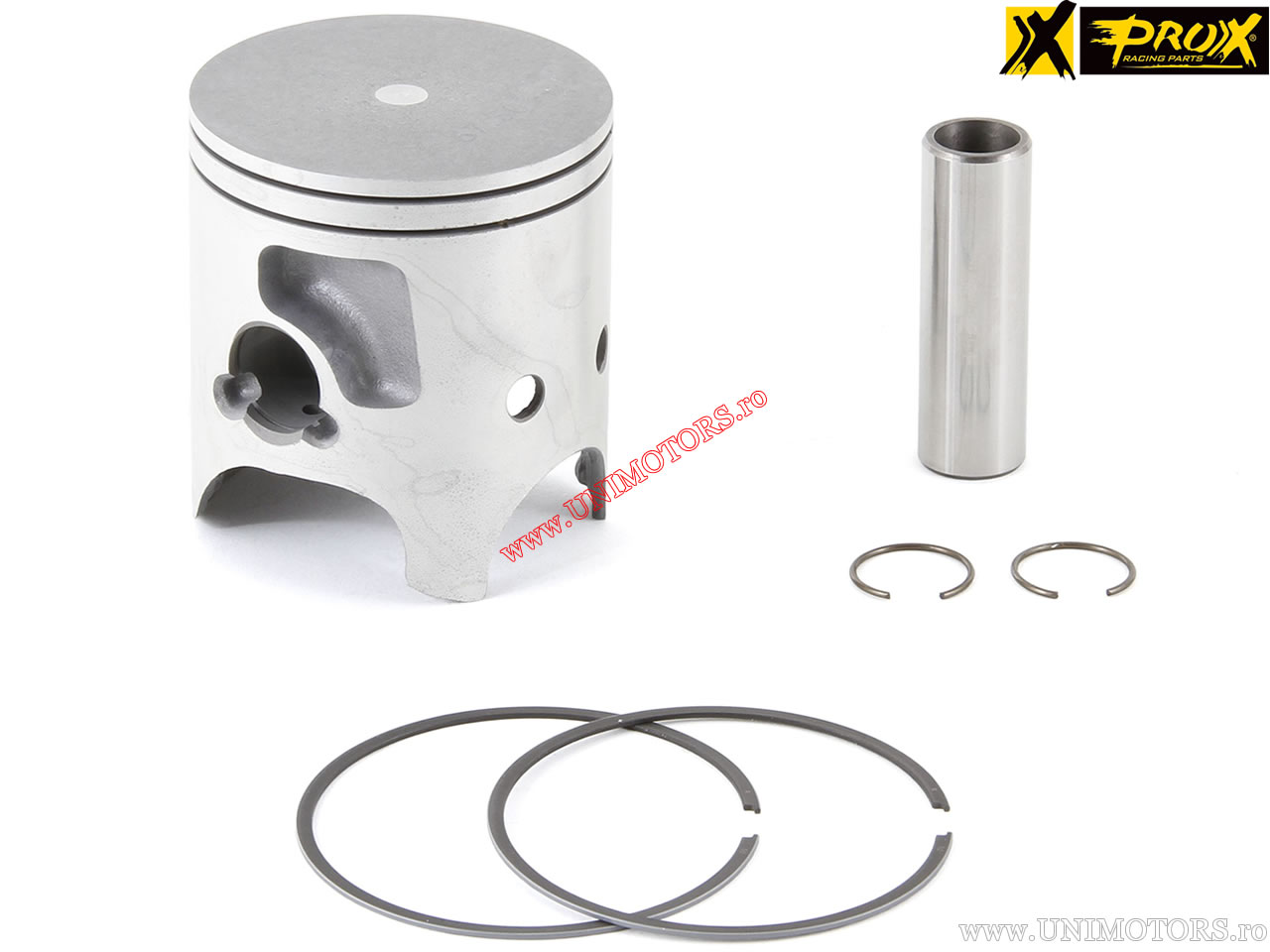

ProX piston kit for Suzuki RM 250 manufactured between 2000-2002 - 250cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 66.40 mm
- engine type: 2-stroke
- total piston length (B): 75.50 mm
- piston pin diameter (C): 18.00 mm
- compression height (D): 29.00 mm
- pin ring position measured from center (E): 14.50 mm
- pin ring position measured from center (F): 14.50 mm
- internal distance of piston pin (G): 23.20 mm
- piston head shape: flat
- additional information: 2 x intake windows
- manufacturing technology: cast piston

Available piston sizes (A):
- A (66.34 mm)
- B (66.35 mm)
- C (66.36 mm)
