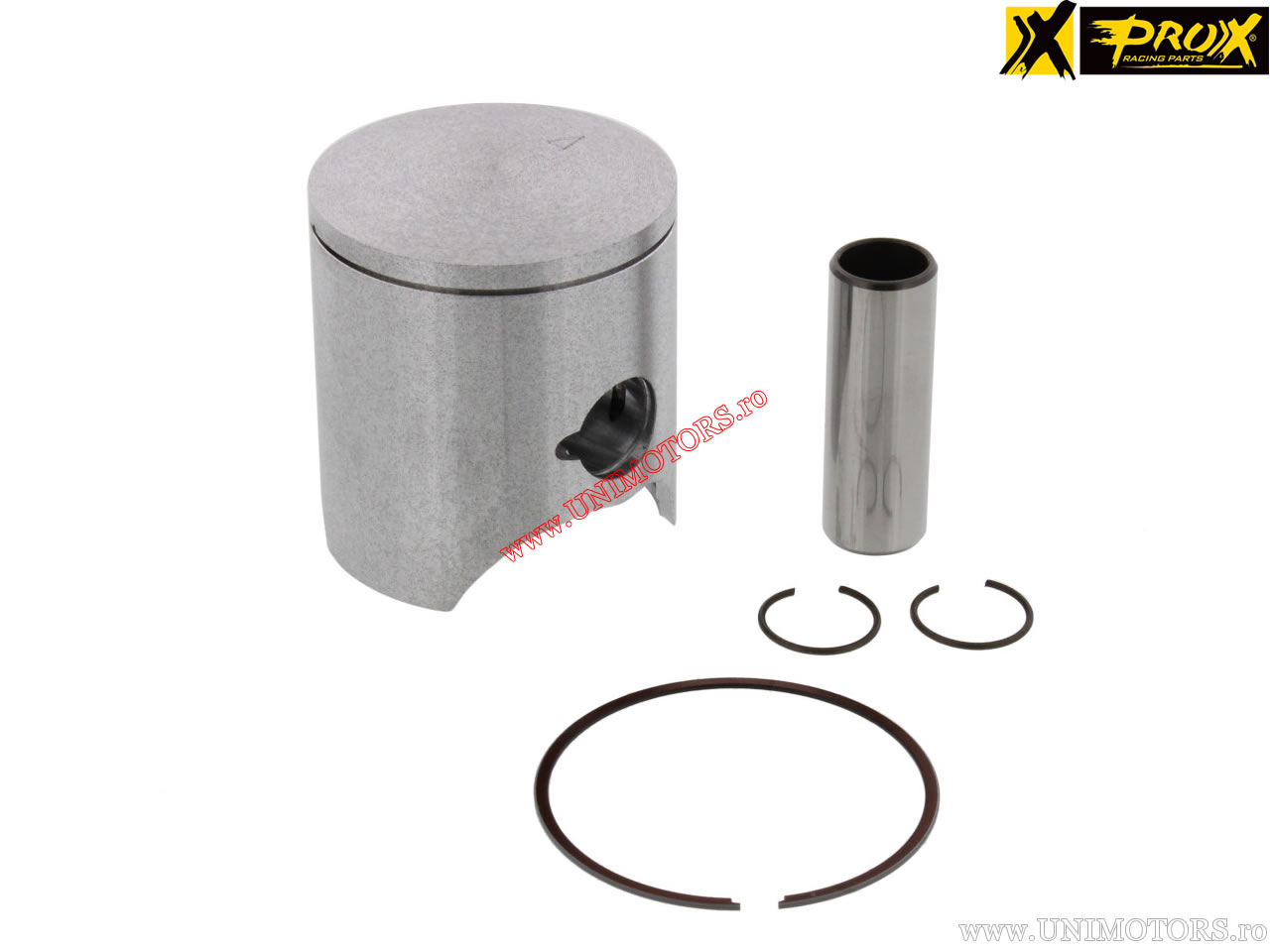

Piston Kit - Suzuki RM 80 (USA version - 82cc / '91-'01) - 80 2-stroke - ProX

Please select the piston size from the box above.

ProX piston kit for Suzuki RM 80 (USA version - 82cc) manufactured from 1991-2001 - 80cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 47.50 mm
- engine type: 2 stroke
- total piston length (B): 53.00 mm
- piston pin diameter (C): 14.00 mm
- compression height (D): 20.00 mm
- pin ring position measured from center (E): 11.00 mm
- pin ring position measured from center (F):
- internal distance of piston pin (G): 16.00 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- standard (47.50 mm)
- +0.50mm (48.00 mm)
- +1.00mm (48.50 mm)
- +1.50mm (49.00 mm)
