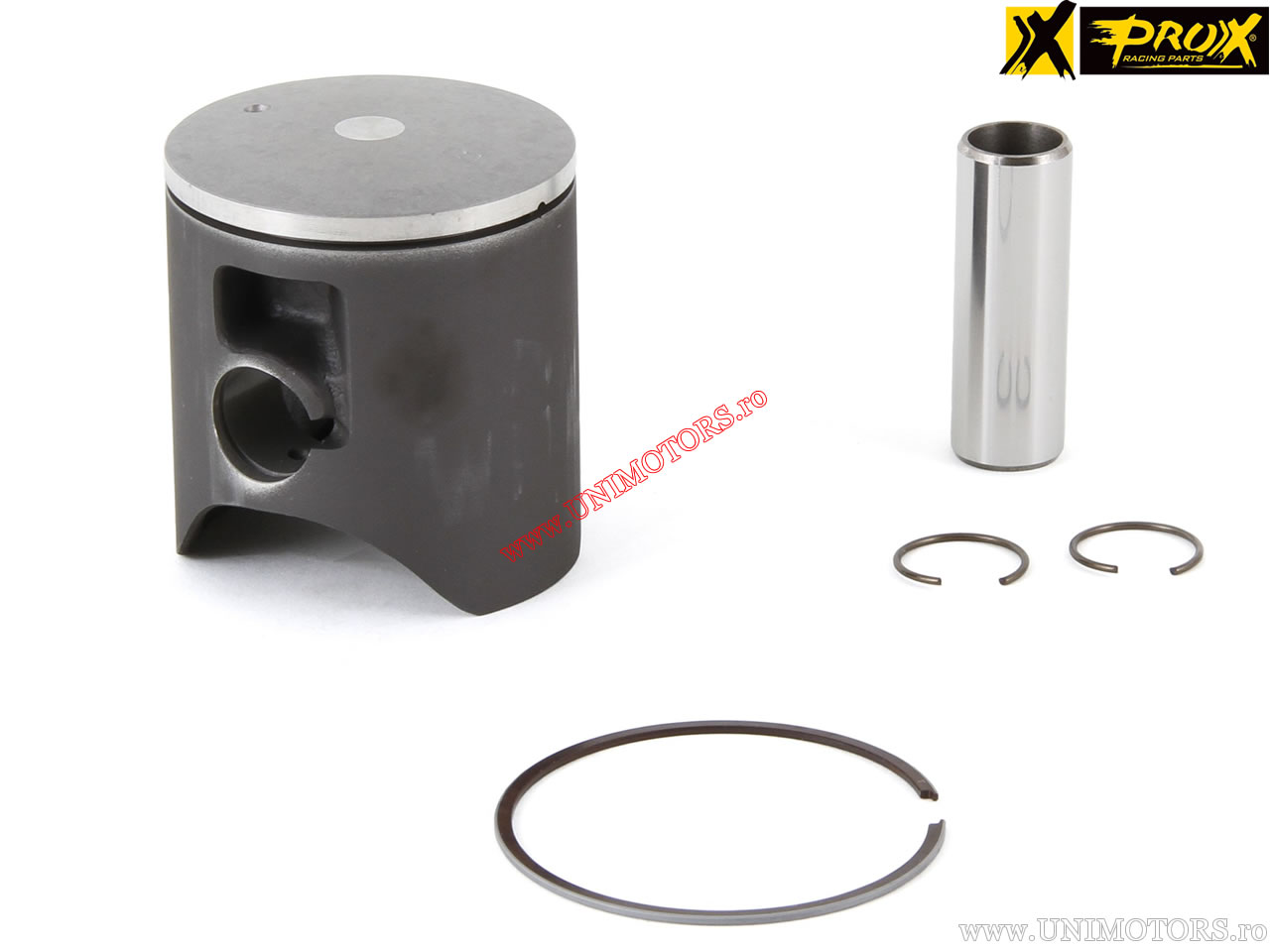

Piston Kit - Suzuki RM 85 ('02-'20) - 85 2T - ProX

Please select the piston size from the box above.

ProX piston kit for Suzuki RM 85 manufactured between 2002-2020 - 85cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 48.00 mm
- engine type: 2-stroke
- total piston length (B): 53.00 mm
- piston pin diameter (C): 14.00 mm
- compression height (D): 20.00 mm
- pin ring position measured from center (E): 0.00 mm
- pin ring position measured from center (F):
- internal distance of piston pin (G): 16.75 mm
- piston head shape: domed
- manufacturing technology: cast piston coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- A (47.94 mm)
- B (47.95 mm)
- C (47.96 mm)
