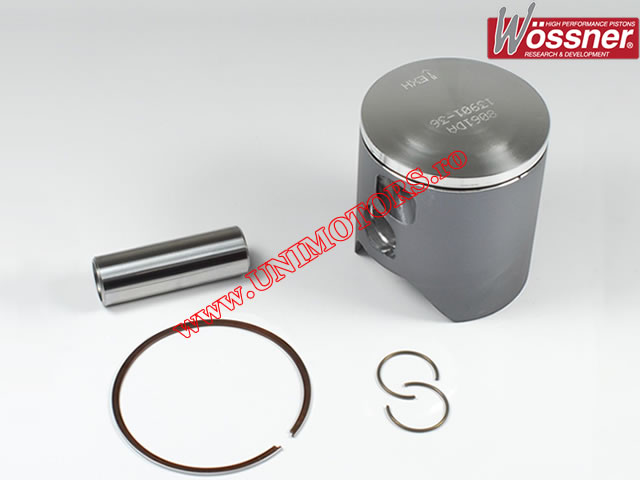

Piston Kit - Suzuki RM125 ('00-'03) (53.95-55.95mm) - Wossner

Forged piston kit Wossner for Suzuki RM 125 2T manufactured between 2000-2003.

The kit includes piston, ring, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 54.00mm
- thermal clearance: 0.05mm
- pin-to-cap distance (measured from the center of the pin): 29.50mm
- piston pin dimensions: 15x10x45mm.

Available piston sizes:
- A (53.95 mm)
- B (53.96 mm)
- C (53.97 mm)
- +0.50mm (54.45 mm)
- +1.00mm (54.95 mm)
- +1.50mm (55.45 mm)
- +2.00mm (55.95 mm)
