Piston Kit - Suzuki RM85 ('02-'16) (47.95-49.95mm) - Wossner

Forged piston kit Wossner for Suzuki RM 85 manufactured between 2002-2016.

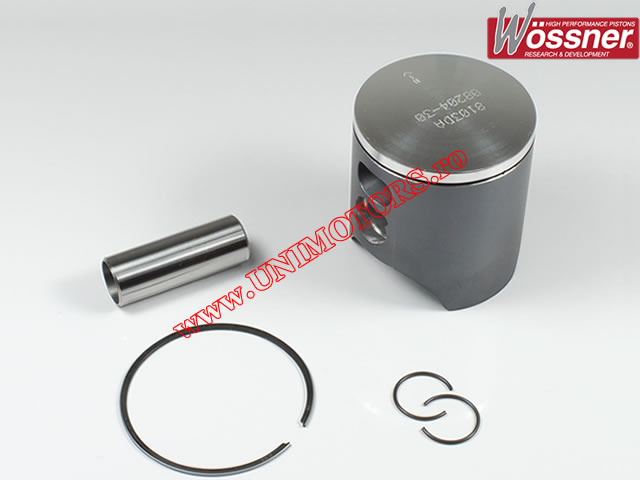

The kit includes piston, ring, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 48.00mm
- thermal clearance: 0.05mm
- pin-to-cap distance (measured from the center of the pin): 27.00mm
- piston pin dimensions: 14x10x38.5mm.

Available piston sizes:
- A (47.95 mm)
- B (47.96mm)
- C (47.97mm)
- +0.50mm (48.45mm)
- +1.00mm (48.95mm)
- +2.00mm (49.95mm)
