Piston Kit - Suzuki RMX 250 ('89-'00) - 250 2-stroke - ProX

Please select the piston size from the box above.

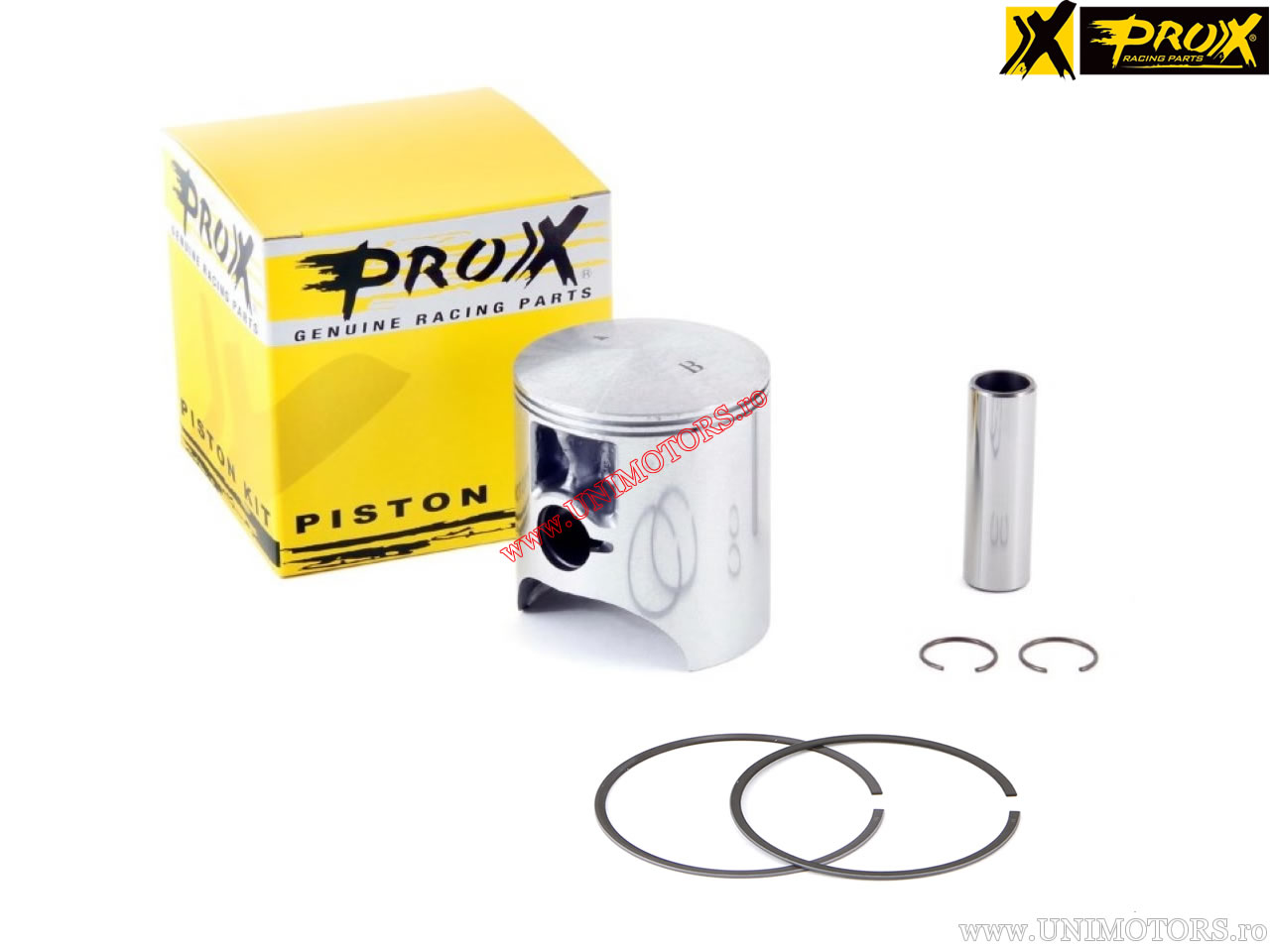

ProX piston kit for Suzuki RMX 250 manufactured between 1989-2000 - 250cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 67.00 mm
- engine type: 2-stroke
- total piston length (B): 77.50 mm
- piston pin diameter (C): 18.00 mm
- compression height (D): 28.00 mm
- pin ring position measured from center (E): 15.00 mm
- pin ring position measured from center (F): 15.00 mm
- internal distance of piston pin (G): 22.00 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- A (66.94 mm)
- B (66.95 mm)
- C (66.96 mm)
