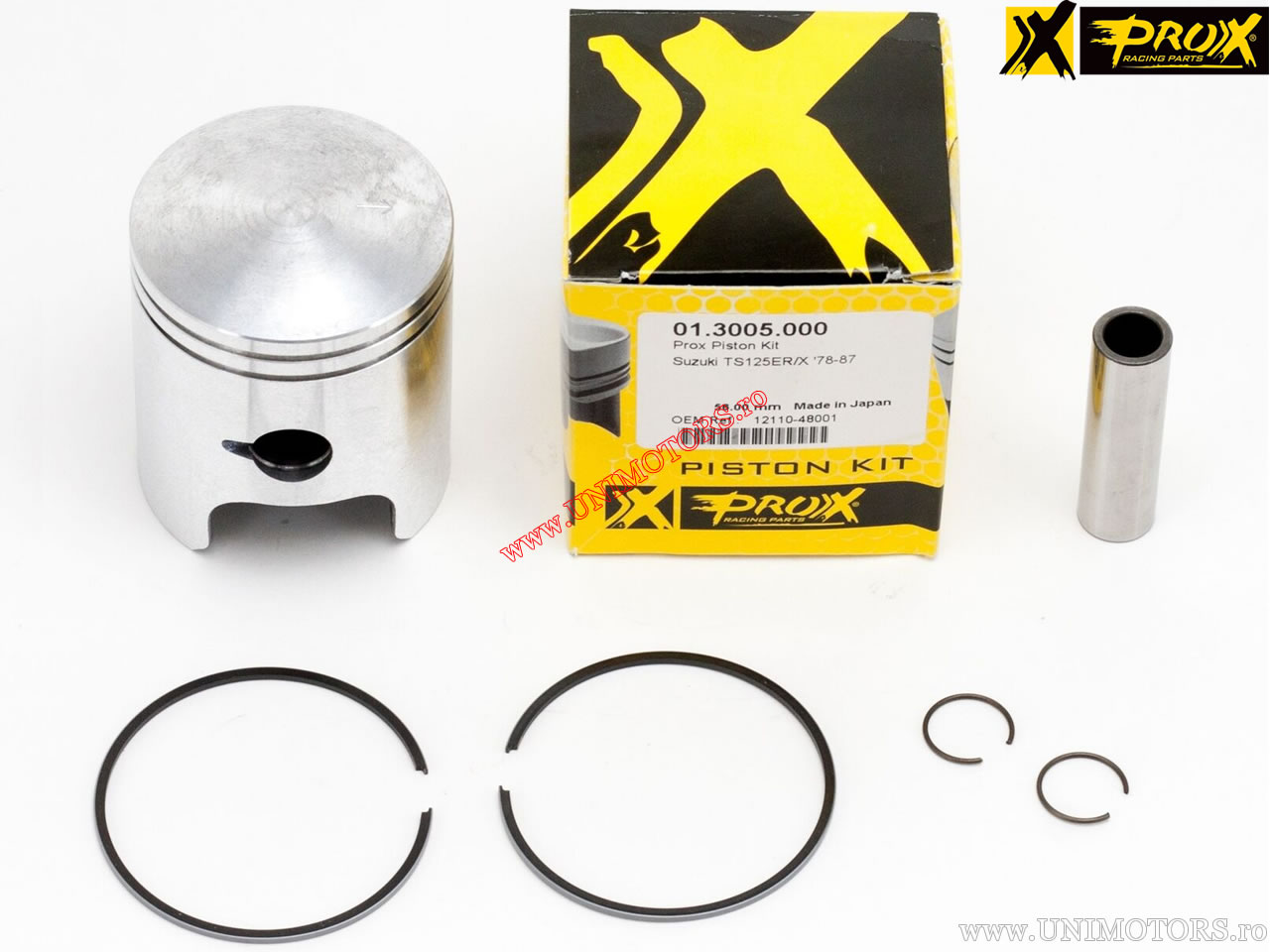

ProX piston kit for Suzuki TS 125 ER / TS 125 X (1978-1987) - 125cc 2T. The complete application list can be found below.

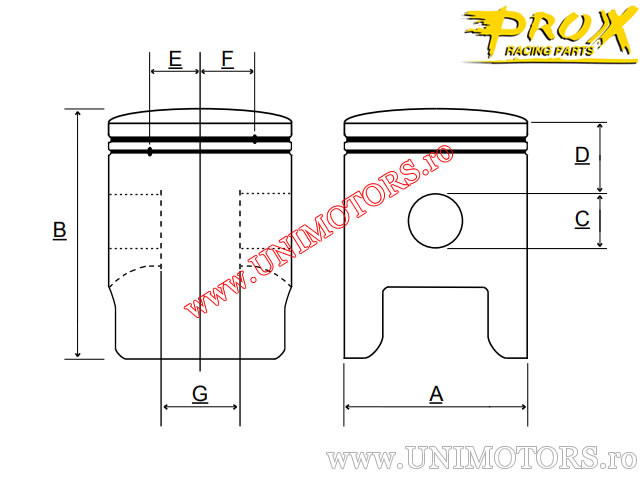

Technical specifications:
- standard cylinder diameter (factory diameter): 56.00 mm
- engine type: 2-stroke
- total piston length (B): 66.00 mm
- piston pin diameter (C): 14.00 mm
- compression height (D): 21.50 mm
- pin ring position measured from center (E): 12.00 mm
- pin ring position measured from center (F): 12.00 mm
- internal distance of piston pin (G): 20.80 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- standard (56.00 mm)
- +0.25mm (56.25 mm)
- +0.50mm (56.50 mm)
- +0.75mm (56.75 mm)
- +1.00mm (57.00 mm)
- +1.25mm (57.25 mm)
- +1.50mm (57.50 mm)
