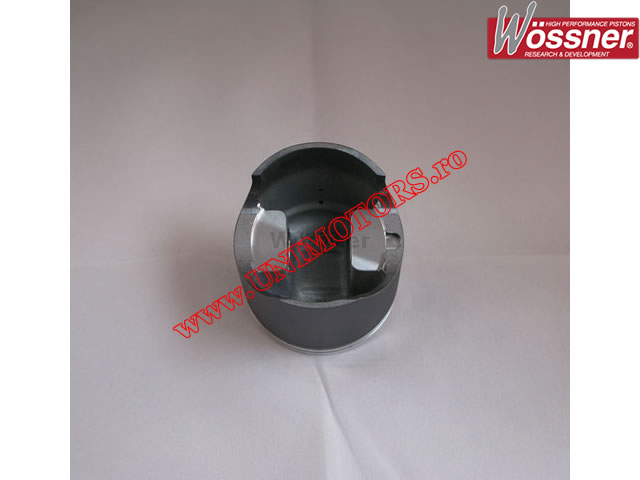

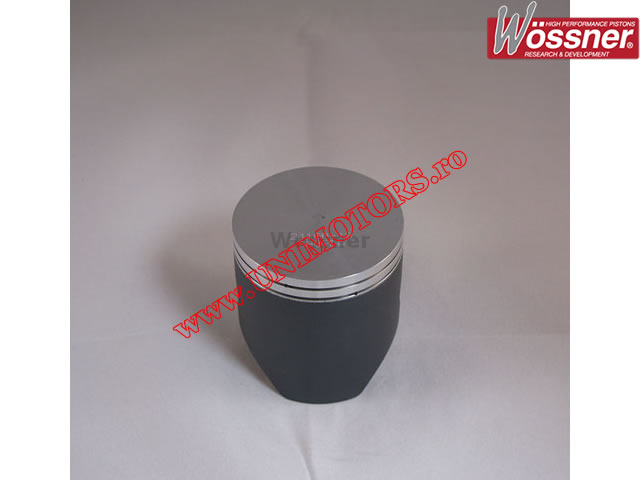

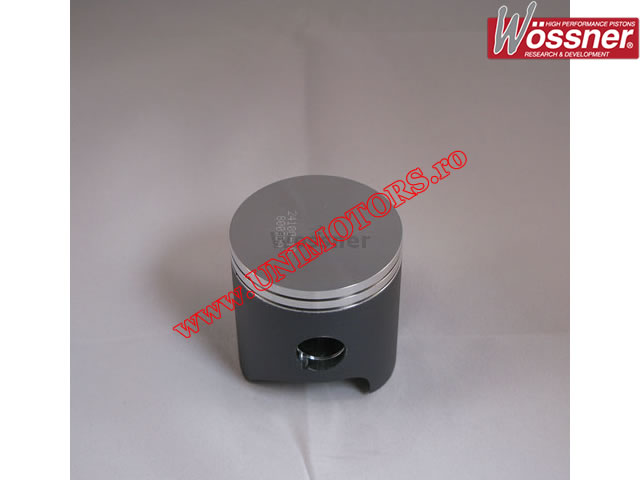

Forged piston kit Wossner for Suzuki TS 125 manufactured between 1989-1995.
The kit includes piston, rings, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 56.00mm
- thermal clearance: 0.06mm
- pin-to-cap distance (measured from the center of the pin): 28.50mm
- piston pin dimensions: 16x10x45mm.
Available piston sizes:
- standard (55.94 mm)
- +0.50mm
- +1.00mm
- +1.50mm
- +2.00mm
