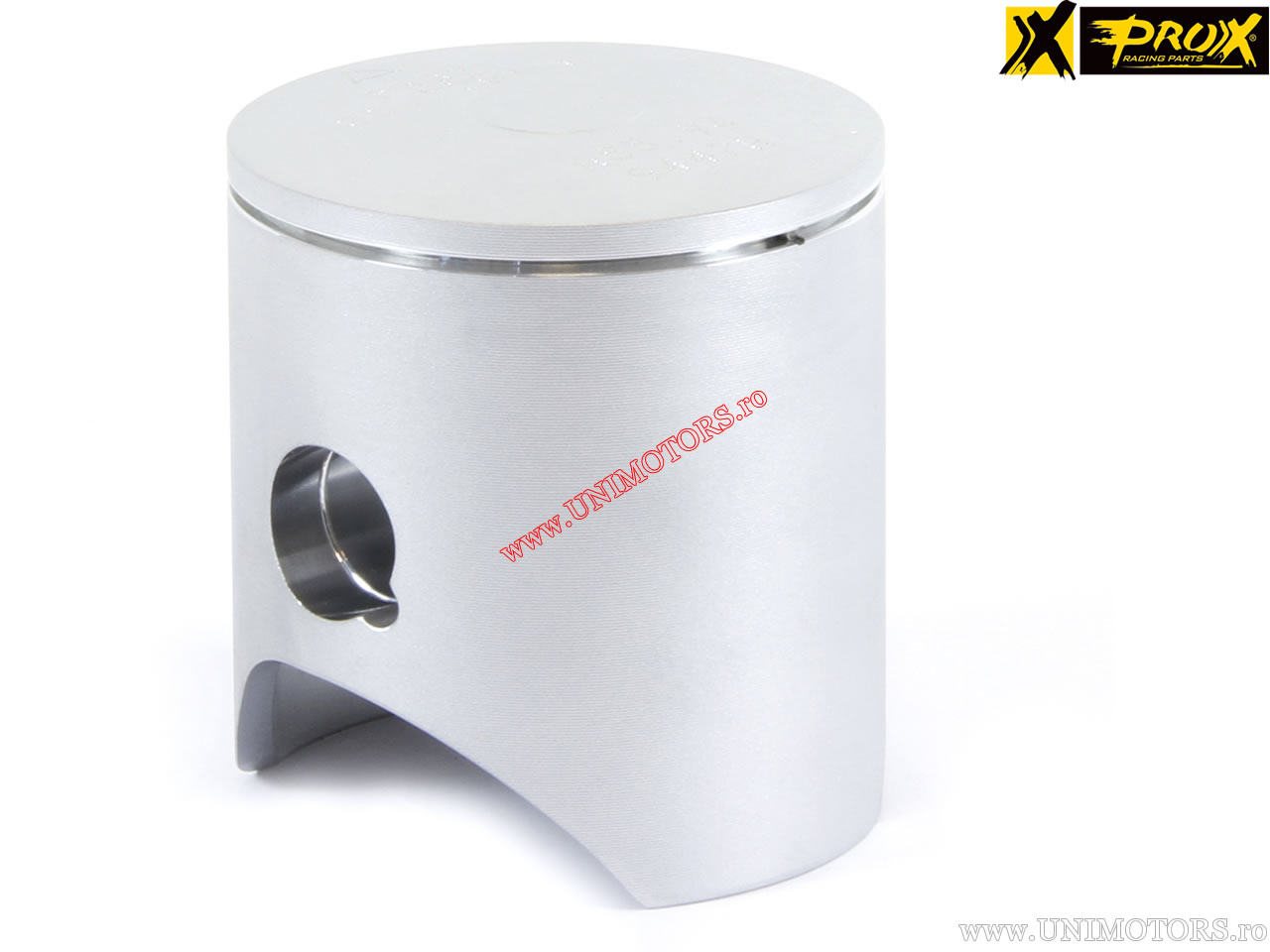

Piston Kit - TM Racing MX 144 / EN 144 ('08-'19) - 144 2T - ProX

Please select the piston size from the box above.

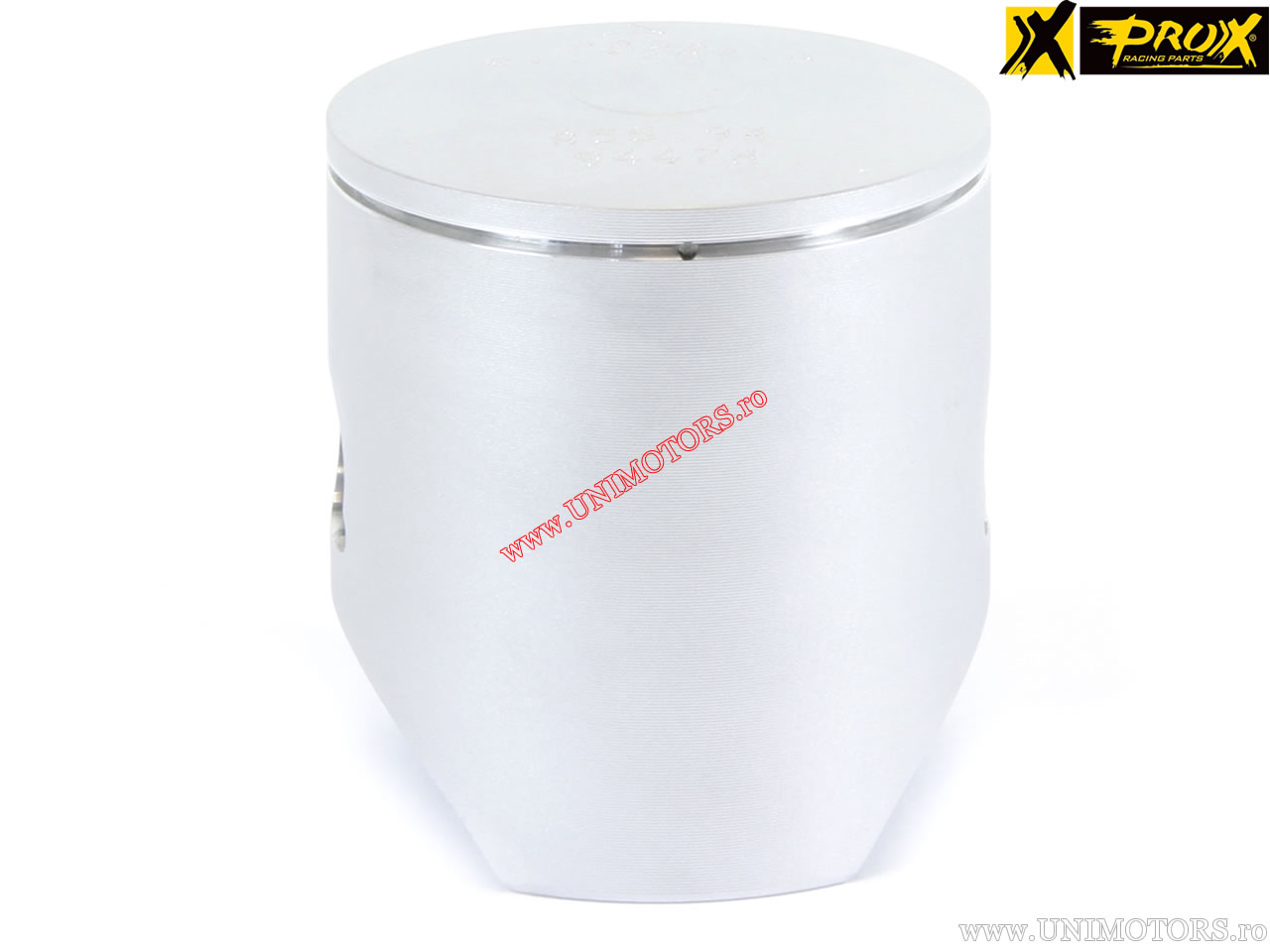

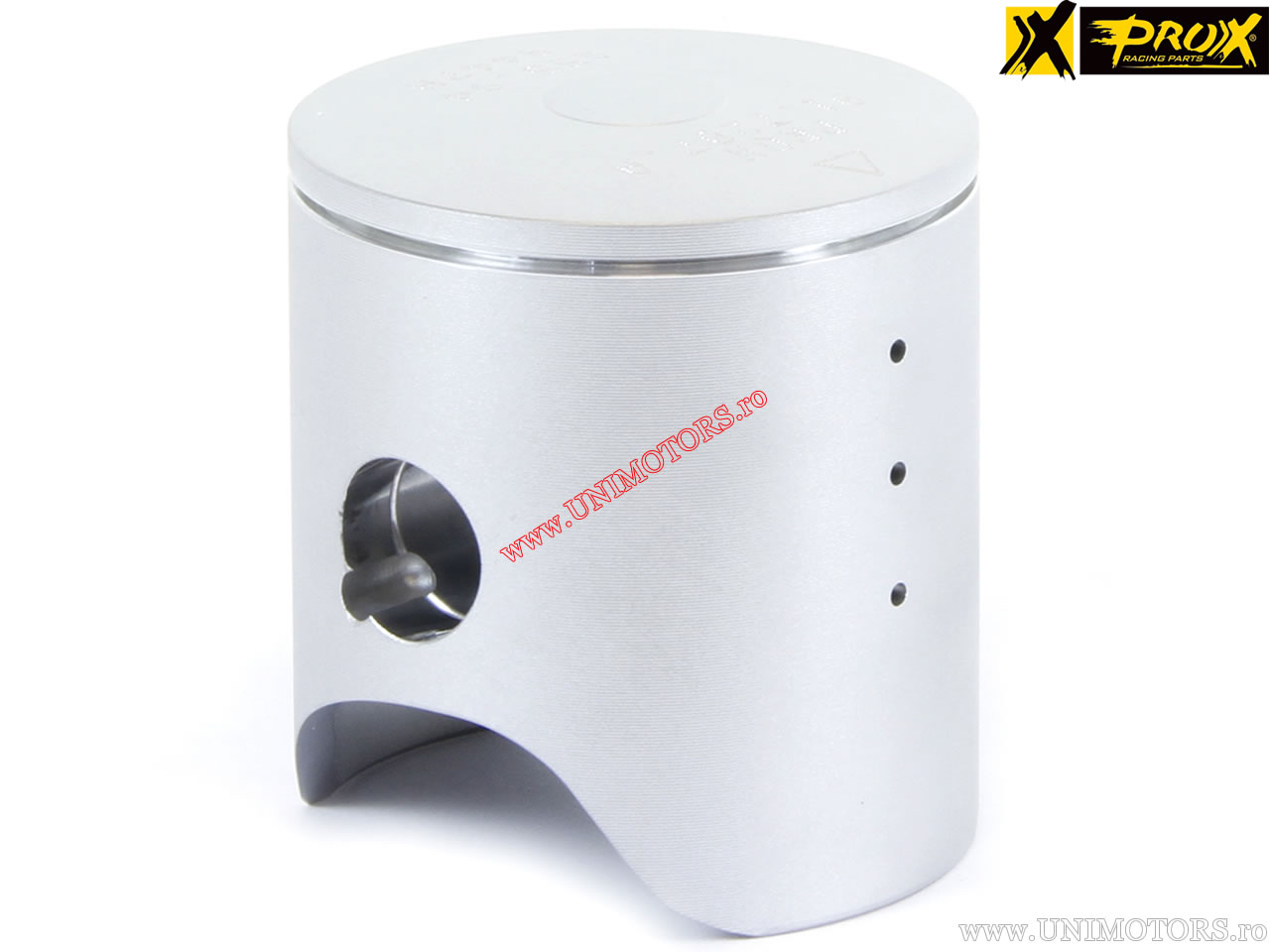

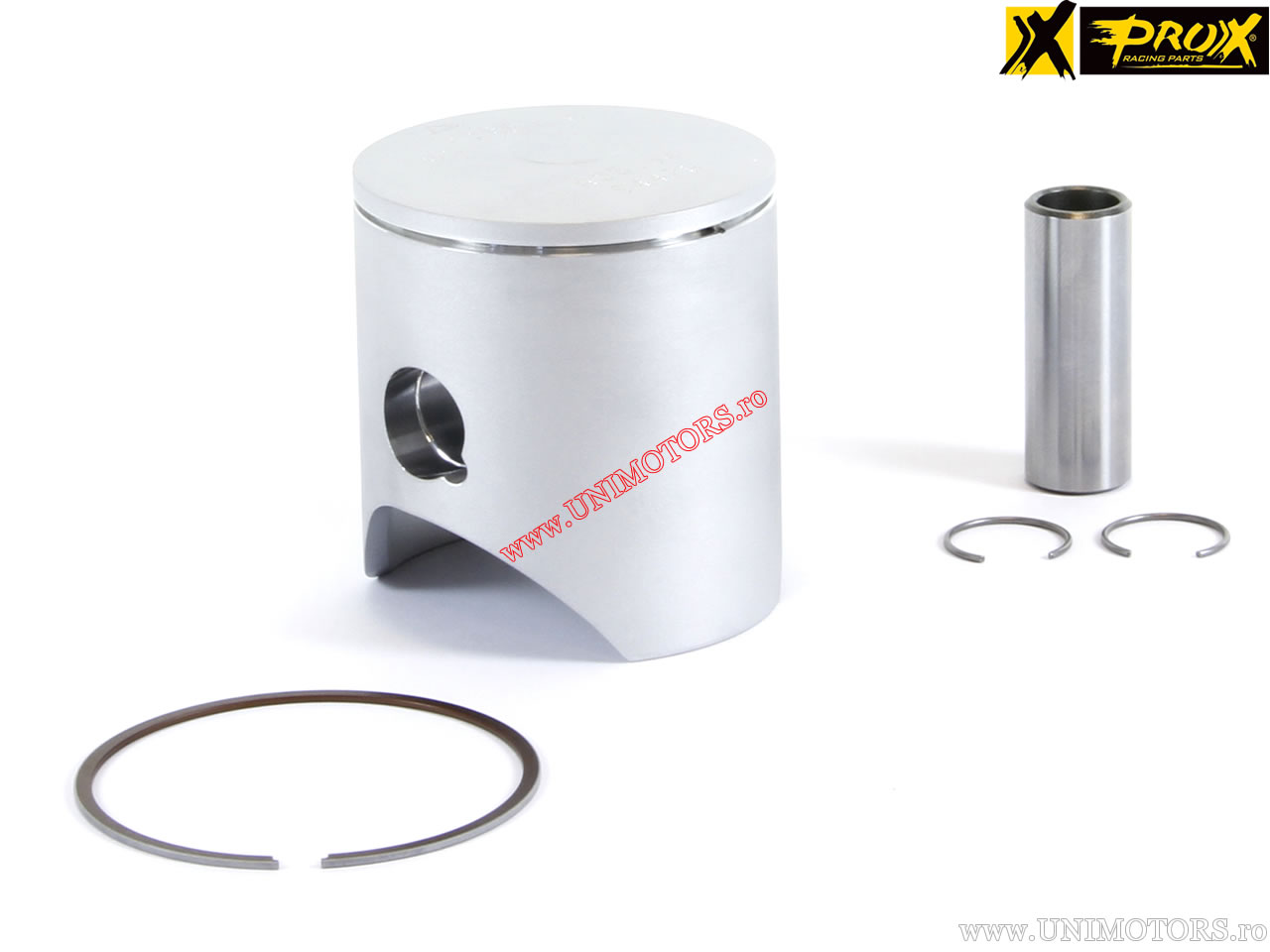

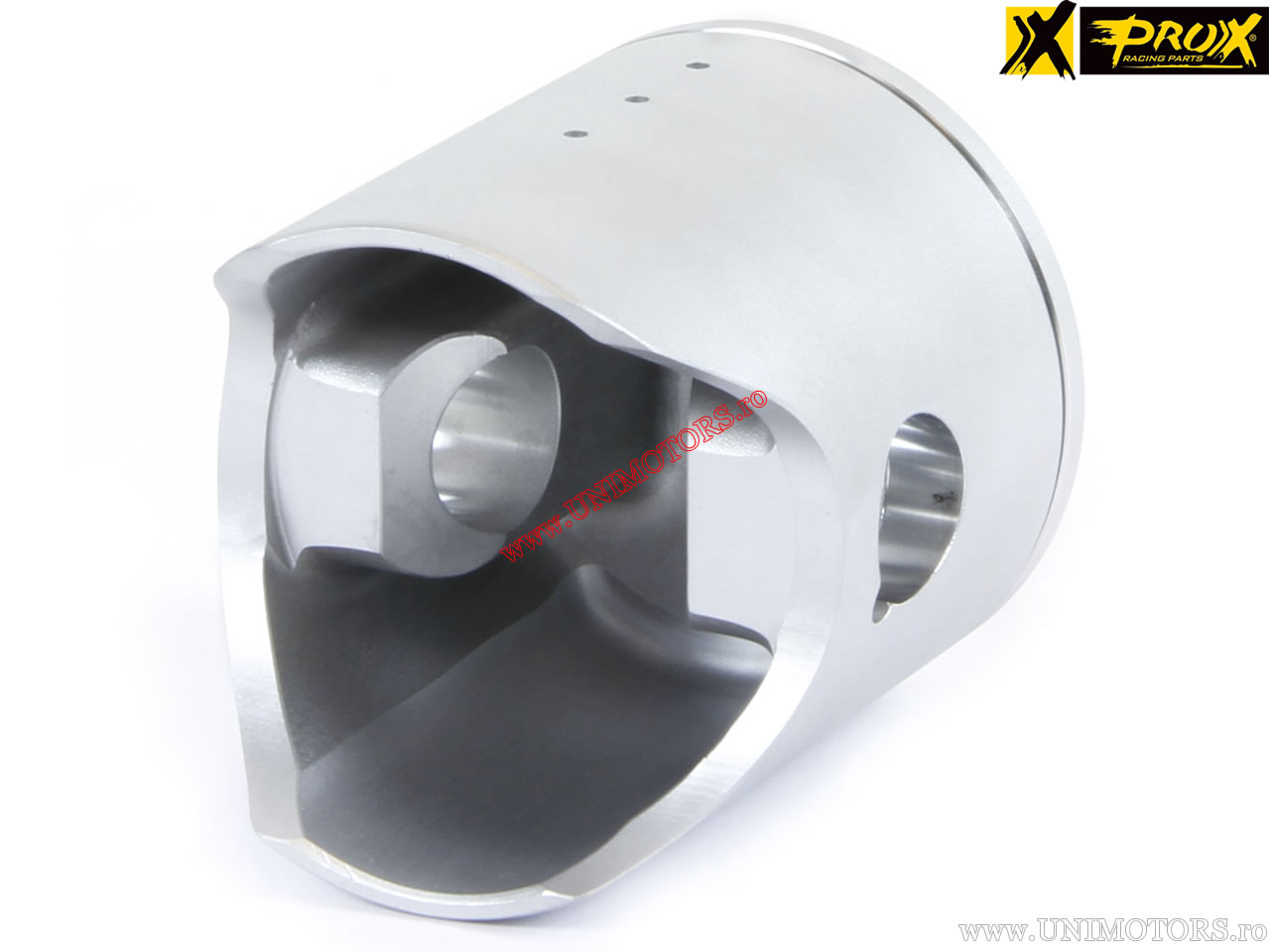

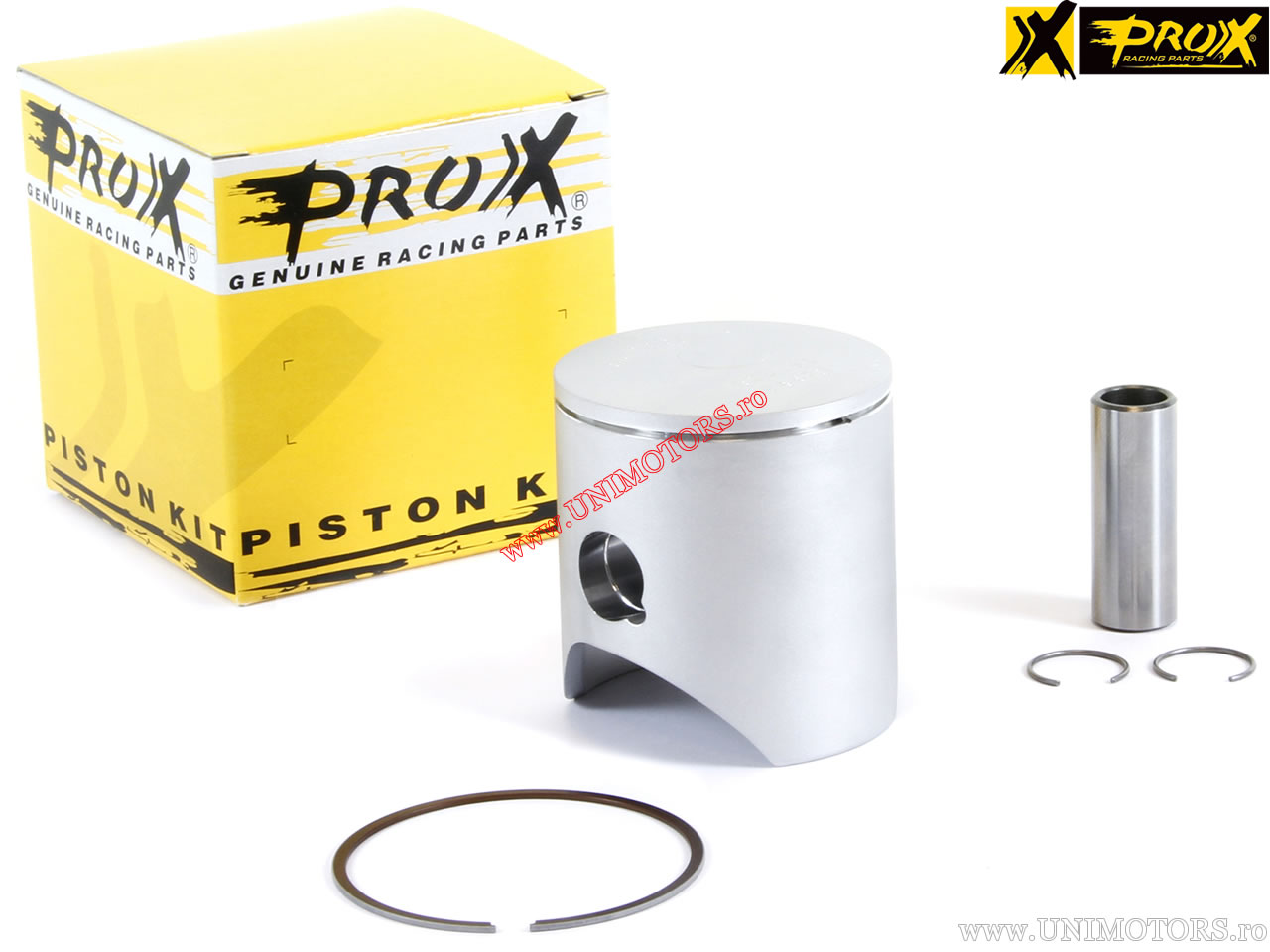

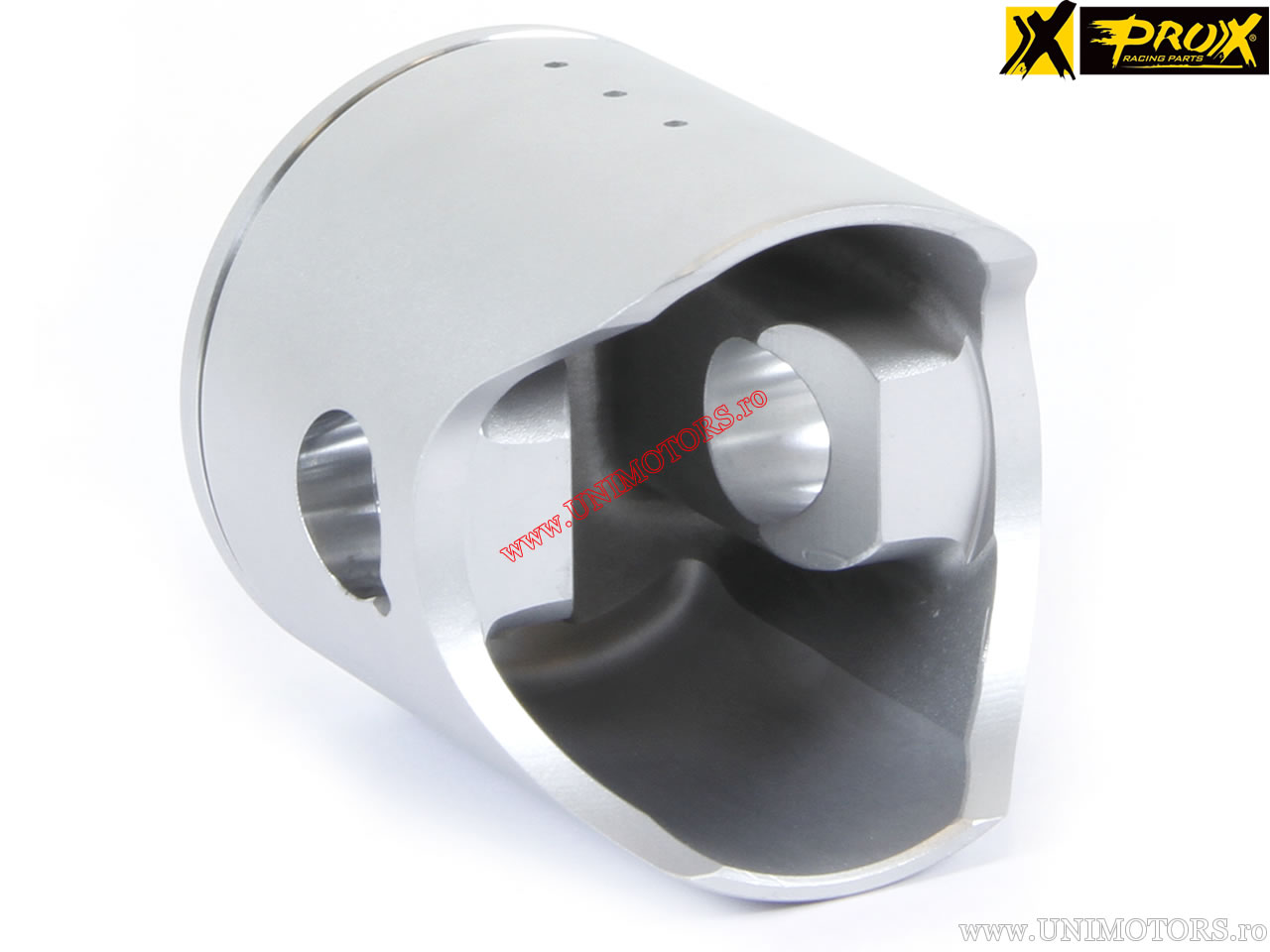

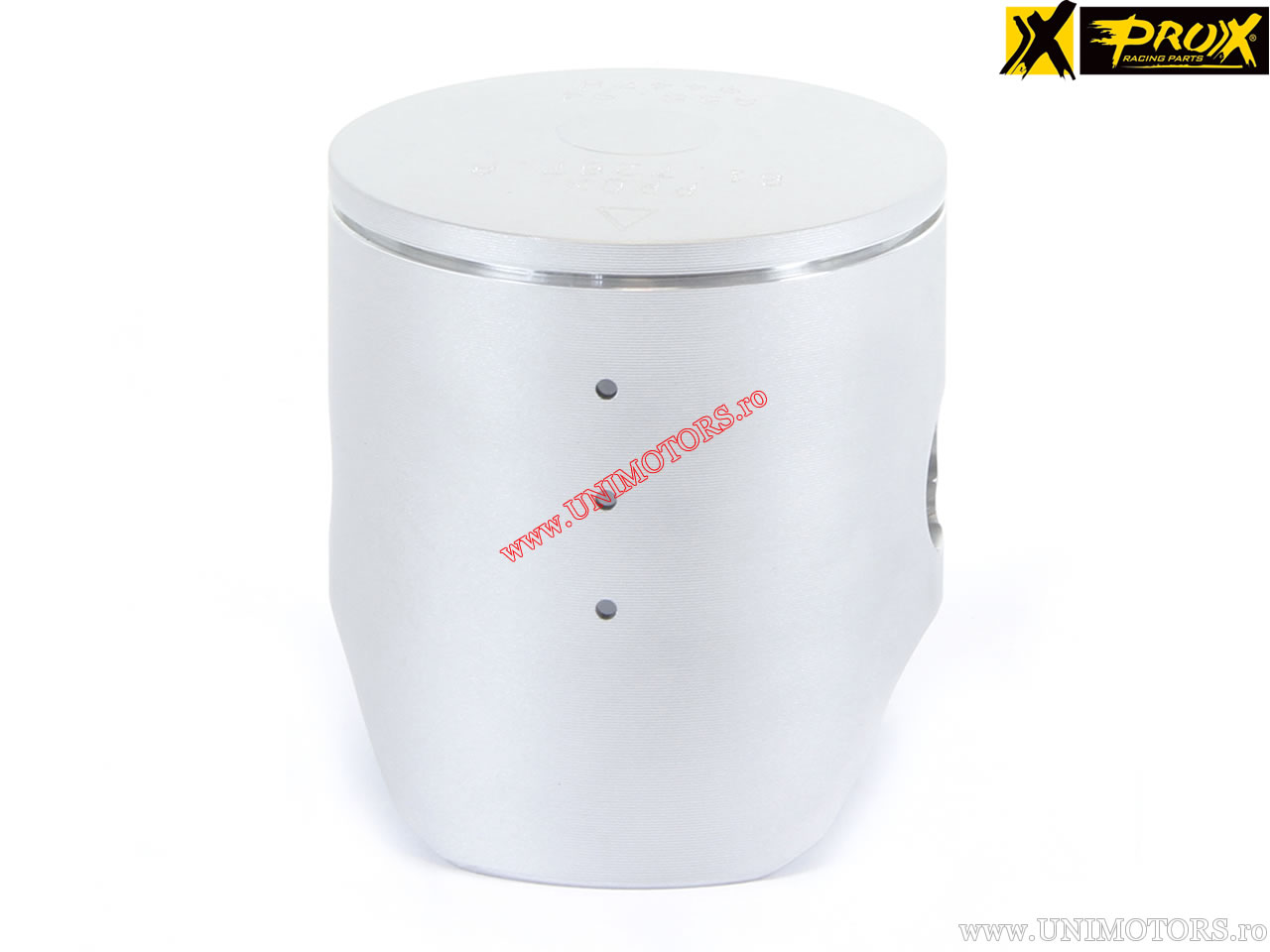

ProX piston kit for TM Moto MX 144 / EN 144 (2008-2019) - 144cc 2T. The complete application list can be found below.

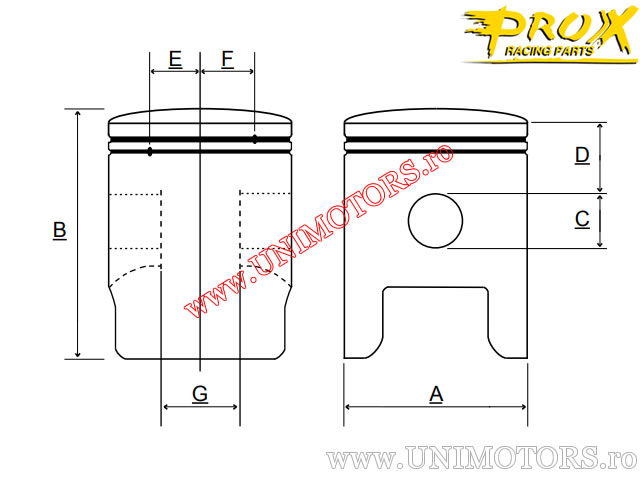

Technical specifications:
- standard cylinder diameter (factory diameter): 56.00 mm
- engine type: 2-stroke
- total piston length (B): 62.40 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 21.50 mm
- pin ring position measured from center (E): 0.00 mm
- pin ring position measured from center (F):
- internal distance of piston pin (G): 17.70 mm
- piston head shape: domed
- other information:
- manufacturing technology: forged piston

Available piston sizes (A):
- A (55.94 mm)
- B (55.95 mm)
- C (55.96 mm)
